Waveform 8
WARNING: This page is about a different variant/trim than selected.

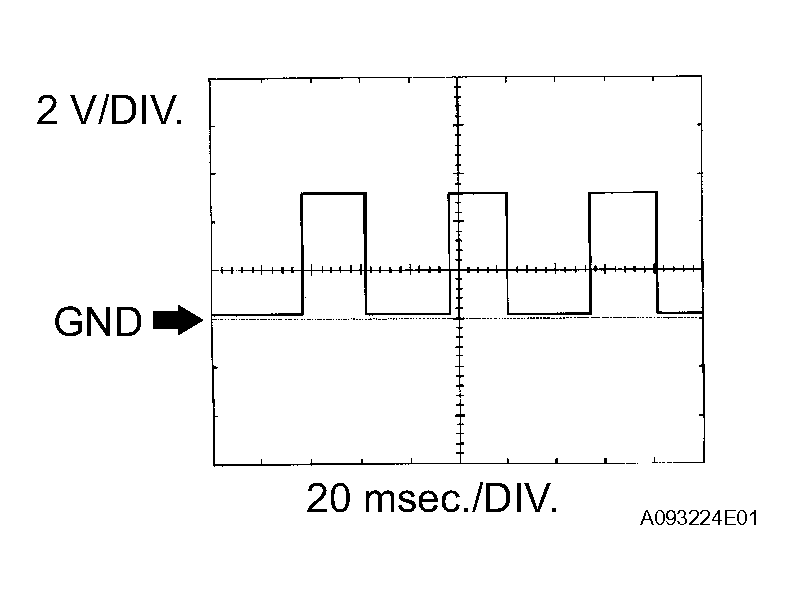

Vehicle Speed Signal
REFERENCE WAVEFORM 8
| Symbol (Terminal No.) |
Between SPD and E1 |
| Tester Range |
2 V/DIV., 20 msec./DIV. |
| Condition |
Driving at 20 km/h (12 mph) |
HINT:
The wavelength becomes shorter as the vehicle speed increases.
