Waveform 9
WARNING: This page is about a different variant/trim than selected.

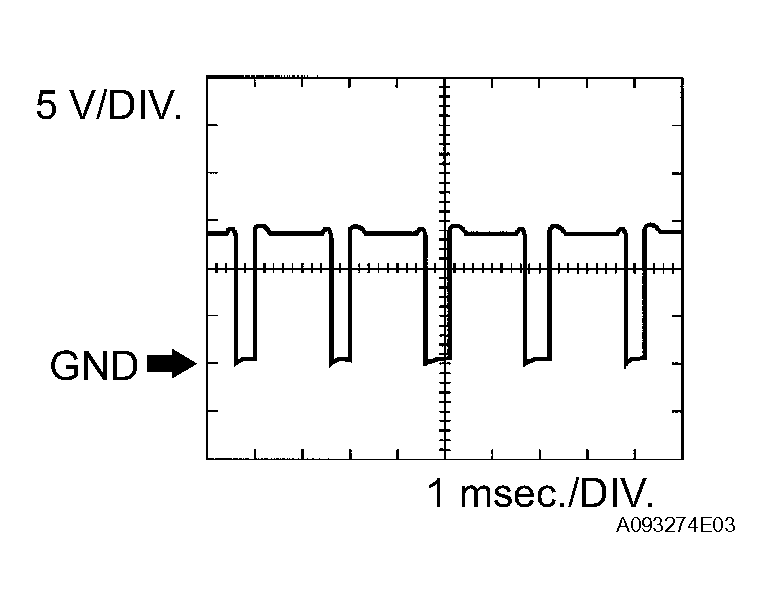

Throttle Actuator Positive Terminal
REFERENCE WAVEFORM 9
| Symbol (Terminal No.) |
Between M+ and ME01 |
| Tester Range |
5 V/DIV., 1 msec./DIV. |
| Condition |
Idling with warm engine |
HINT:
The duty ratio varies depending on the throttle actuator operation.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
