Engine Coolant Temperature Sensor: Installation

INSTALL ENGINE COOLANT TEMPERATURE SENSOR
1. Install a new gasket onto the sensor.
2. Using SST, install the sensor.
  SST 09817-33190

  Torque: 19.6 N*m (200 kgf*cm, 14 ft.*lbf)

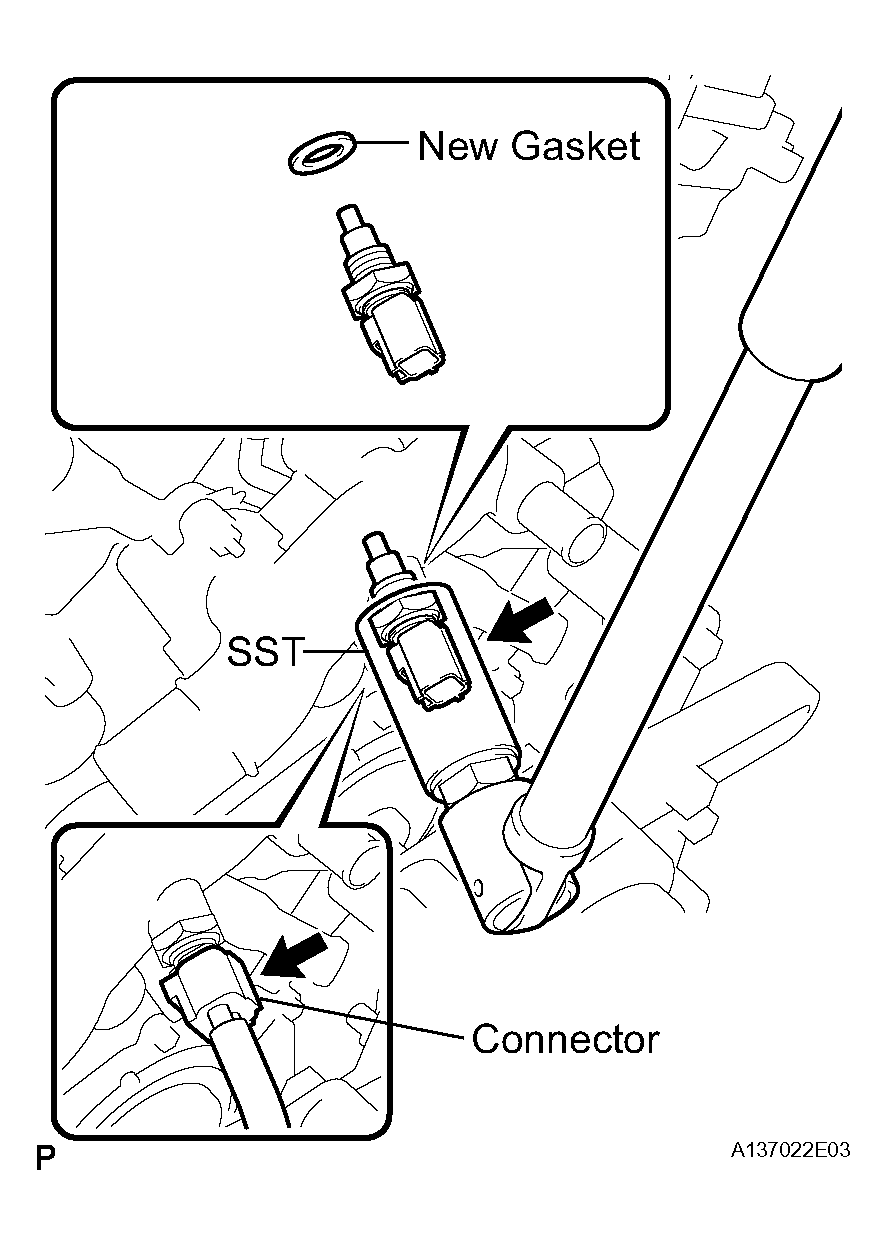

  Fig 1: Installing Engine Coolant Temperature Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the sensor connector.
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
ADD ENGINE COOLANT (See appropriate step(s) under COOLANT ).
CHECK FOR COOLANT LEAKS (See ON-VEHICLE INSPECTION )
