Knock Sensor: Components

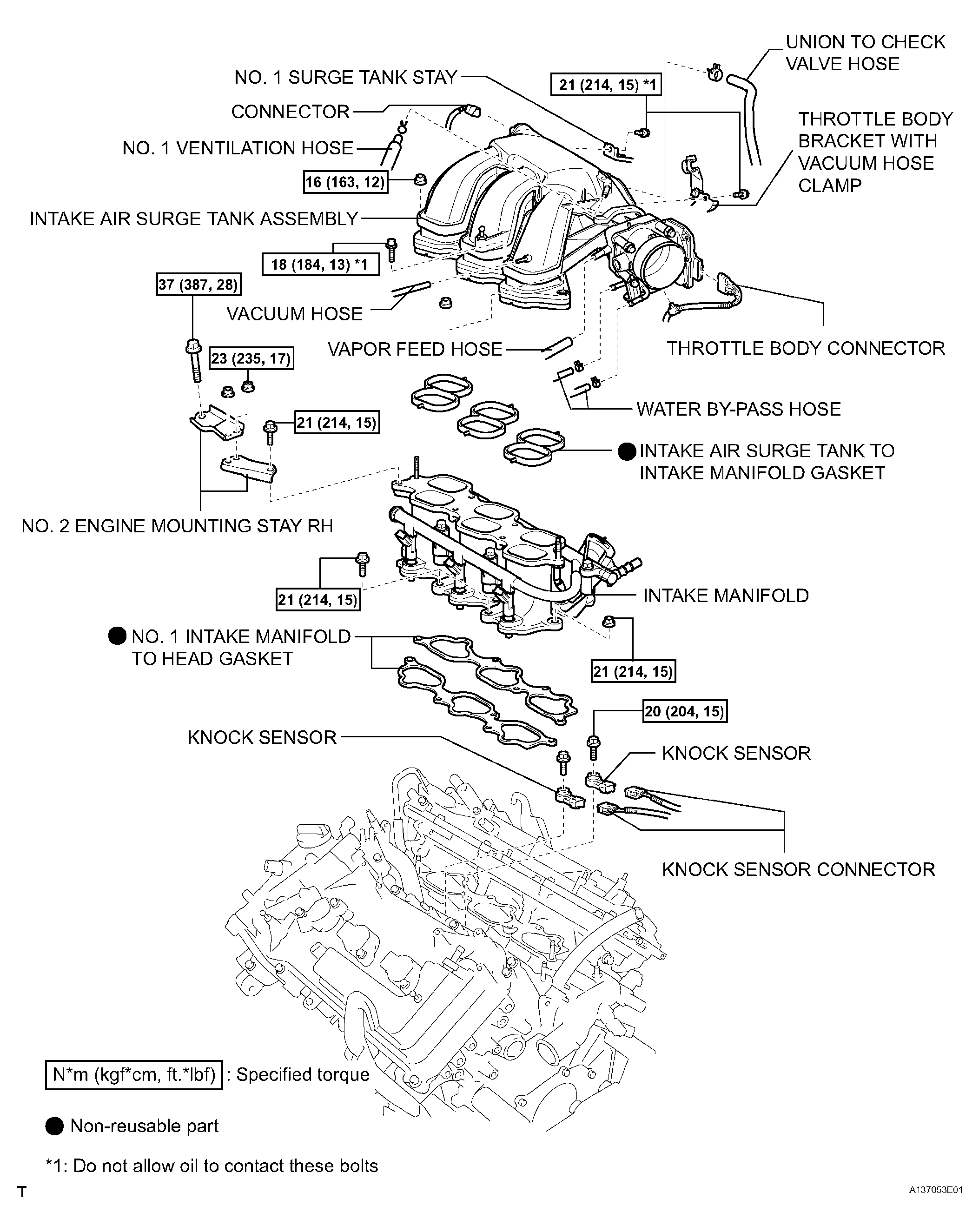

Fig 1: Knock Sensor Replacement Components With Torque Specifications
G04484560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
