Knock Sensor: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
  2. REMOVE INTAKE AIR SURGE TANK ASSEMBLY (See appropriate step(s) under  REMOVAL  ).
  3. REMOVE INTAKE MANIFOLD (See appropriate step(s) under  REMOVAL  ).
  4. REMOVE KNOCK SENSOR
    1. Disconnect the 2 sensor connectors.
    2. Remove the 2 bolts and 2 sensors.

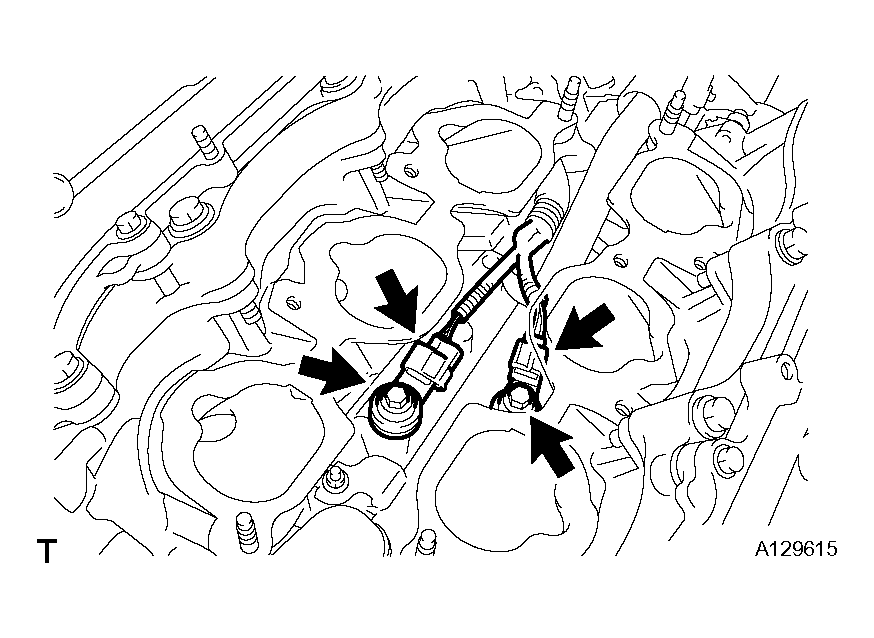

      Fig 1: Removing Knock Sensor
      G04484561Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
