SFI System: Installation

  1. INSTALL MASS AIR FLOW METER
    1. Install the mass air flow meter with the 2 screws.
      NOTE: Make sure that the O-ring is not cracked or jammed when installing it.

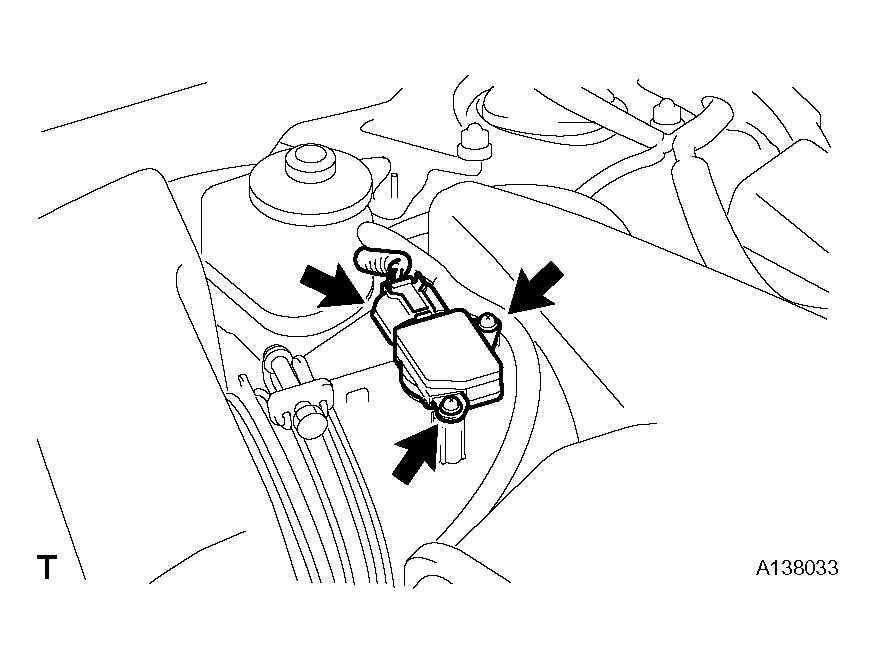

      Fig 1: Installing Mass Air Flow Meter
      G04484530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the mass air flow meter connector.
  2. CONNECT CABLE TO BATTERY NEGATIVE TERMINAL
