Crankshaft Position Sensor: Installation

  1. INSTALL CRANKSHAFT POSITION SENSOR
    1. Install the crankshaft position sensor with the bolt.

      Torque: 6.5 N*m (65 kgf*cm, 58 in.*lbf)

    2. Connect the crankshaft position sensor connector.
  2. INSTALL ENGINE UNDER COVER NO.1

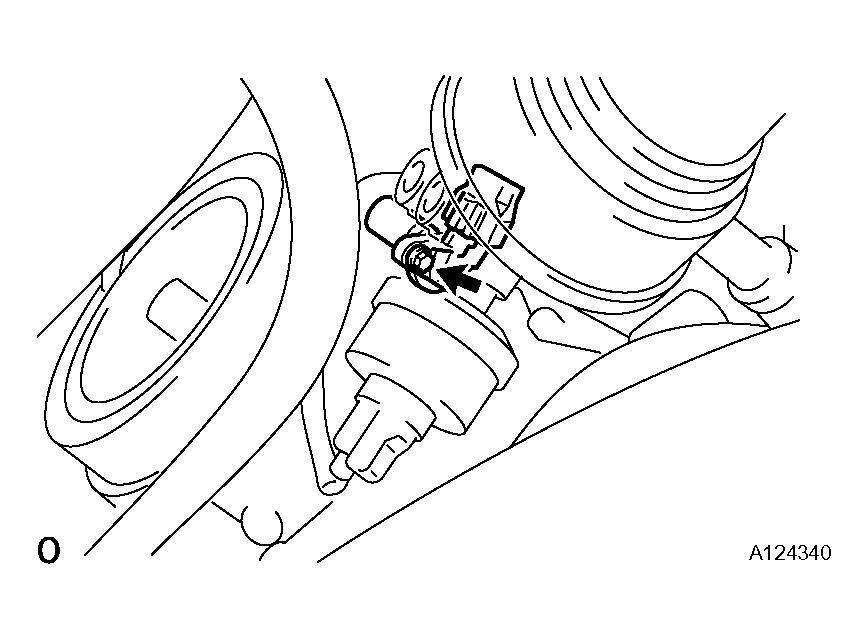

    Fig 1: Installing Crankshaft Position Sensor With Bolt
    G04507029Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
