Throttle Body: Components

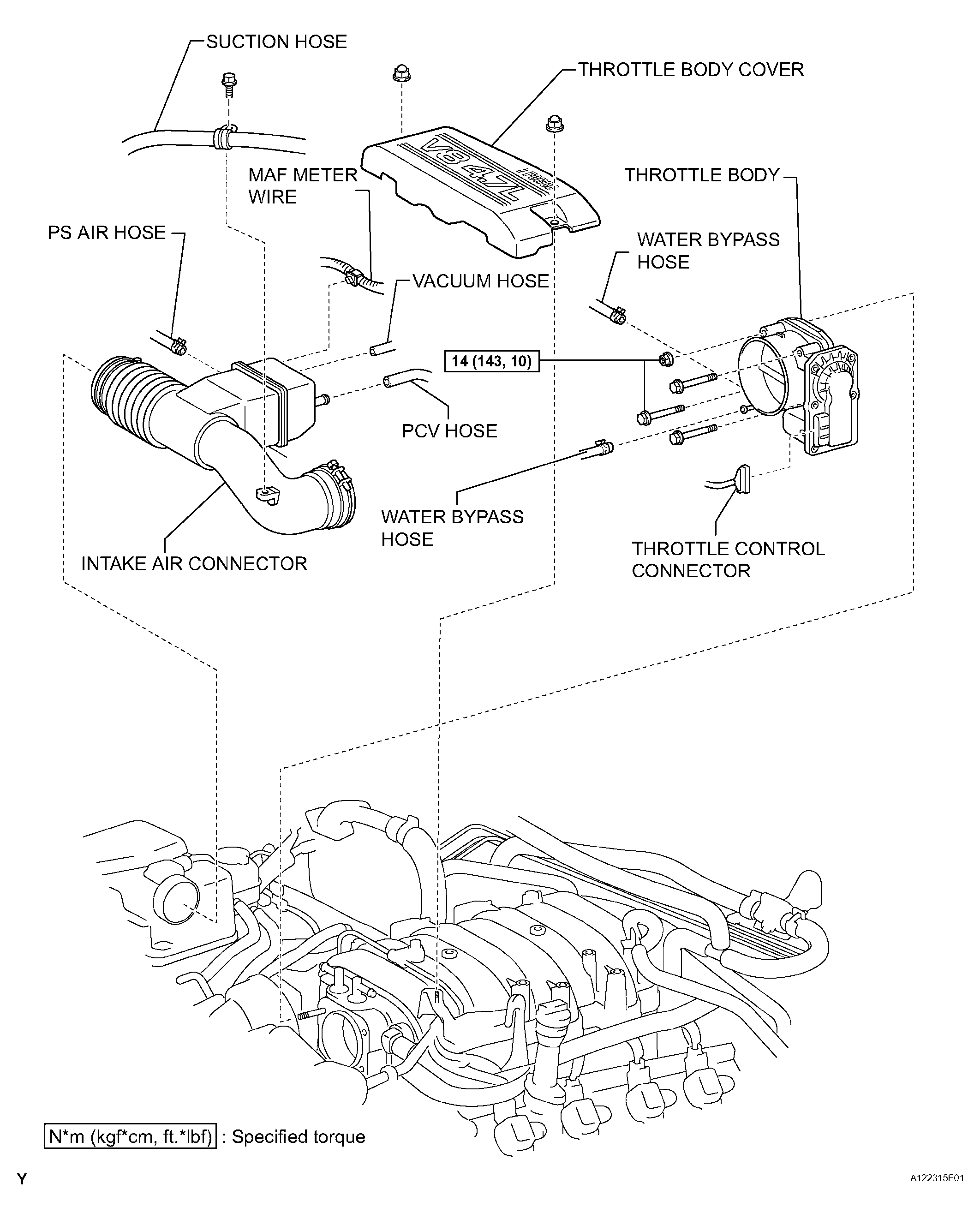

Fig 1: Throttle Body Replacement Components & Torque Specification
G04507033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
