Multiplex Communication System - BEAN Bus: Notes

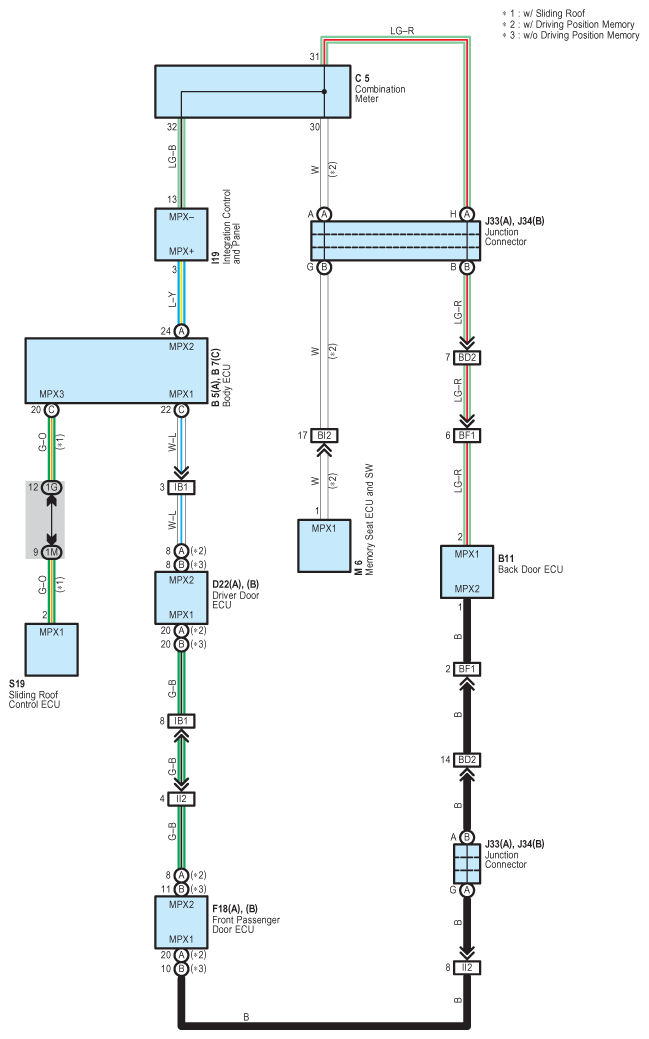

Fig 1: Multiplex Communication System (BEAN Bus) Wiring Diagram
G08789734Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
