Height Control Compressor: Components

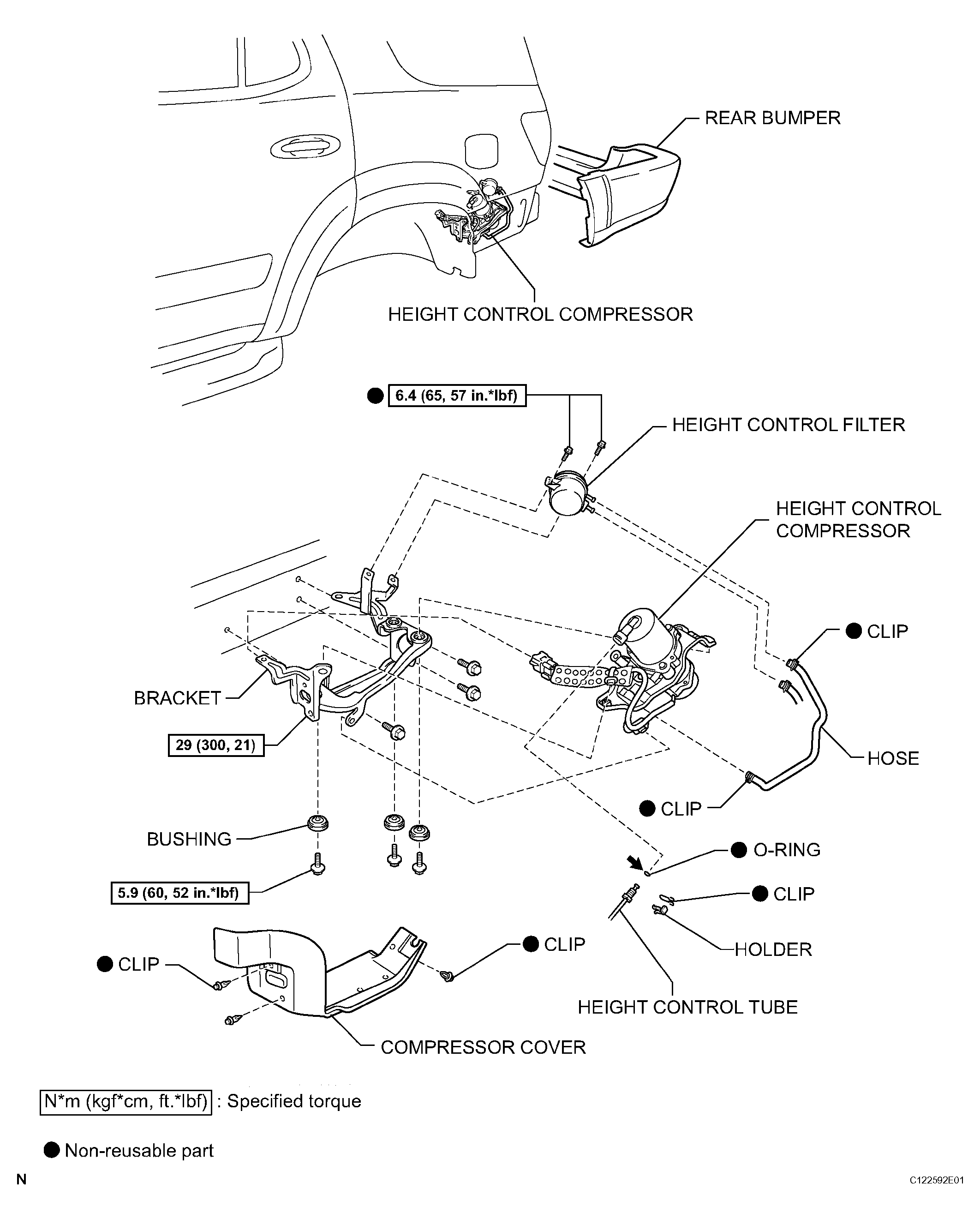

Fig 1: Height Control Compressor Replacement Components & Torque Specification
G04509232Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
