Inspection Procedure

1. Remove the ECU-IG fuse from the driver side J/B.
2. Check the continuity of ECU-IG fuse.

   Resistance: Below 1 Ω

NG: REPLACE FUSE

OK: GO TO NEXT STEP

1. Remove the distance control ECU with connector.
2. Check the continuity between terminal SGND (D2-10) and GND (D2-12) of distance control ECU and body ground.

   Resistance: Below 1 Ω

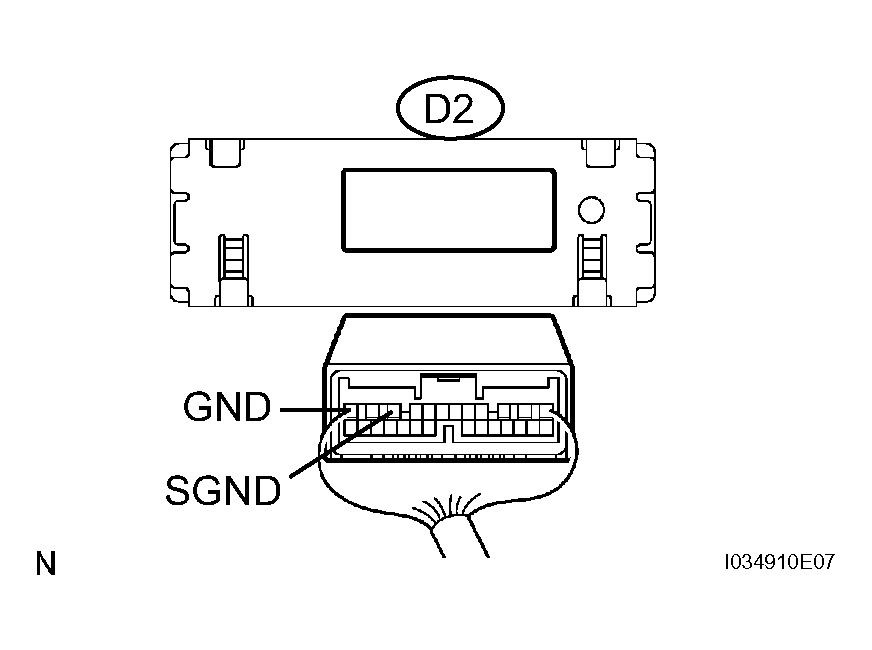

Fig 1: Checking Harness And Connector (Distance Control ECU - Body Ground)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: GO TO NEXT STEP

1. Measure the voltage between terminal B (D2-1) of distance control ECU and body ground.

   Voltage: 10 to 14 V

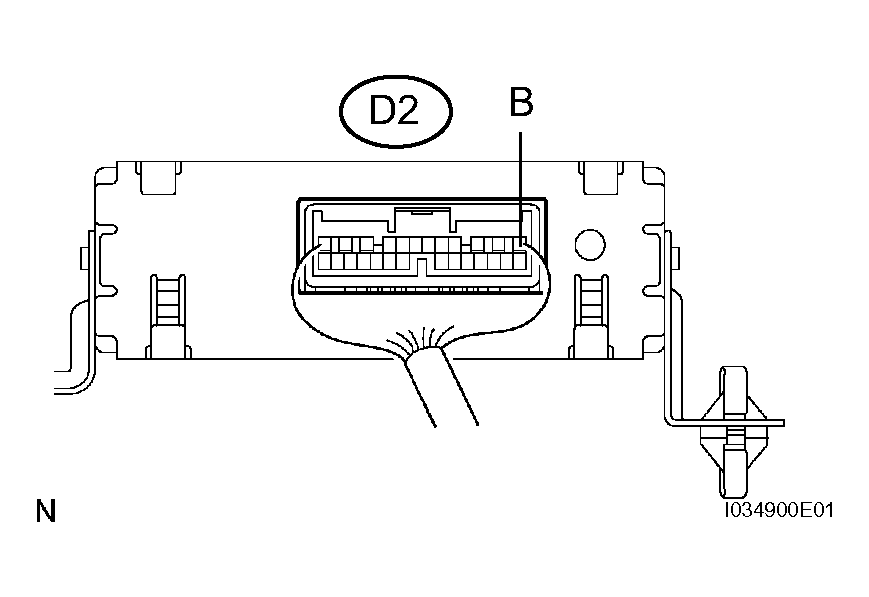

Fig 2: Checking Harness And Connector (Distance Control ECU - Battery)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
