Remote Control Mirror with Memory: Notes

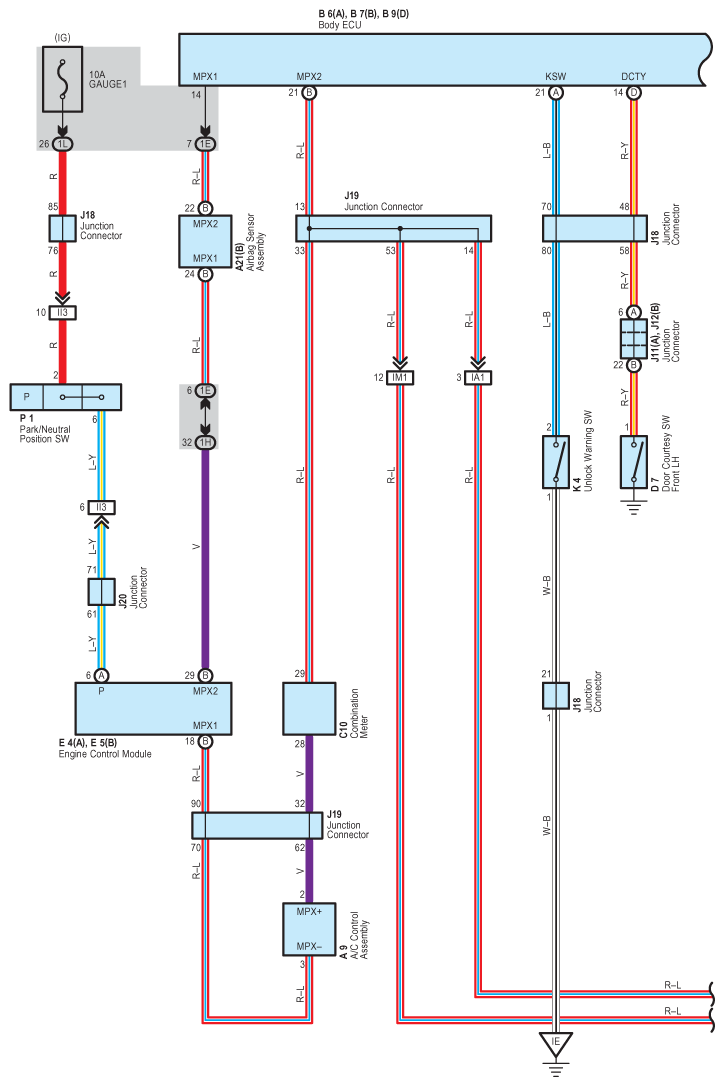

Fig 1: Remote Control Mirror System (With Memory) Wiring Diagram (1 Of 4)
G08796128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

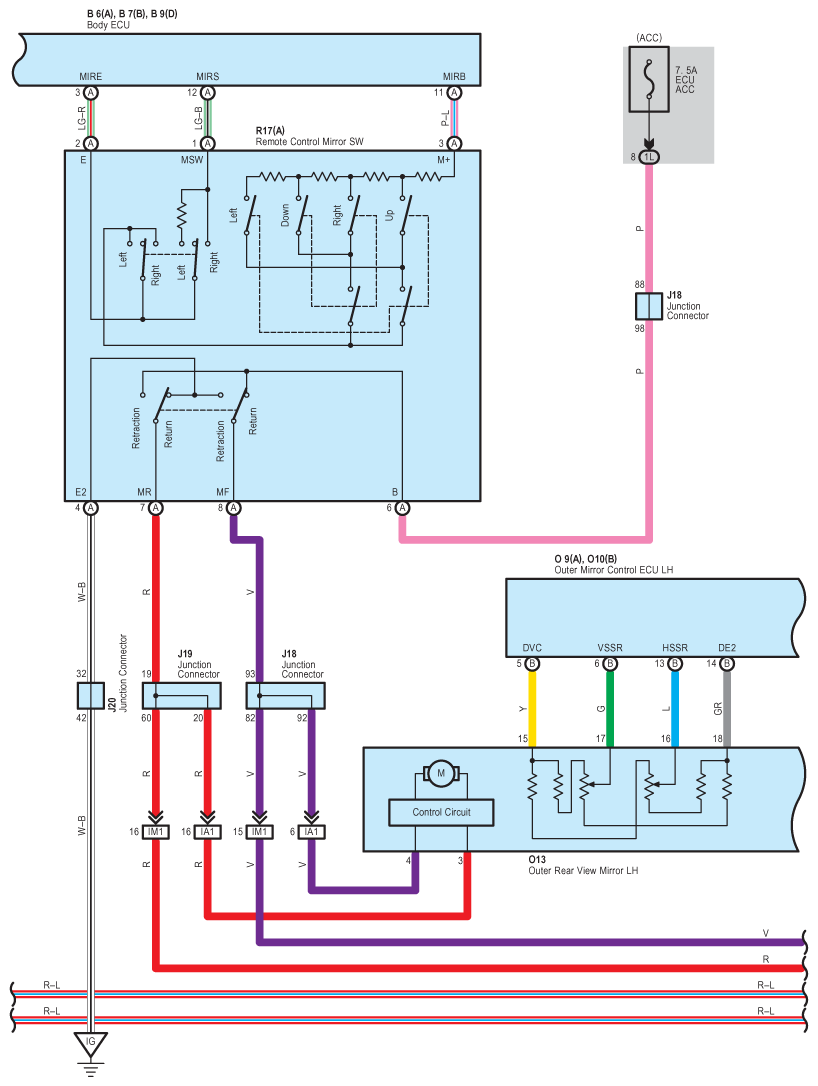

Fig 2: Remote Control Mirror System (With Memory) Wiring Diagram (2 Of 4)
G08796129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

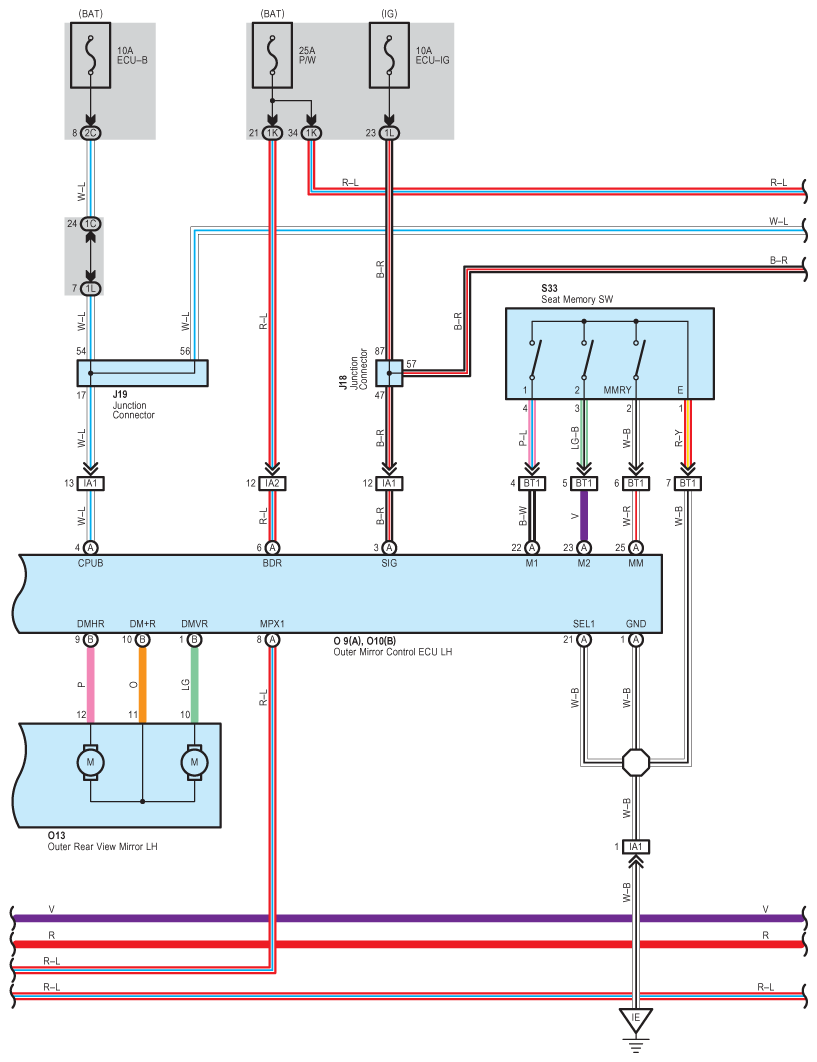

Fig 3: Remote Control Mirror System (With Memory) Wiring Diagram (3 Of 4)
G08796130Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

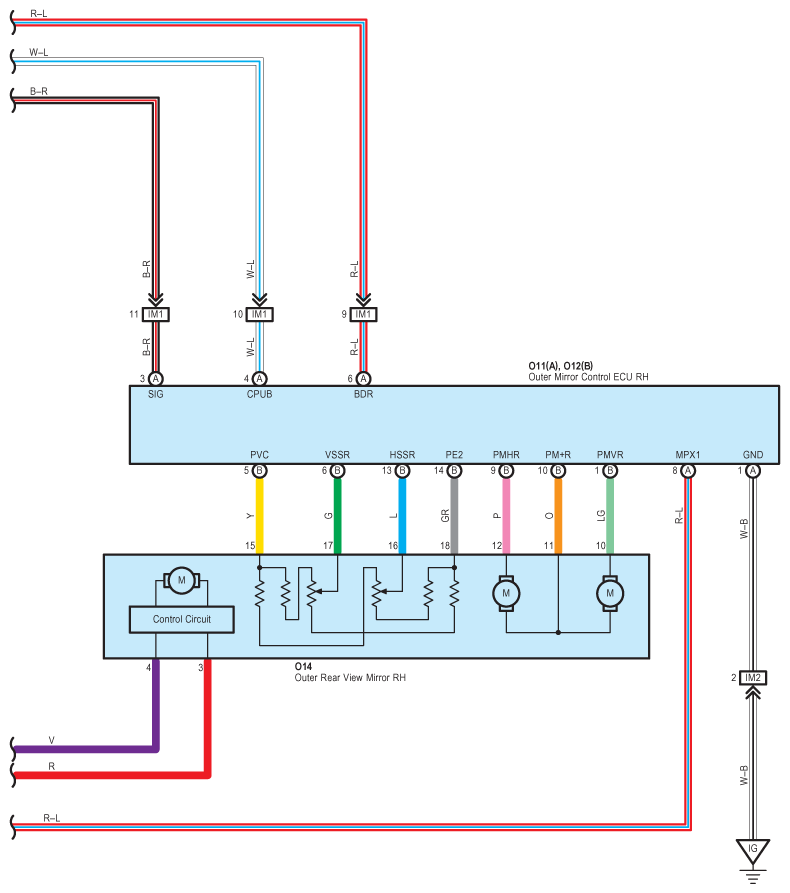

Fig 4: Remote Control Mirror System (With Memory) Wiring Diagram (4 Of 4)
G08796131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
