Steering Column Assembly: Components

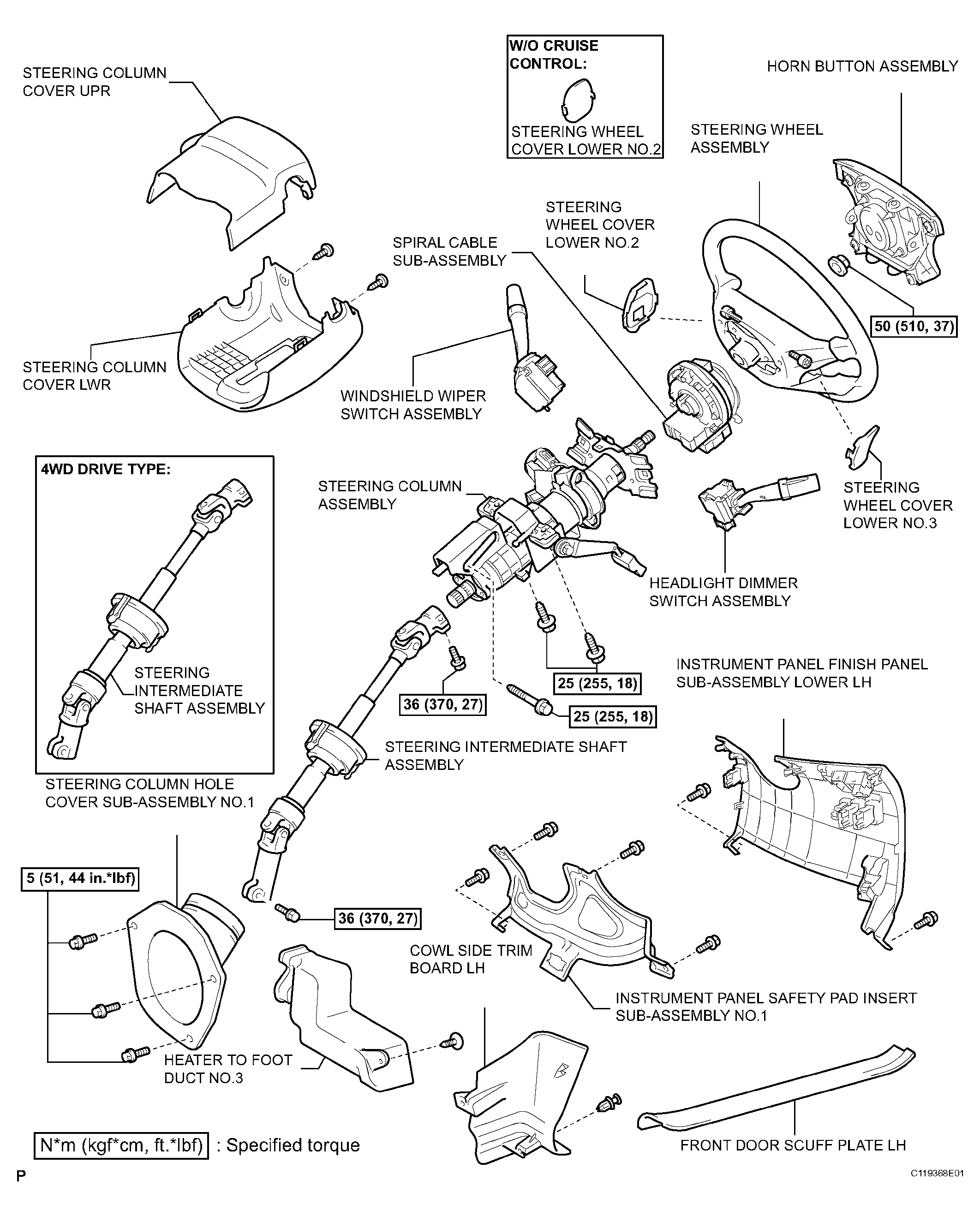

Fig 1: Identifying Steering Column Assembly Components And Replacements (1 Of 2)
G04498490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

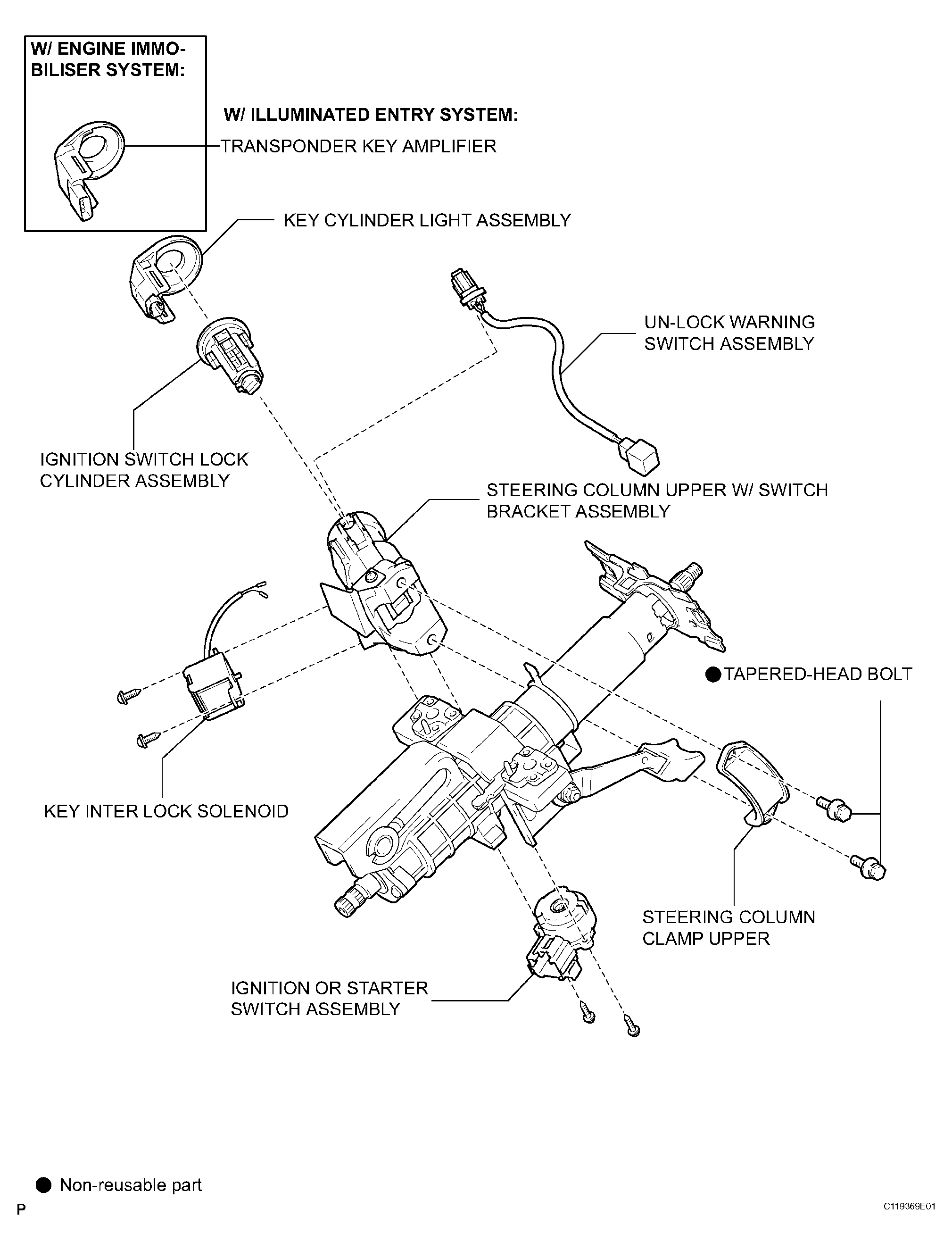

Fig 2: Identifying Steering Column Assembly Components And Replacements (2 Of 2)
G04498491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
