Distance Control Ecu: Removal

  1. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
  2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
  3. REMOVE STEREO COMPONENT AMPLIFIER ASSEMBLY (W/ STEREO COMPONENT AMPLIFIER)
  4. REMOVE DISTANCE CONTROL ECU ASSEMBLY
    1. Remove the bolt.
    2. Disengage the clip and remove the distance control ECU assembly.

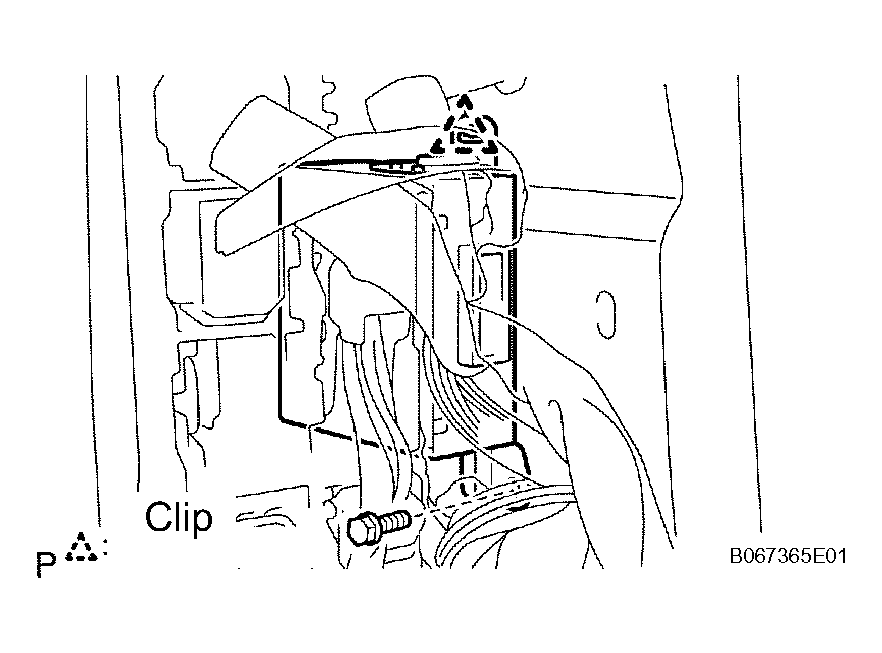

      Fig 1: Removing Distance Control ECU Assembly
      G04494832Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
