Toyota
>>
2006
>>
Sienna CE
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM System Circuits
>>
Audio System with 10 Speaker
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Audio System with 10 Speaker: Notes

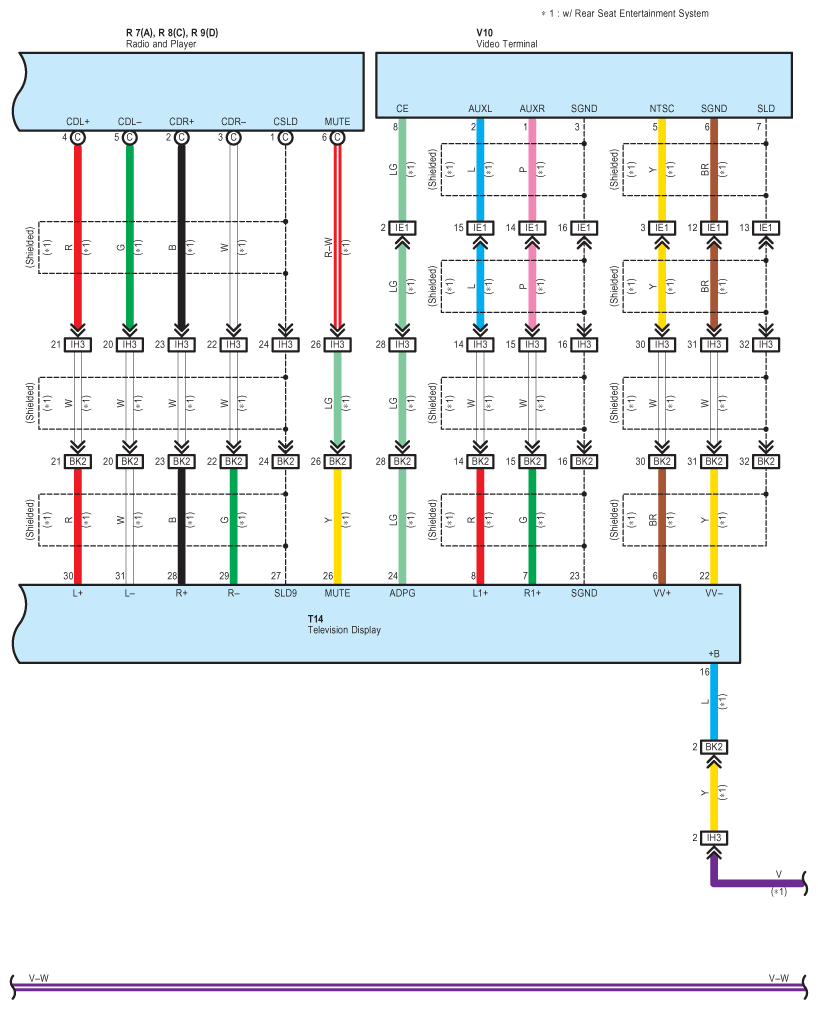

Fig 1: Audio System (With 10 Speaker) Wiring Diagram (1 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

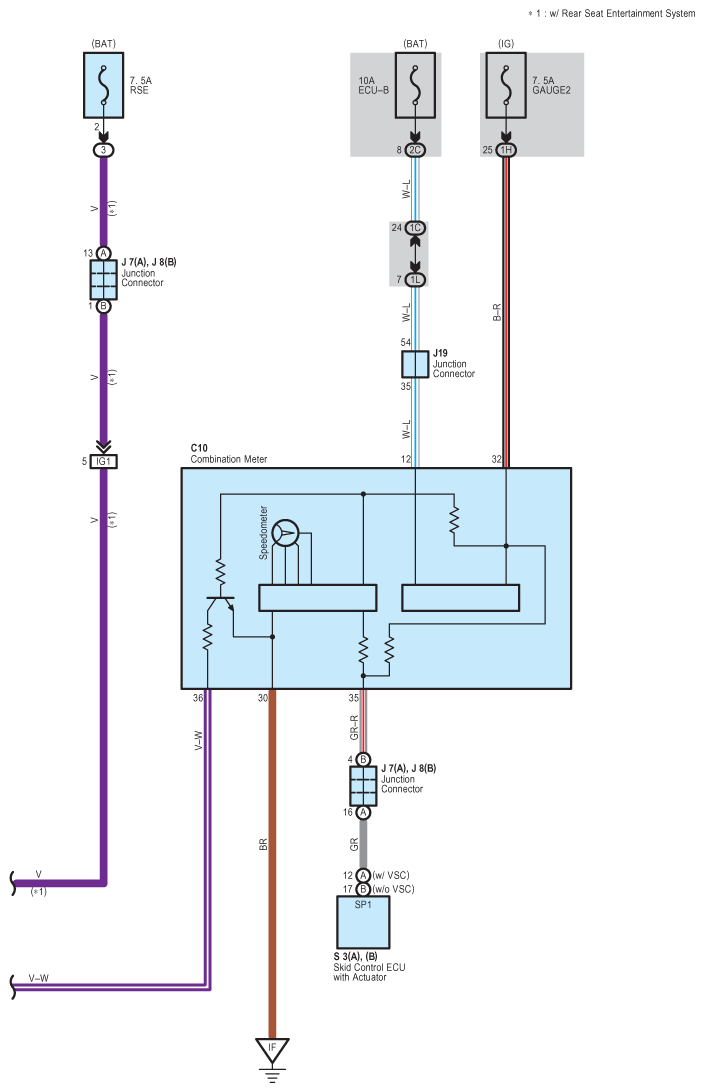

Fig 2: Audio System (With 10 Speaker) Wiring Diagram (2 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

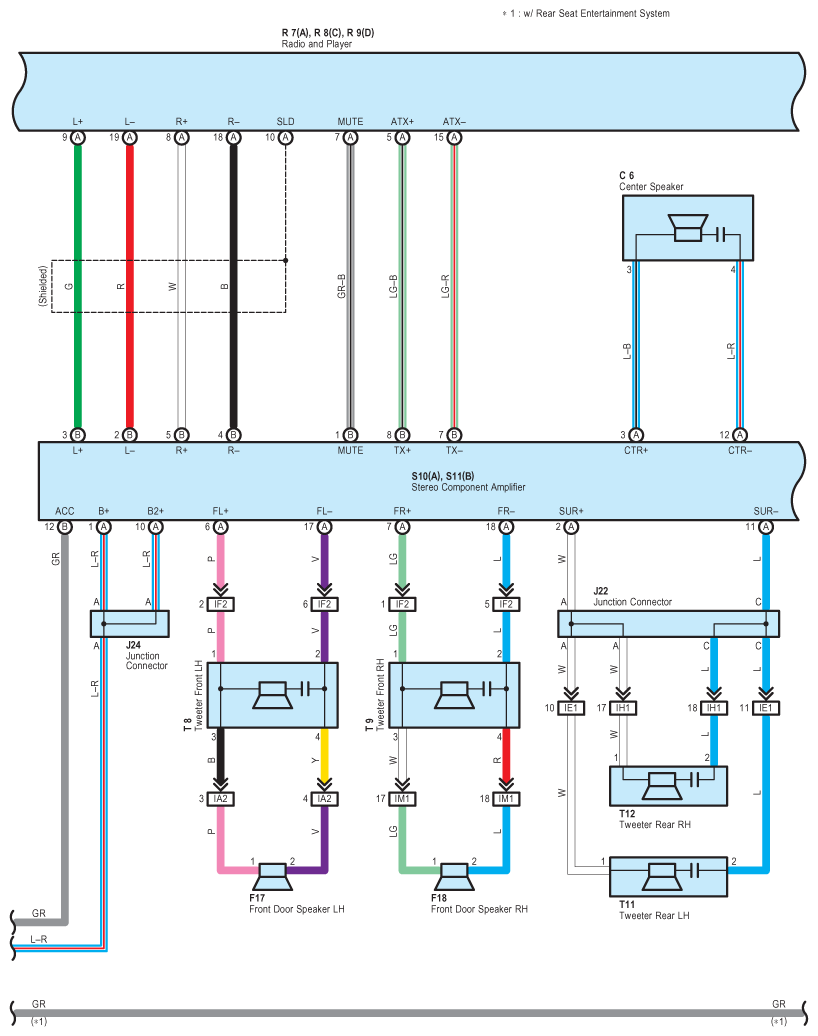

Fig 3: Audio System (With 10 Speaker) Wiring Diagram (3 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

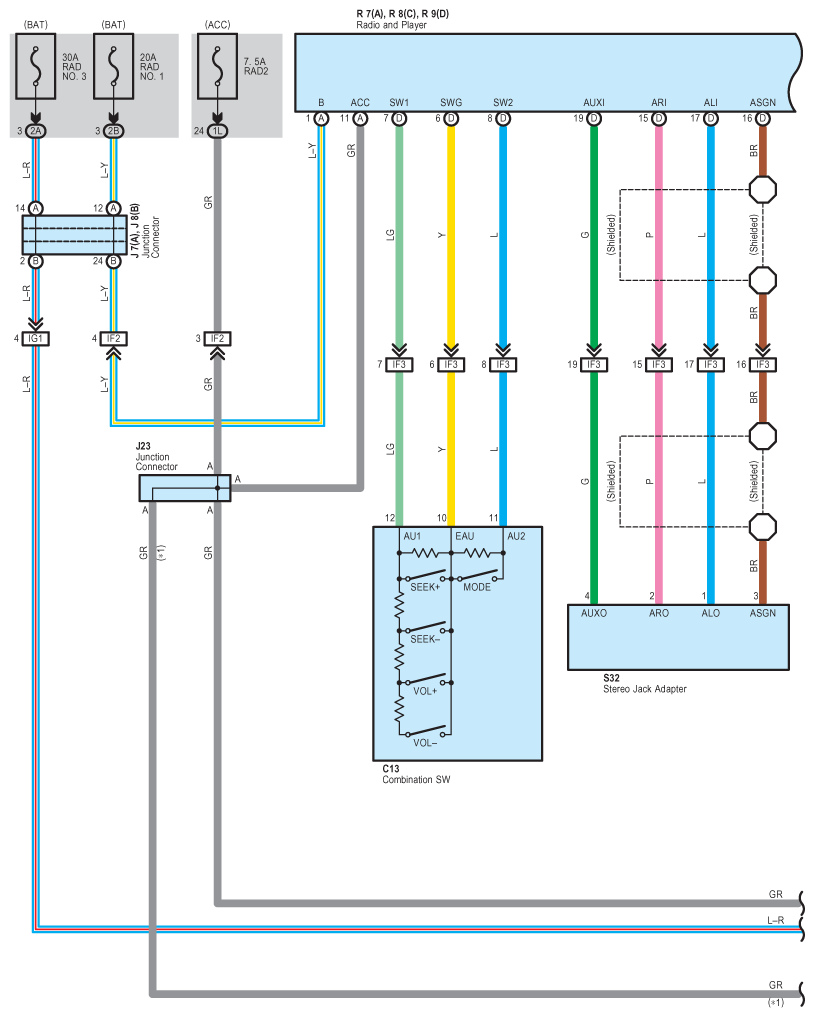

Fig 4: Audio System (With 10 Speaker) Wiring Diagram (4 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

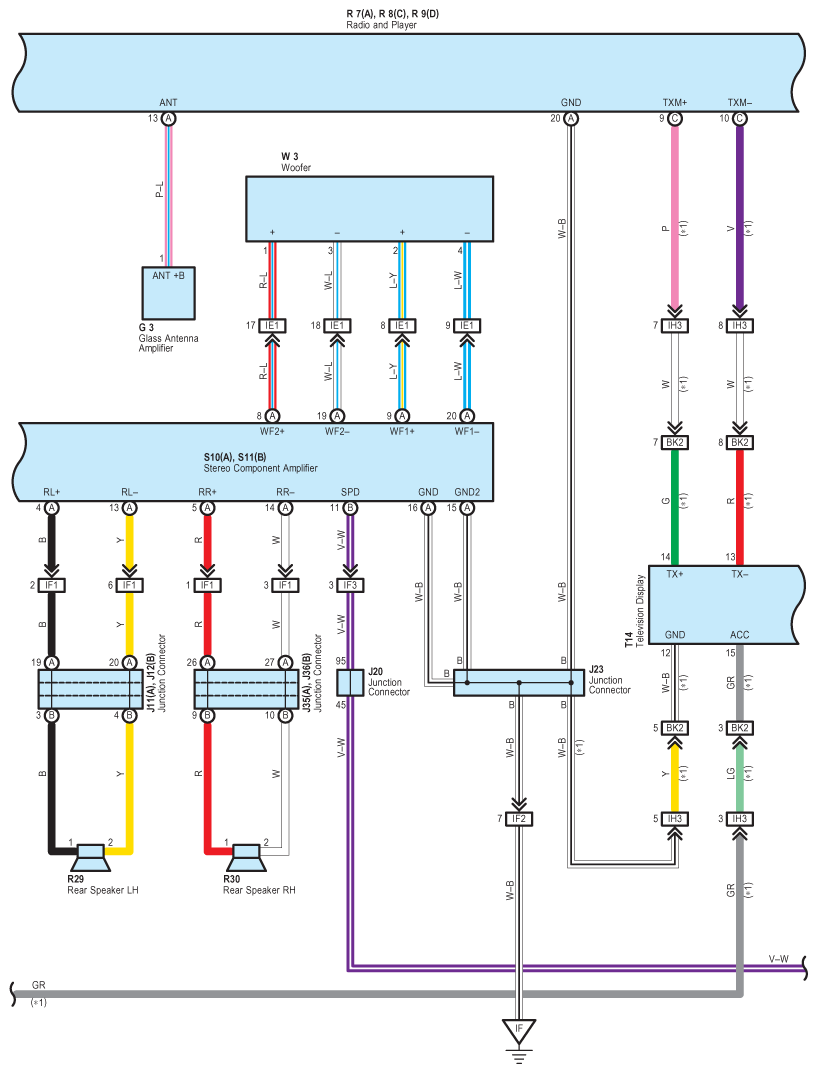

Fig 5: Audio System (With 10 Speaker) Wiring Diagram (5 Of 5)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
