Power Outlet (12V Front): Notes

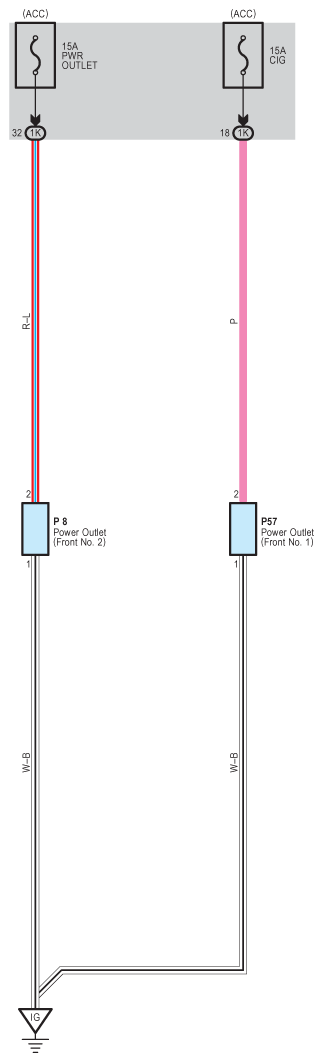

Fig 1: Power Outlet (12V Front) System Wiring Diagram
G08796136Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
