Accelerator Pedal Rod: Inspection
- INSPECT ACCELERATOR PEDAL ROD ASSEMBLY
- Resistance inspection

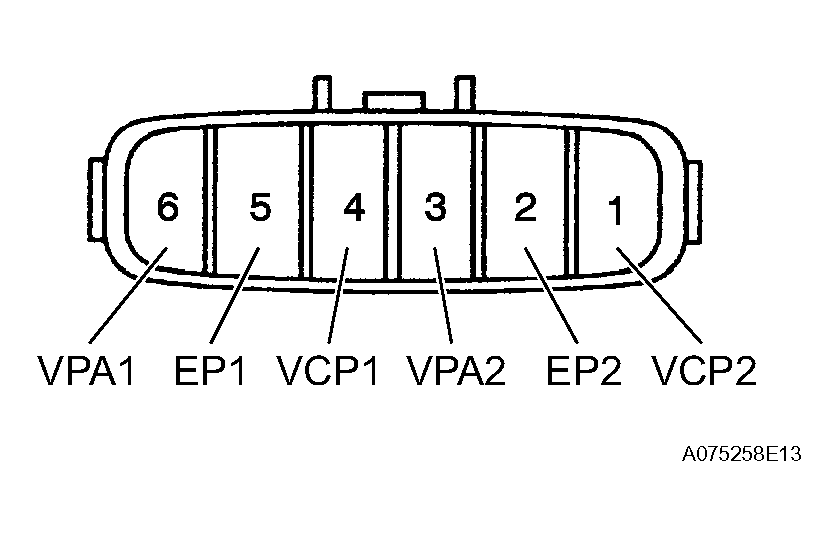

- Using an ohmmeter, measure the resistance between the terminals.
Standard Resistance
ACCELERATOR PEDAL ROD ASSEMBLY
| Terminal |
Resistance |
| 3 (VPA2) - 5 (EP1) |
5.0 kΩ or less |
| 6 (VPA1) - 2 (EP2) |
5.0 KΩ or less |
| 4 (VCP1) - 5 (EP1) |
2.25 to 4.75 kΩ |
| 1 (VCP2) - 2 (EP2) |
2.25 to 4.75 kΩ |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
