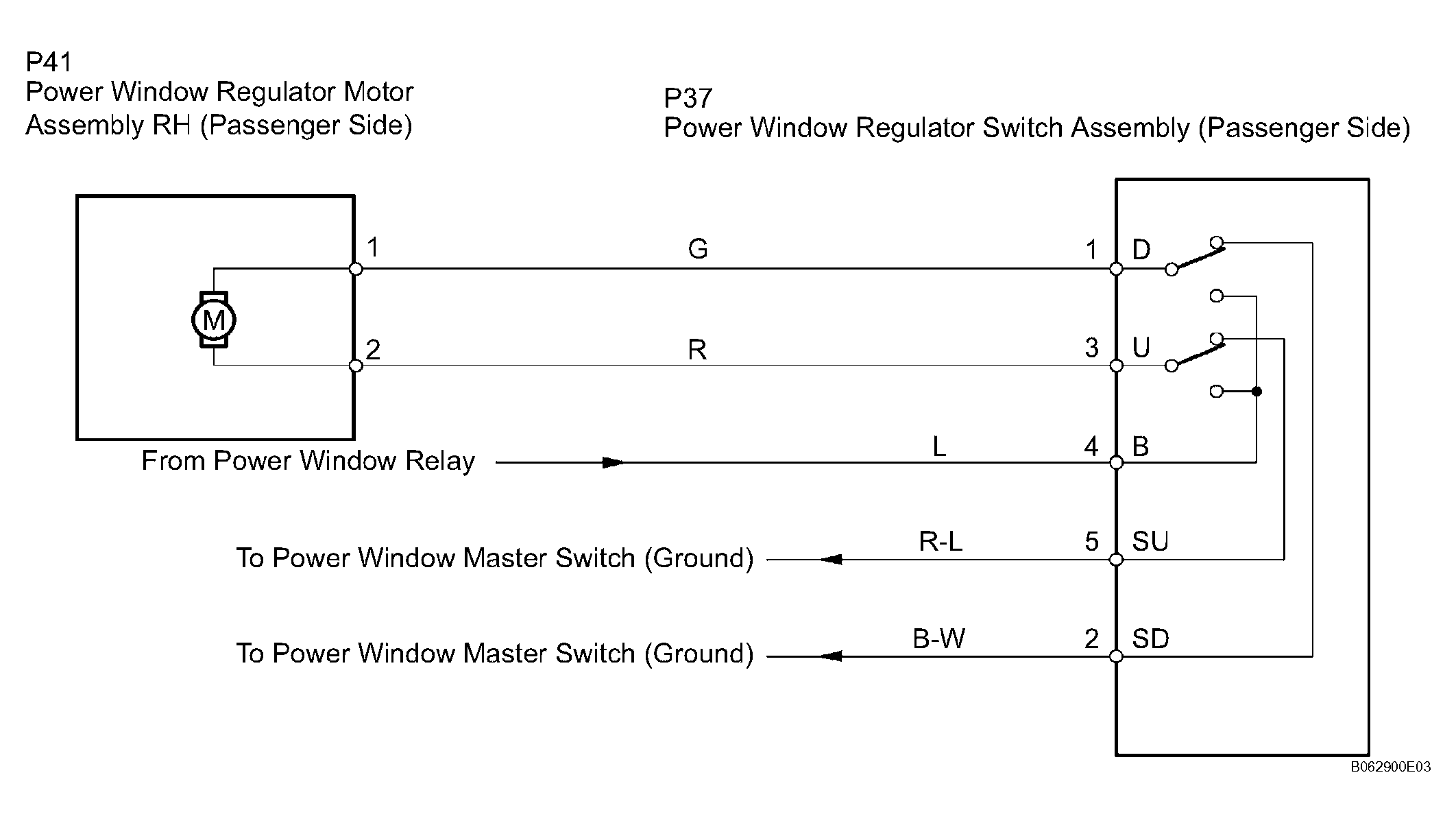

Manual Up / Down and Auto Down Function does not Operate on Passenger Side Only: Wiring Diagram

1. Disconnect the P37 regulator switch connector.
2. Turn the ignition switch ON.
3. Check the voltage between the terminal 4 of the wire harness side connector and the body ground.

   Standard voltage

   POWER SOURCE



   Terminal No.	Condition	Specified Condition
   P37-4 - Body ground	Ignition switch ON	10 to 14 V

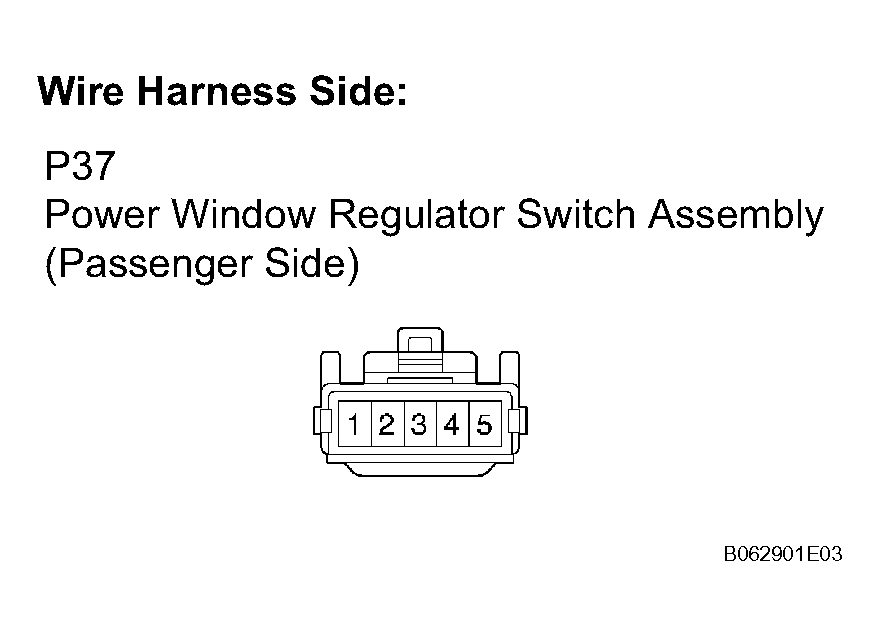

   Fig 2: Checking Wire Harness (Power Source)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR (REGULATOR SWITCH - RELAY)

OK: Go to next step.

1. Remove the regulator switch.
2. Check the resistance between the switch terminals when the switch is operated, as shown in FRONT PASSENGER SIDE POWER WINDOW SWITCH  .

   Standard resistance

   FRONT PASSENGER SIDE POWER WINDOW SWITCH



   Terminal No.	Regulator Switch	Specified Condition
   1 - 2, 3 - 4	UP	Below 1 Ω
   1 - 2, 3 - 5	OFF
   1 - 4, 3 - 5	DOWN

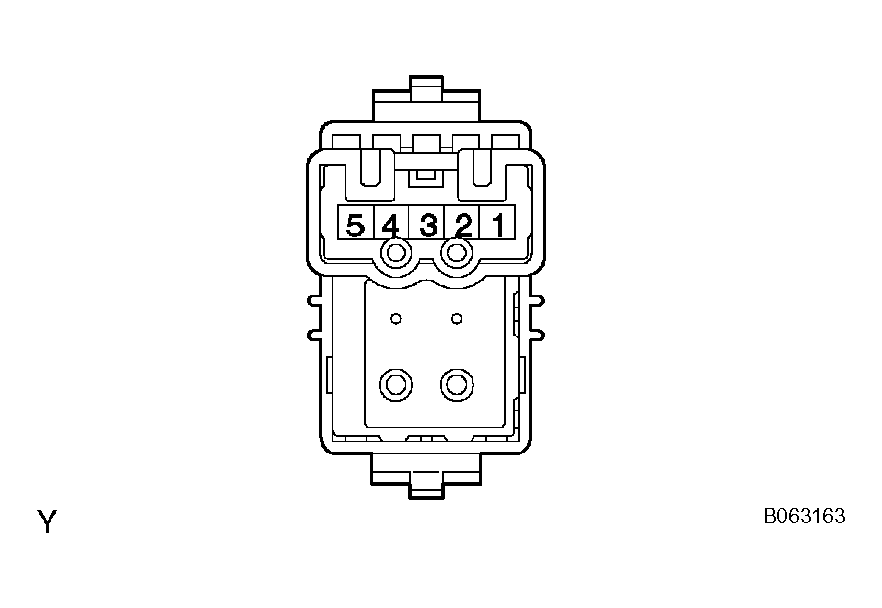

   Fig 3: Inspecting Front Passenger Side Power Window Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE FRONT PASSENGER SIDE POWER WINDOW SWITCH

OK: Go to next step.

1. Disconnect the P41 motor connector.
2. Check the resistance between the wire harness side connectors.

   Standard resistance

   REGULATOR SWITCH - MOTOR



   Terminal No.	Specified Condition
   P37-1 (D) - P41-1	Below 1 Ω
   P37-3 (U) - P41-2

3. Check the resistance between the P37 regulator switch connector and body ground.

   Standard resistance

   REGULATOR SWITCH - BODY GROUND



   Terminal No.	Specified Condition
   P37-1 (D) - Body ground	10 kΩ or higher
   P37-3 (U) - Body ground

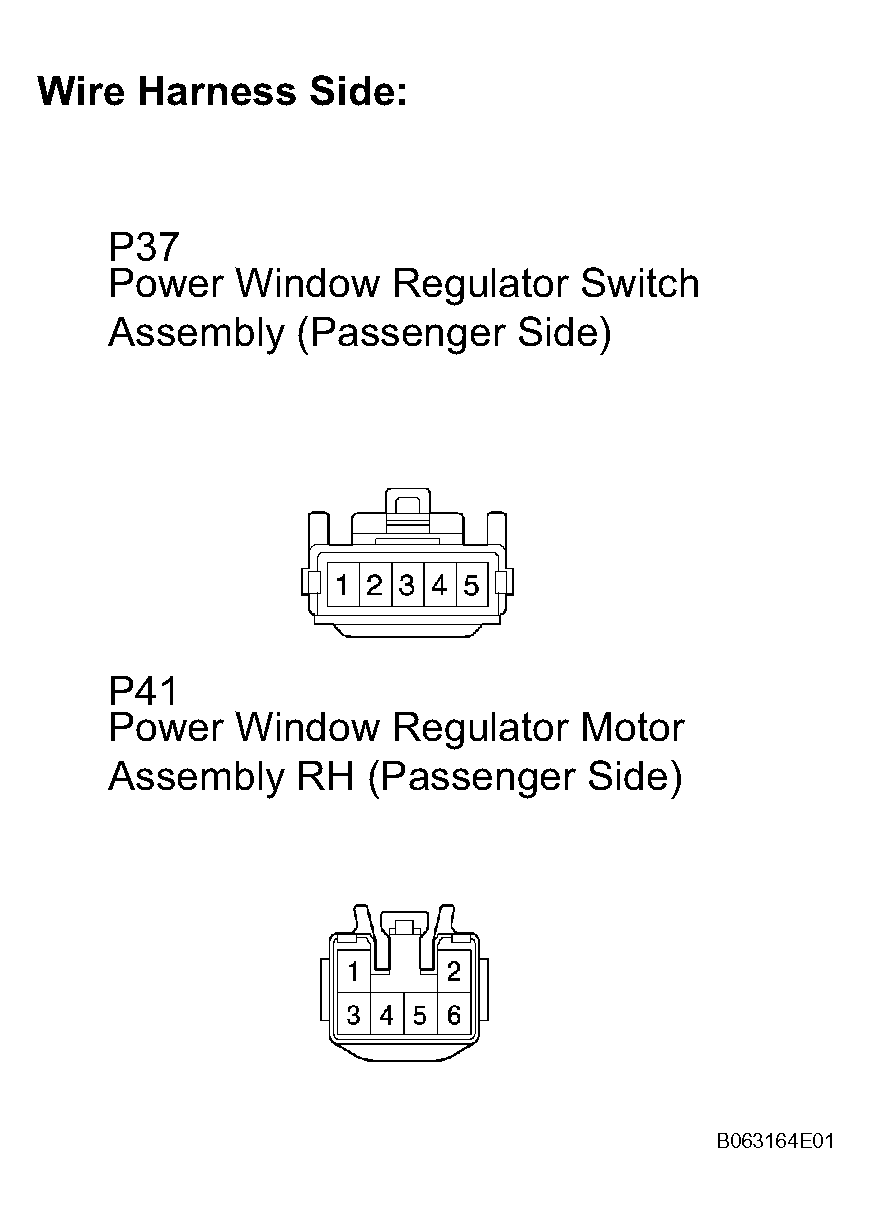

   Fig 4: Checking Wire Harness (Regulator Switch - Motor) (Regulator Switch - Body Ground)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step.

1. Remove the motor.
2. Apply battery voltage to connector terminals 1 and 2.
3. Check that the motor smoothly rotates.
   NOTE: Do not apply battery voltage to any terminals except terminals 1 and 2.

   Standard

   POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE)



   Terminal No.	Specified Condition
   Battery positive (+) -> 1 Battery negative (-) -> 2	Motor gear rotates clockwise
   Battery positive (+) -> 2 Battery negative (-) -> 1	Motor gear rotates counterclockwise

   Fig 5: Identifying Power Window Regulator Motor Connector Terminals

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE POWER WINDOW REGULATOR MOTOR ASSEMBLY (PASSENGER SIDE)

OK: REPAIR OR REPLACE HARNESS AND CONNECTOR (MASTER SWITCH - REGULATOR SWITCH)
