Rear Center Seat Inner Belt Assembly: Components: Notes

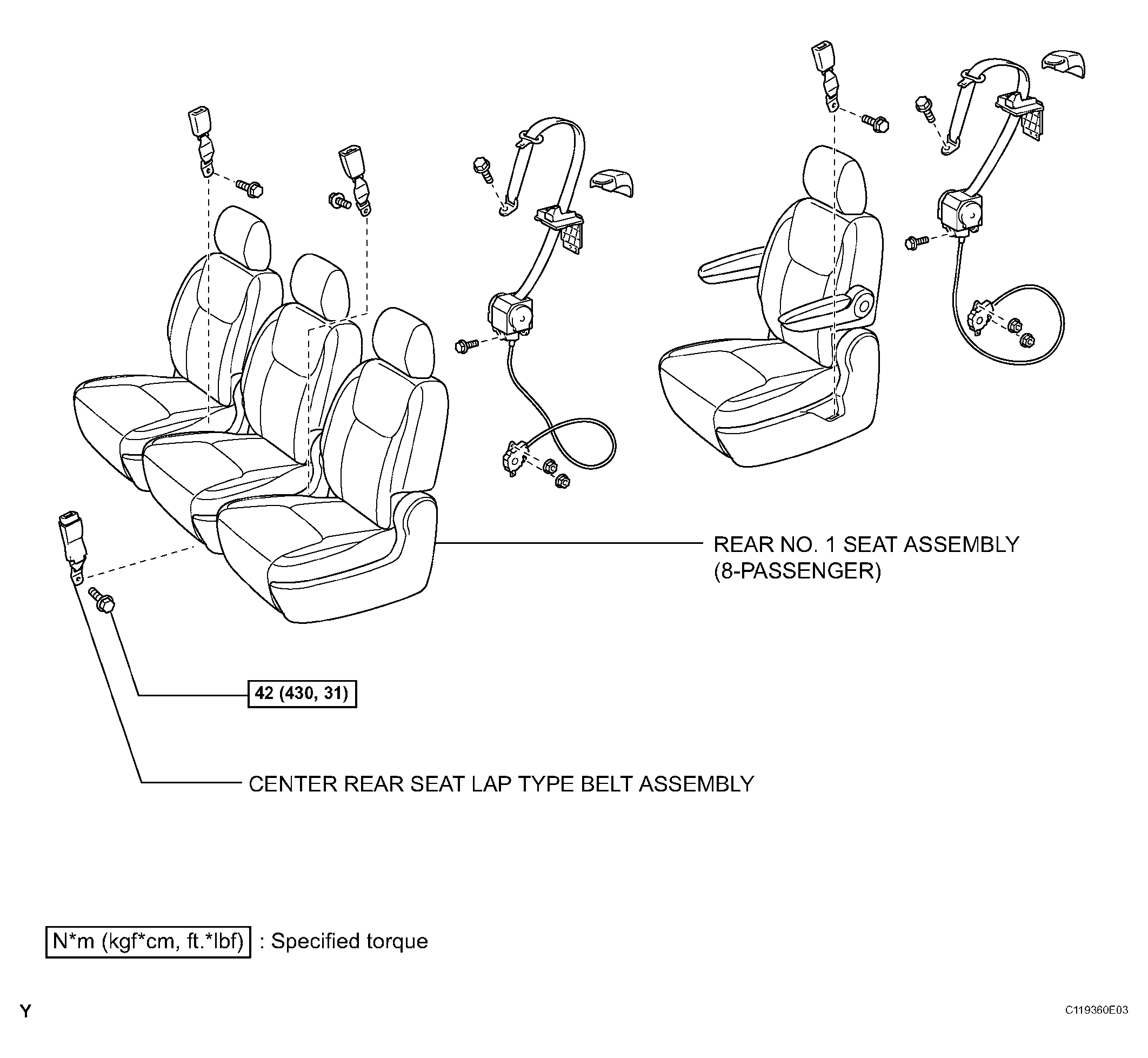

Fig 1: Identifying Rear Center Seat Inner Belt Assembly Components And Replacements (1 Of 2)
G04494676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

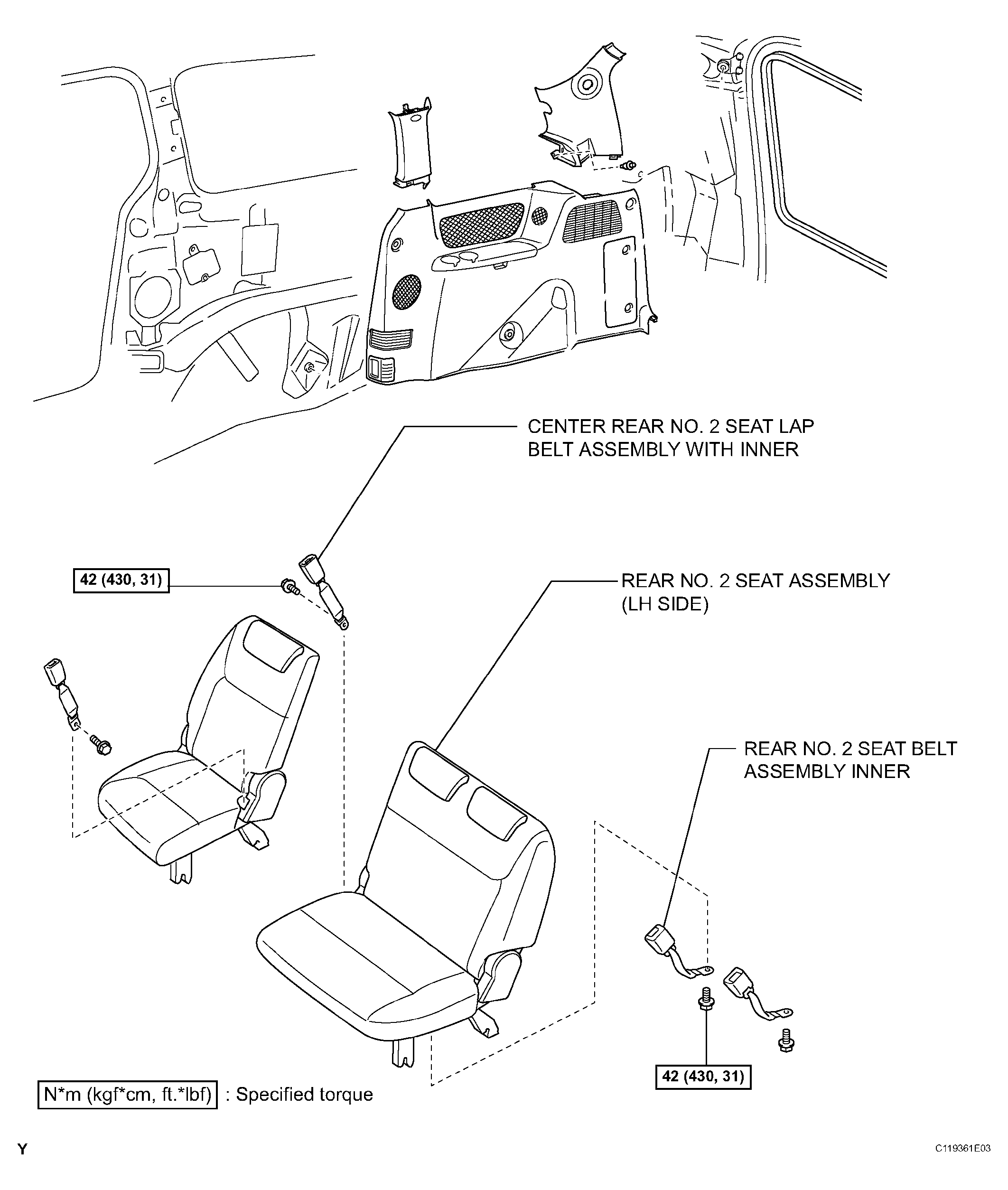

Fig 2: Identifying Rear Center Seat Inner Belt Assembly Components And Replacements (2 Of 2)
G04494677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
