Accelerator Pedal: Inspection

  1. INSPECT ACCELERATOR PEDAL ROD ASSEMBLY
    1. Check the resistance.
      1. Using an ohmmeter, measure the resistance between the terminals.

        Standard

        TESTER CONNECTIONS AND SPECIFIED CONDITION TABLE

        Tester Connection Specified Condition
        5 (EP1) - 4 (VCP1) 1M Ω or higher
        2 (EP2) - 1 (VCP2) 1M Ω or higher

        If the result is not as specified, replace the accelerator pedal.

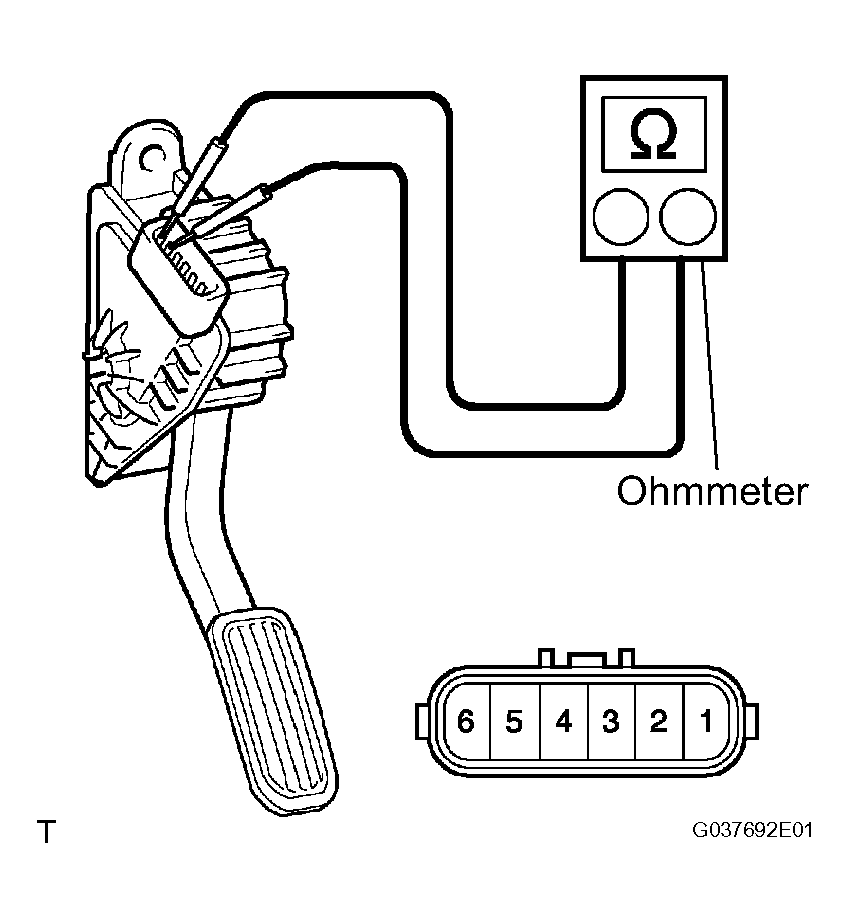

        Fig 1: Measuring Resistance Between Terminals Using Ohmmeter
        G04407944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
