DTC P0110, P0112, P0113: Intake Air Temperature Circuit; Intake Air Temperature Circuit Low Input; Intake Air Temperature Circuit High Input: Wiring Diagram

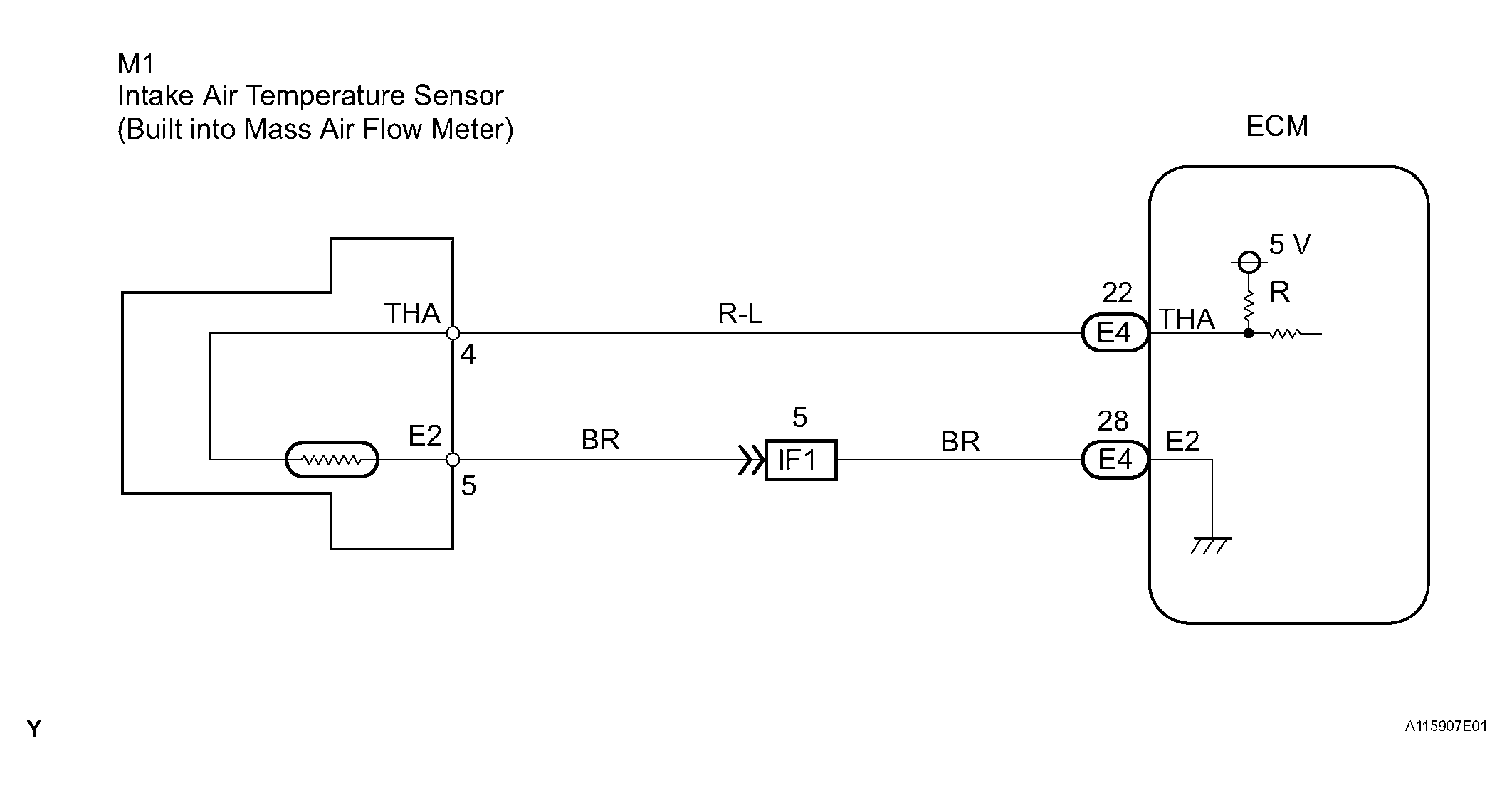

Fig 1: Intake Air Temperature - Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
