OEM System Circuits: Abs: Notes

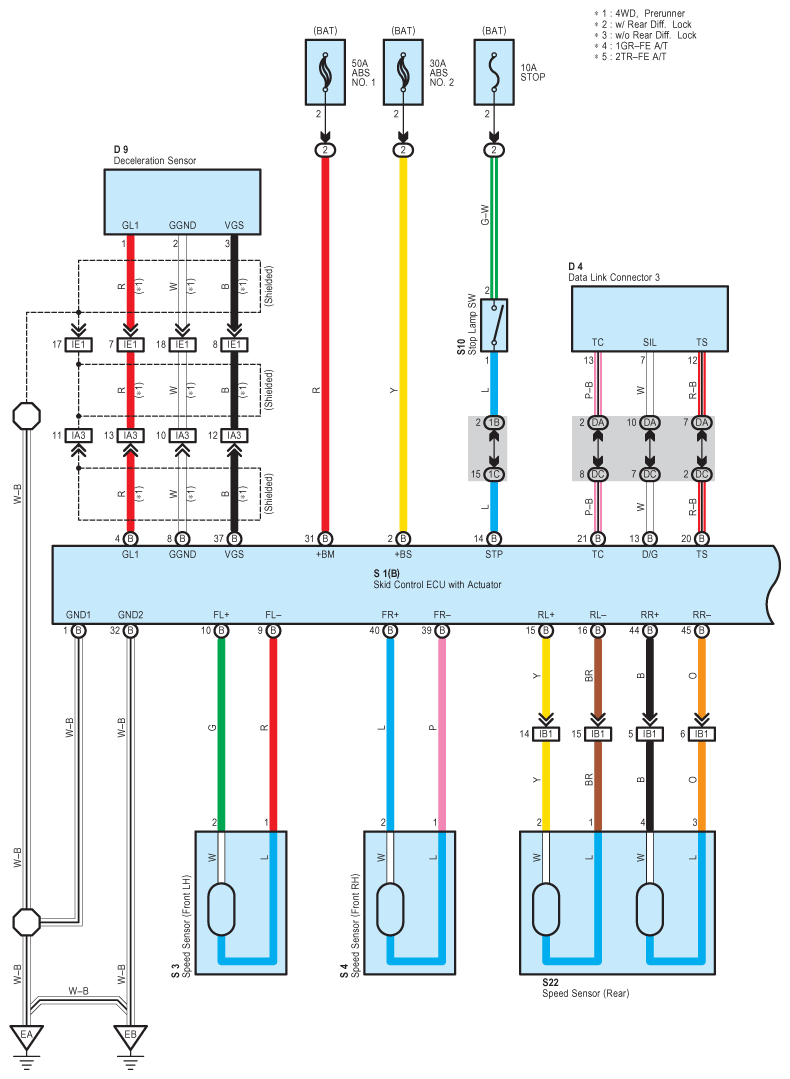

Fig 1: ABS Wiring Diagram (1 Of 3)
G08788565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

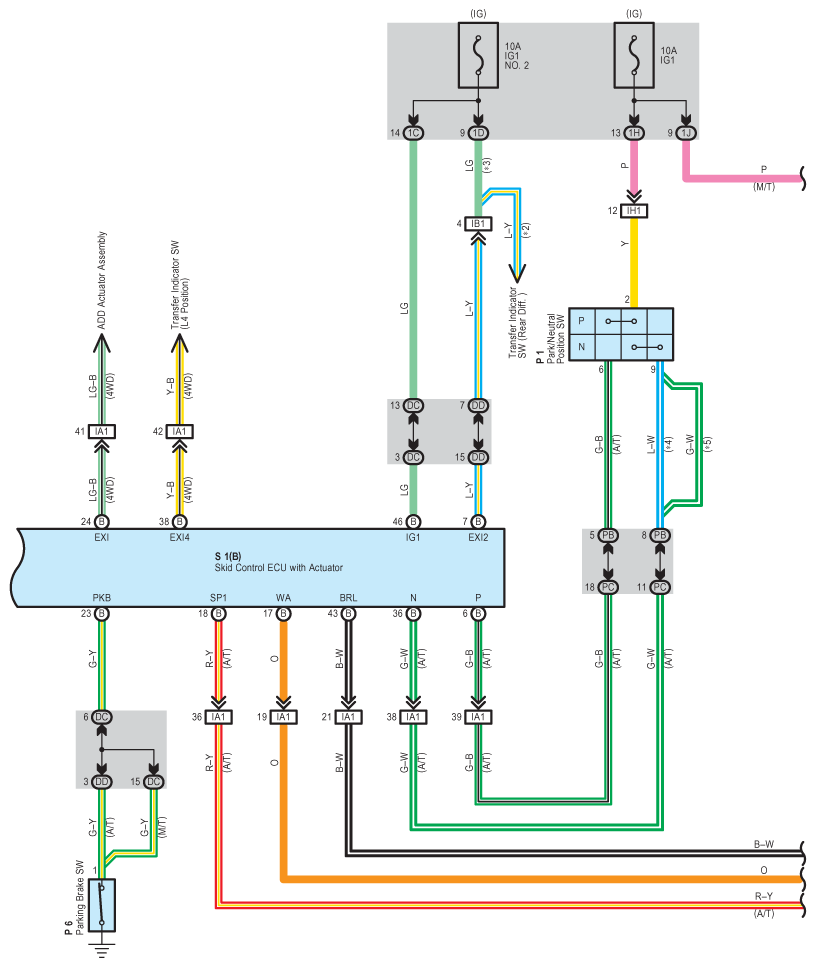

Fig 2: ABS Wiring Diagram (2 Of 3)
G08788566Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

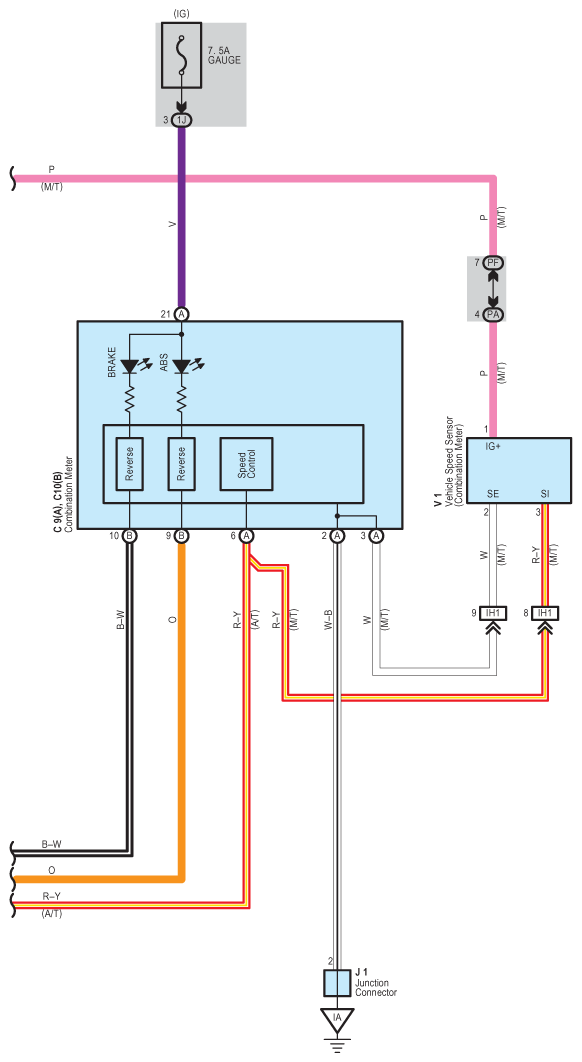

Fig 3: ABS Wiring Diagram (3 Of 3)
G08788567Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
