Cruise Control for 1GR-FE: Notes

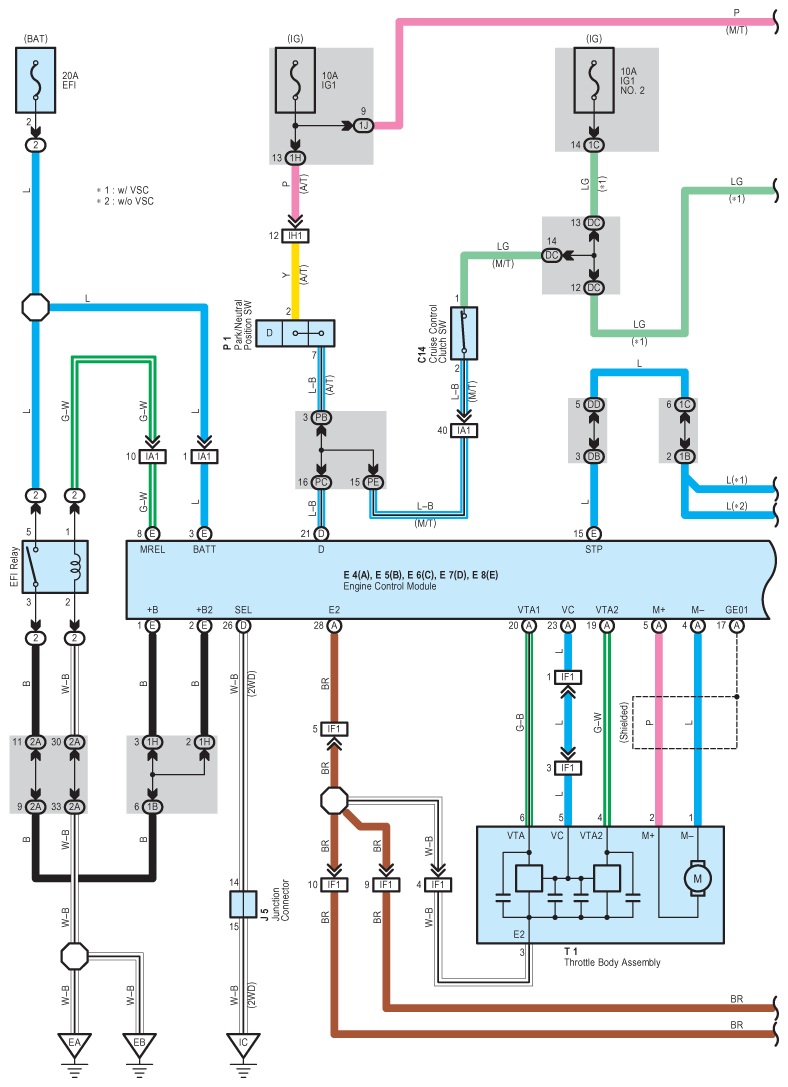

Fig 1: Cruise Control System Wiring Diagram (1GR-FE; 1 Of 4)
G08788550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

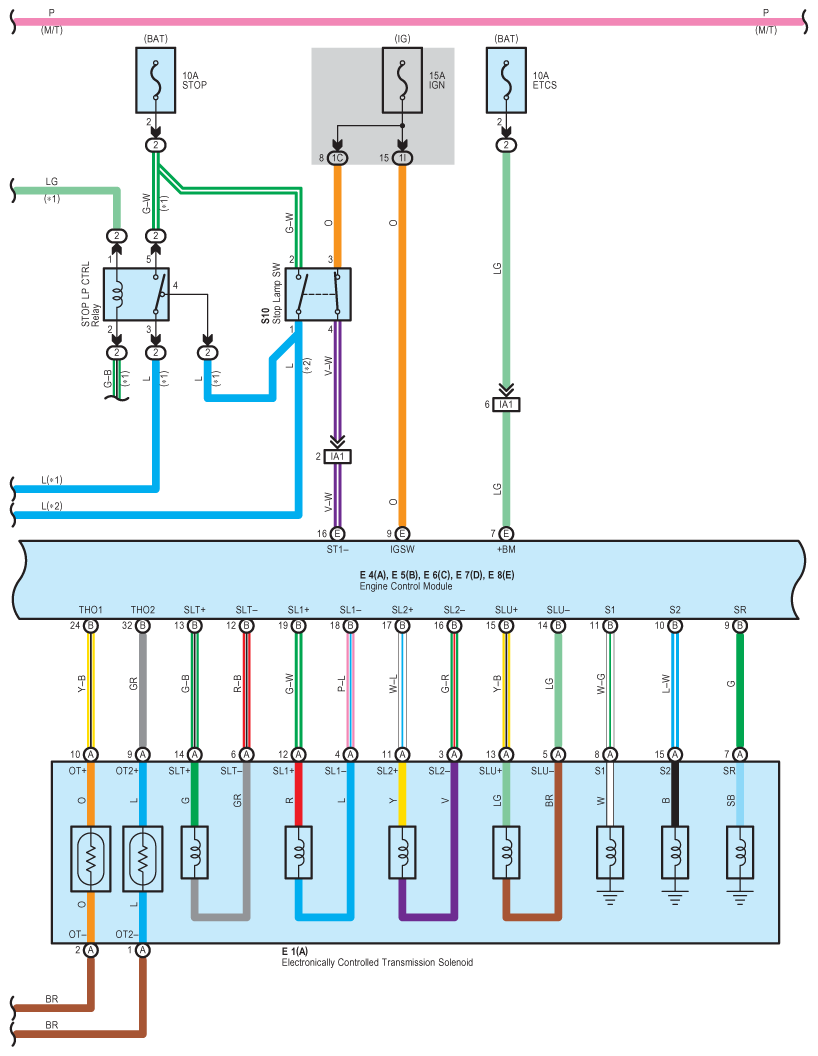

Fig 2: Cruise Control System Wiring Diagram (1GR-FE; 2 Of 4)
G08788551Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

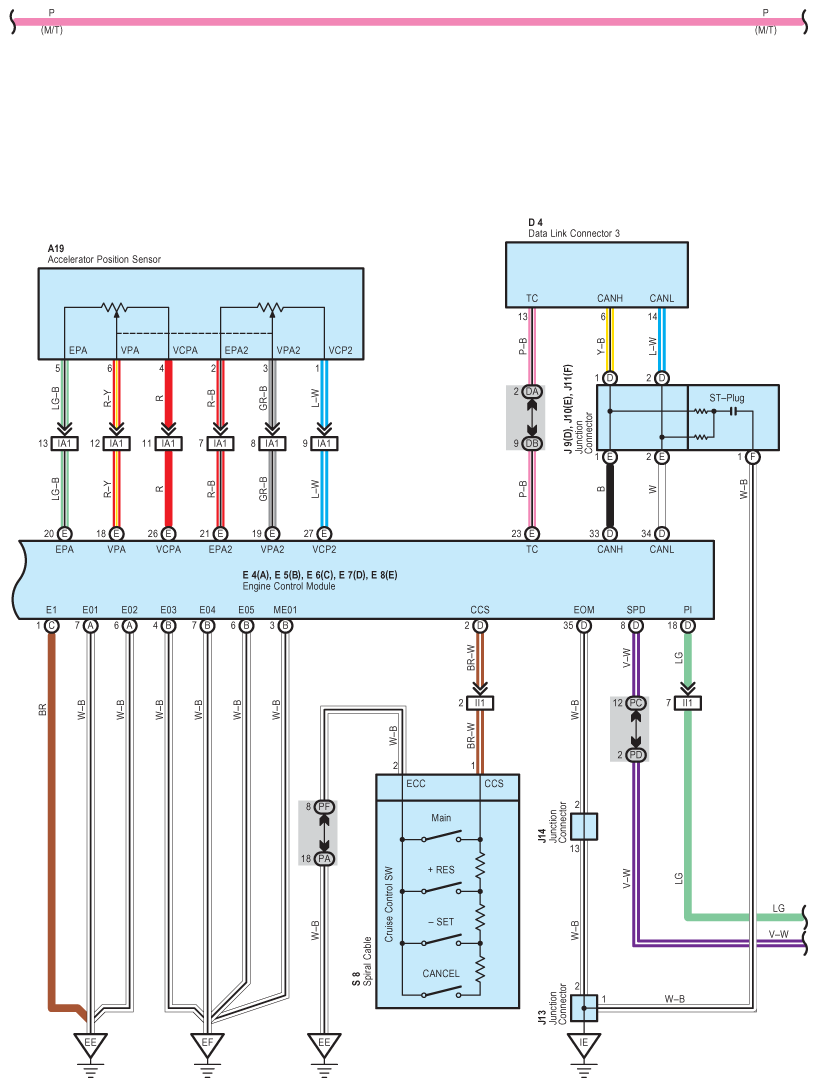

Fig 3: Cruise Control System Wiring Diagram (1GR-FE; 3 Of 4)
G08788552Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

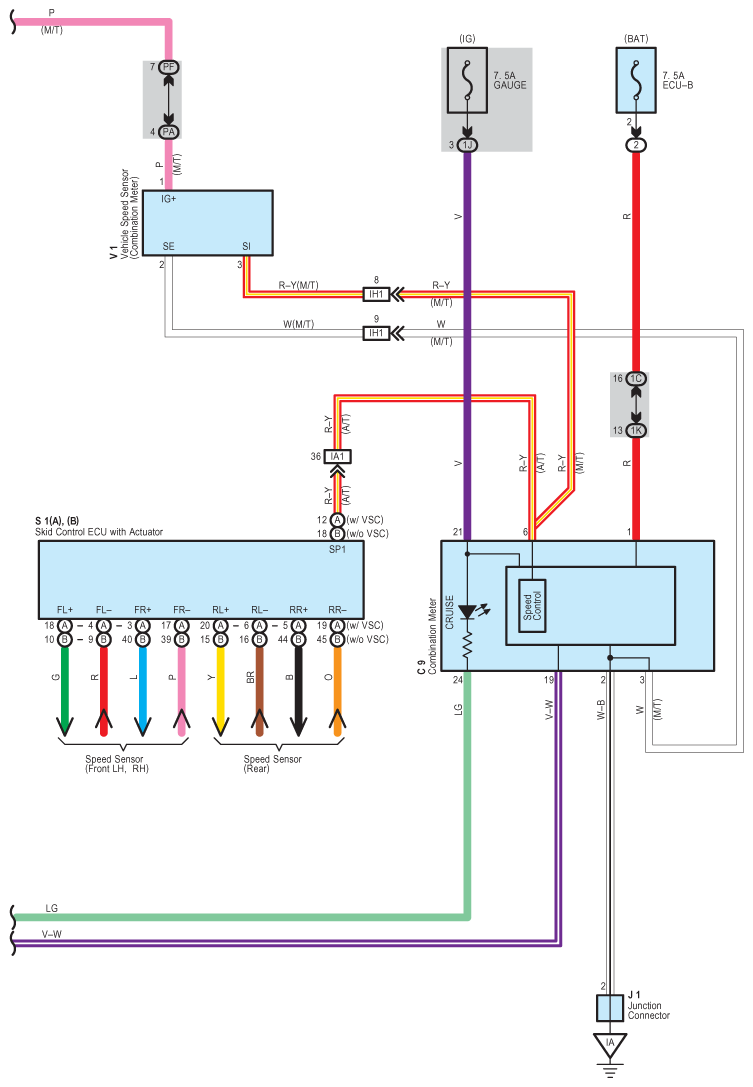

Fig 4: Cruise Control System Wiring Diagram (1GR-FE; 4 Of 4)
G08788553Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
