Windshield/Window Glass: Components

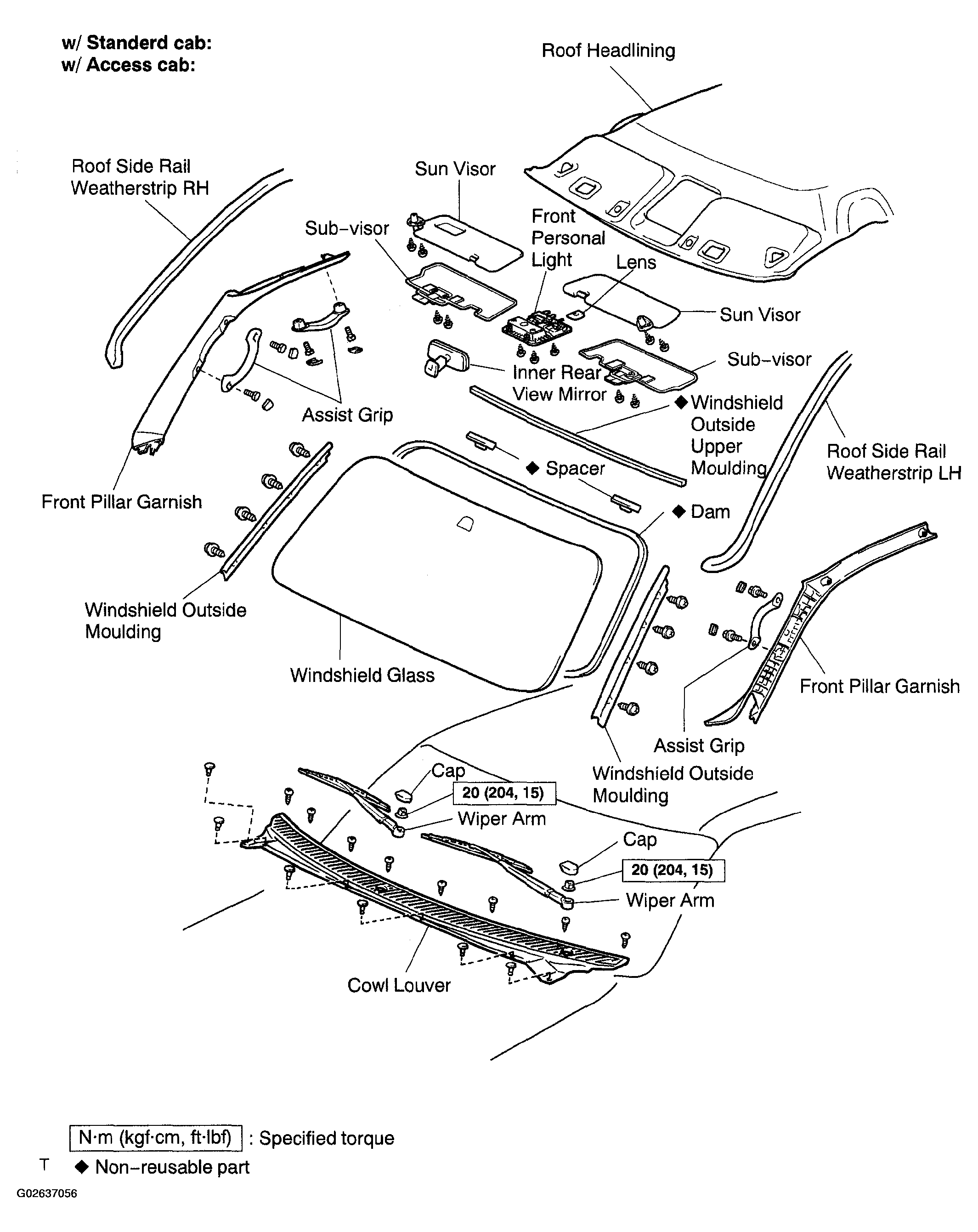

Fig 1: Replacement Components Windshield With Torque Specifications (1 Of 2)
G02637056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

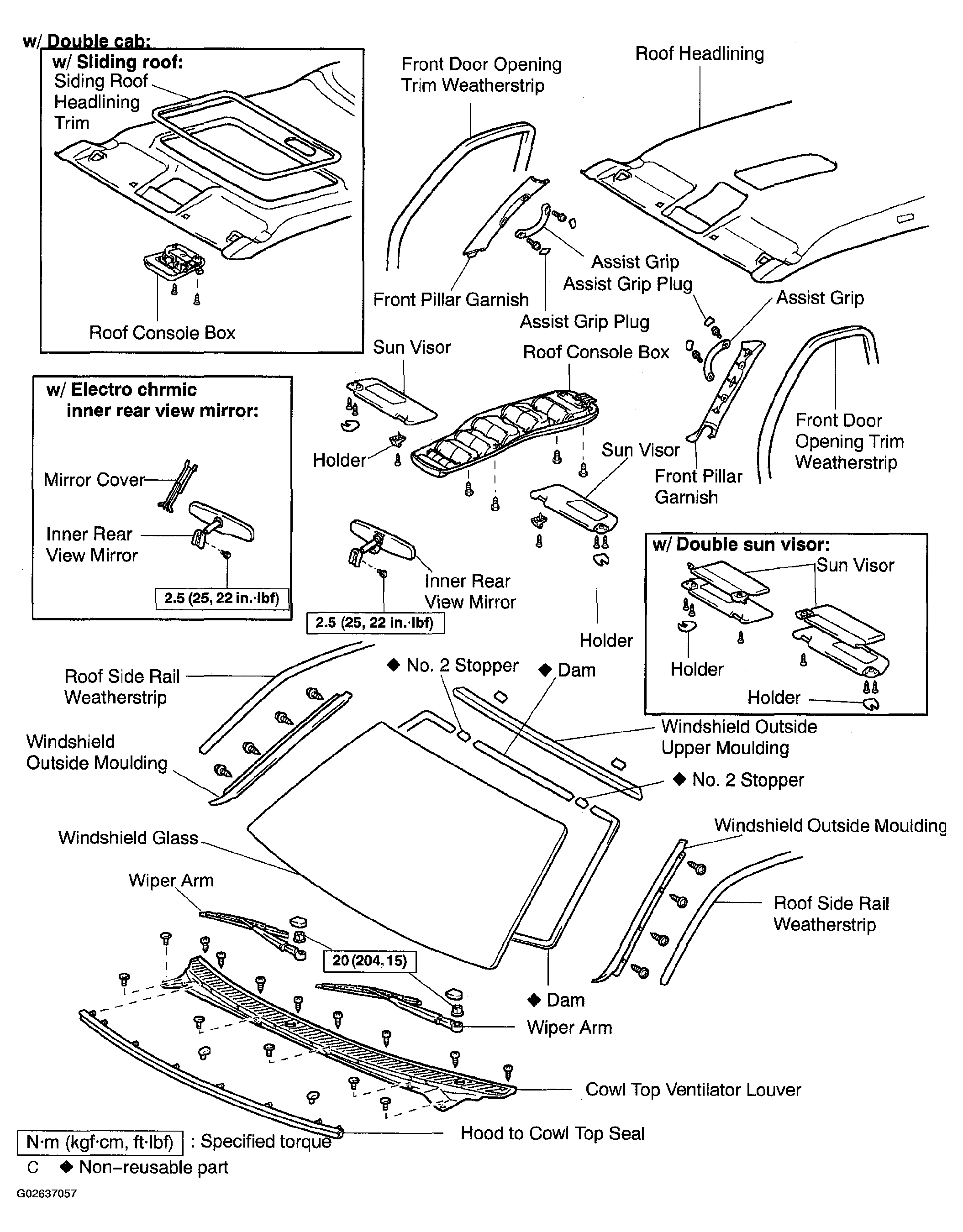

Fig 2: Replacement Components Windshield With Torque Specifications (2 Of 2)
G02637057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
