Ignition Coil: Components

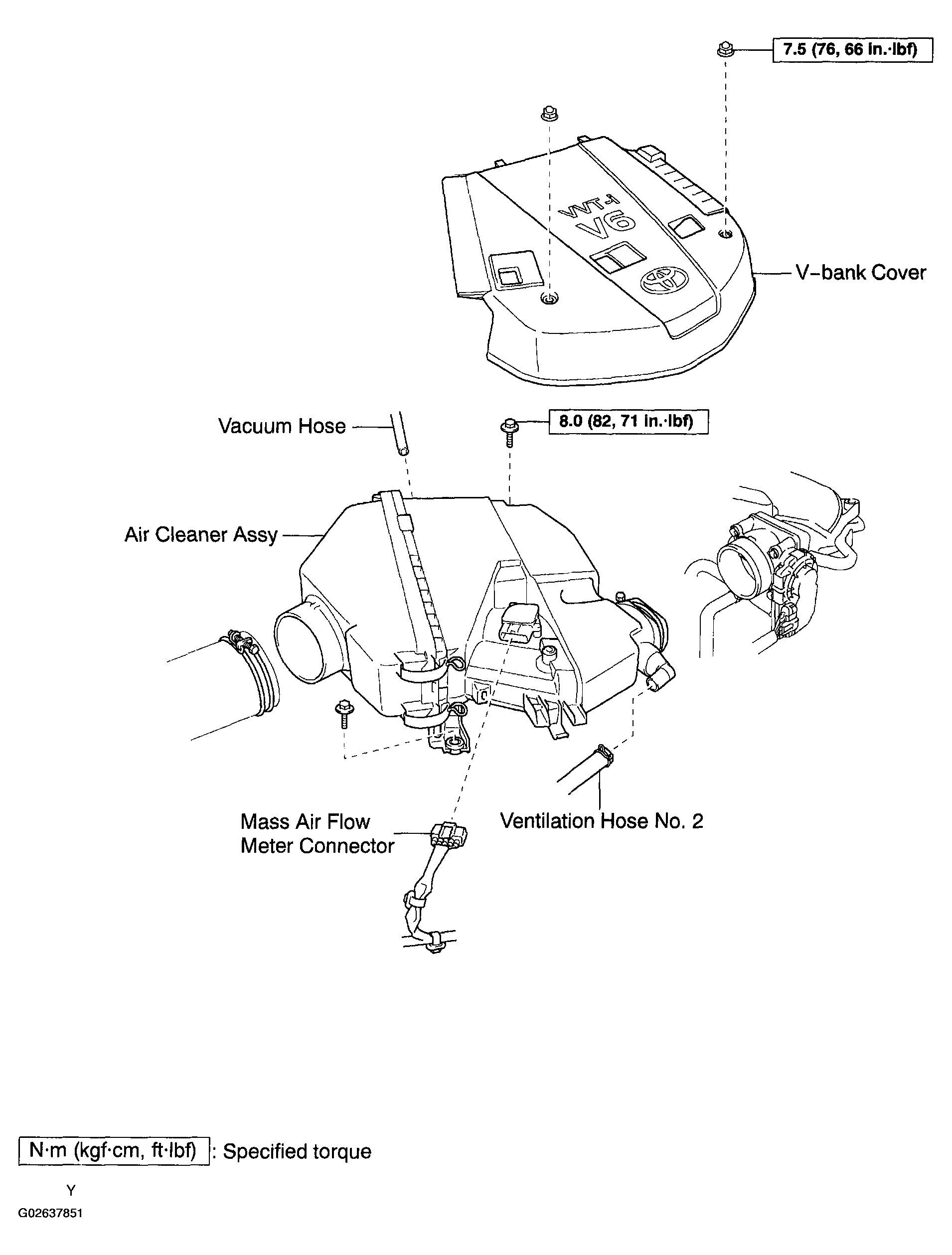

Fig 1: Exploded View Of Air Cleaner & Related Components
G02637851Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

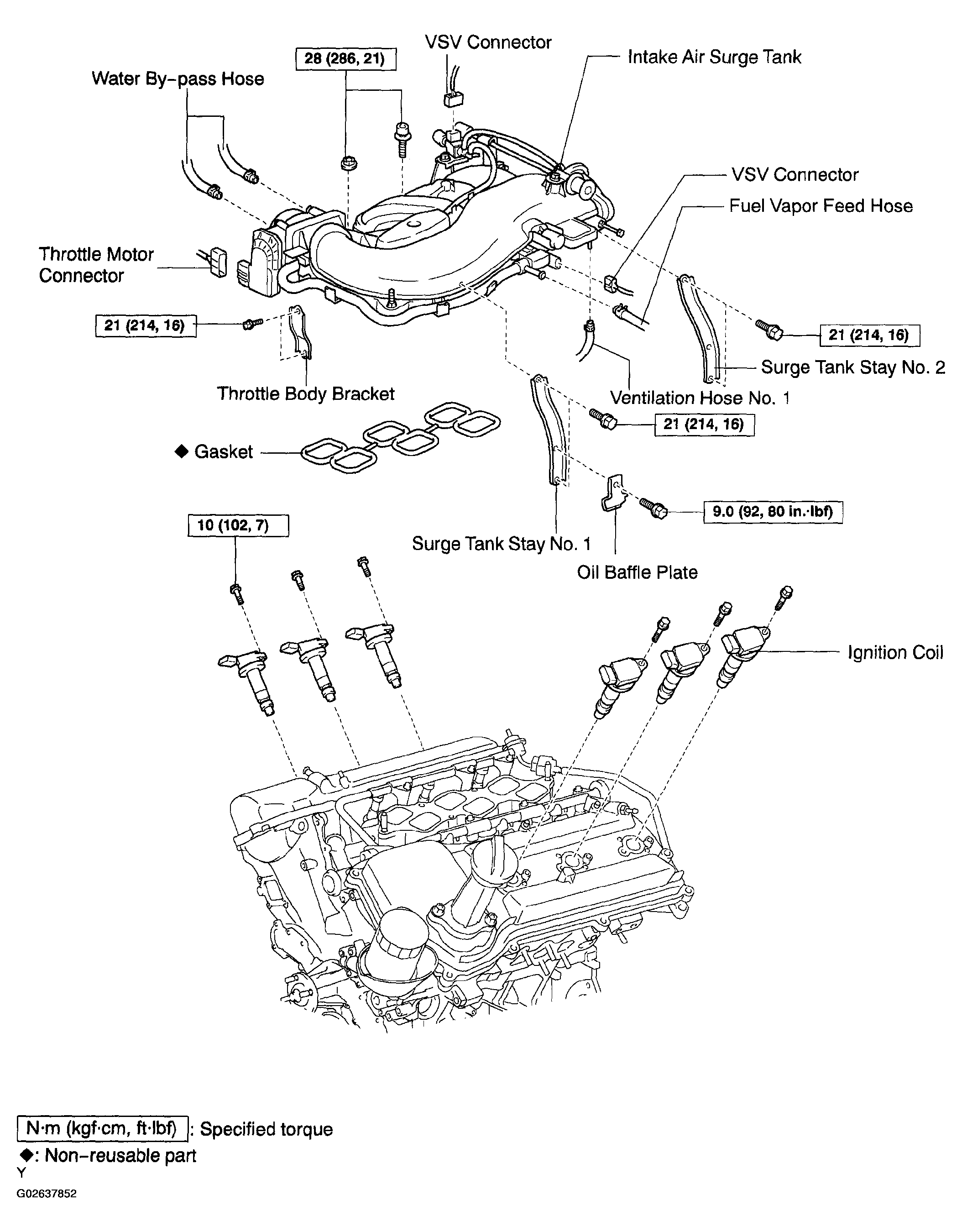

Fig 2: Exploded View Of Upper Engine With Torque Specifications
G02637852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
