Throttle Body: Components

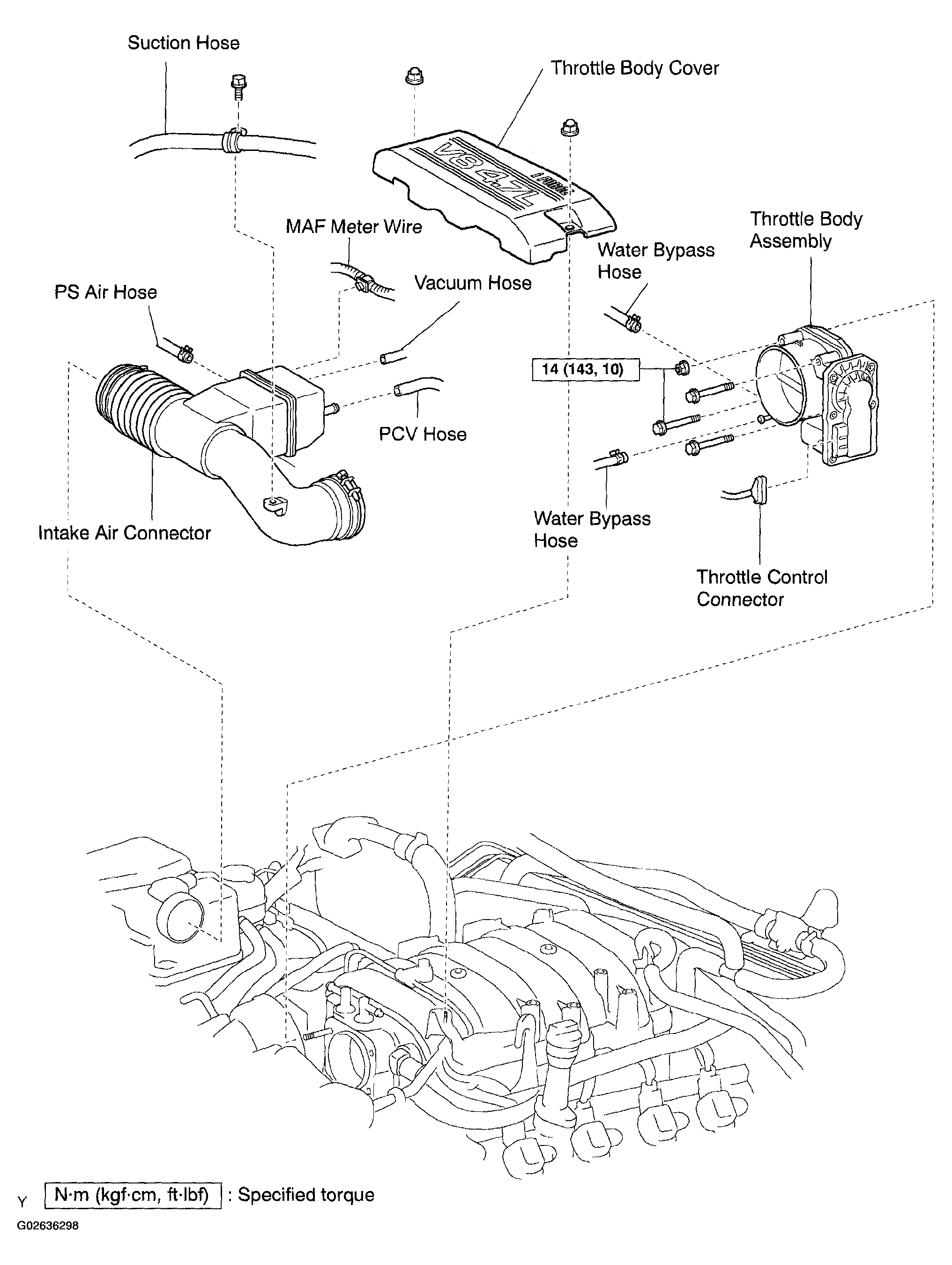

Fig 1: Identifying Throttle Body Cover Components
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
