VVT Sensor: Components

Fig 1: Identifying VVT Sensor Components (1 Of 2)
G02636350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

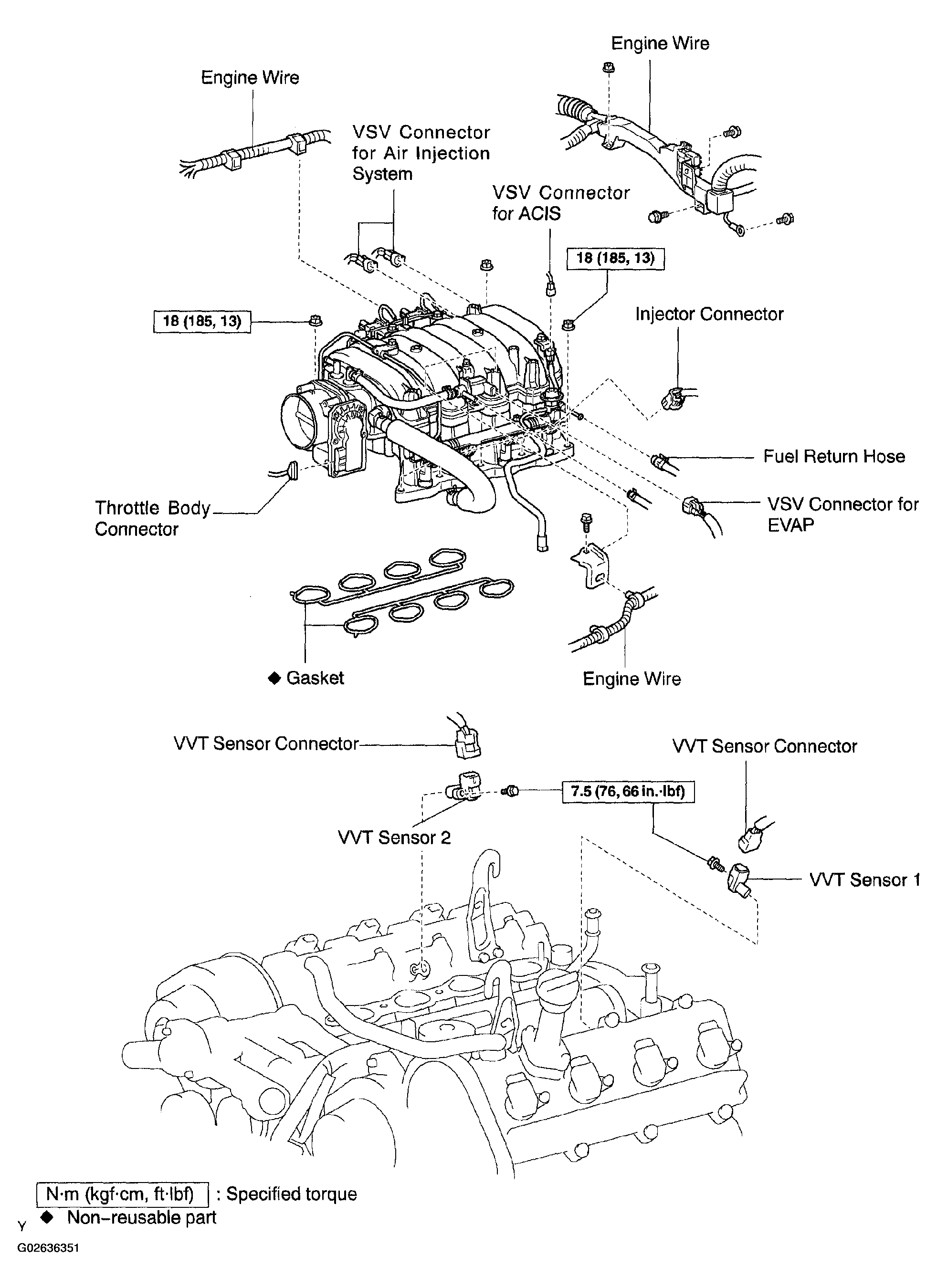

Fig 2: Identifying VVT Sensor Components (2 Of 2)
G02636351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
