Front Stabilizer Bar: Components

Fig 1: Identifying Front Stabilizer Bar Component Replacement (1 Of 2)
G05001263Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

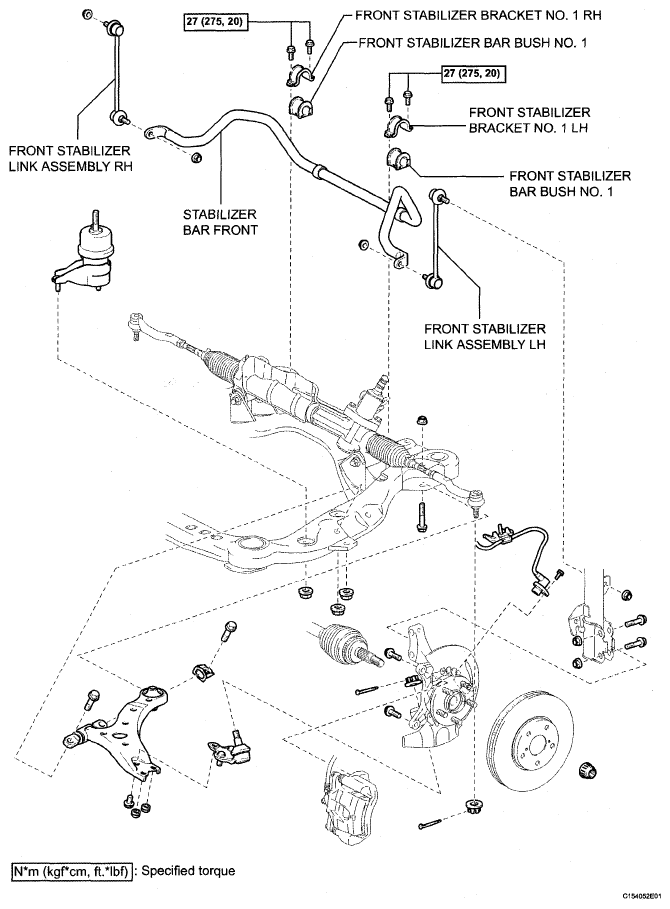

Fig 2: Front Stabilizer Bar Component Replacement With Torque Specifications (2 Of 2)
G05001264Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
