Vehicle Stability Control System
TERMINALS OF ECUTerminals Of Control Module/Pinouts (Part 1):

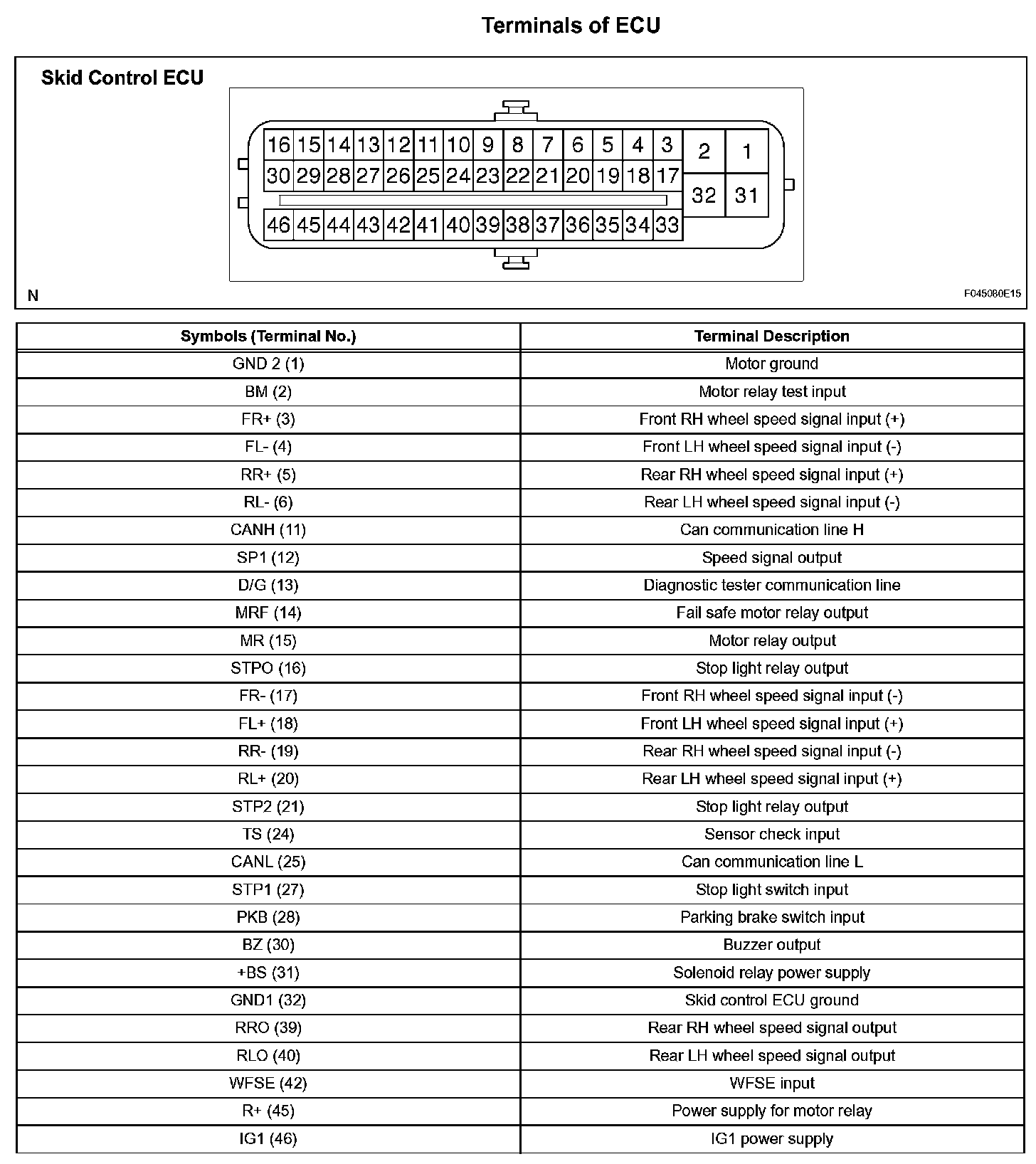

1. Terminals of ECU

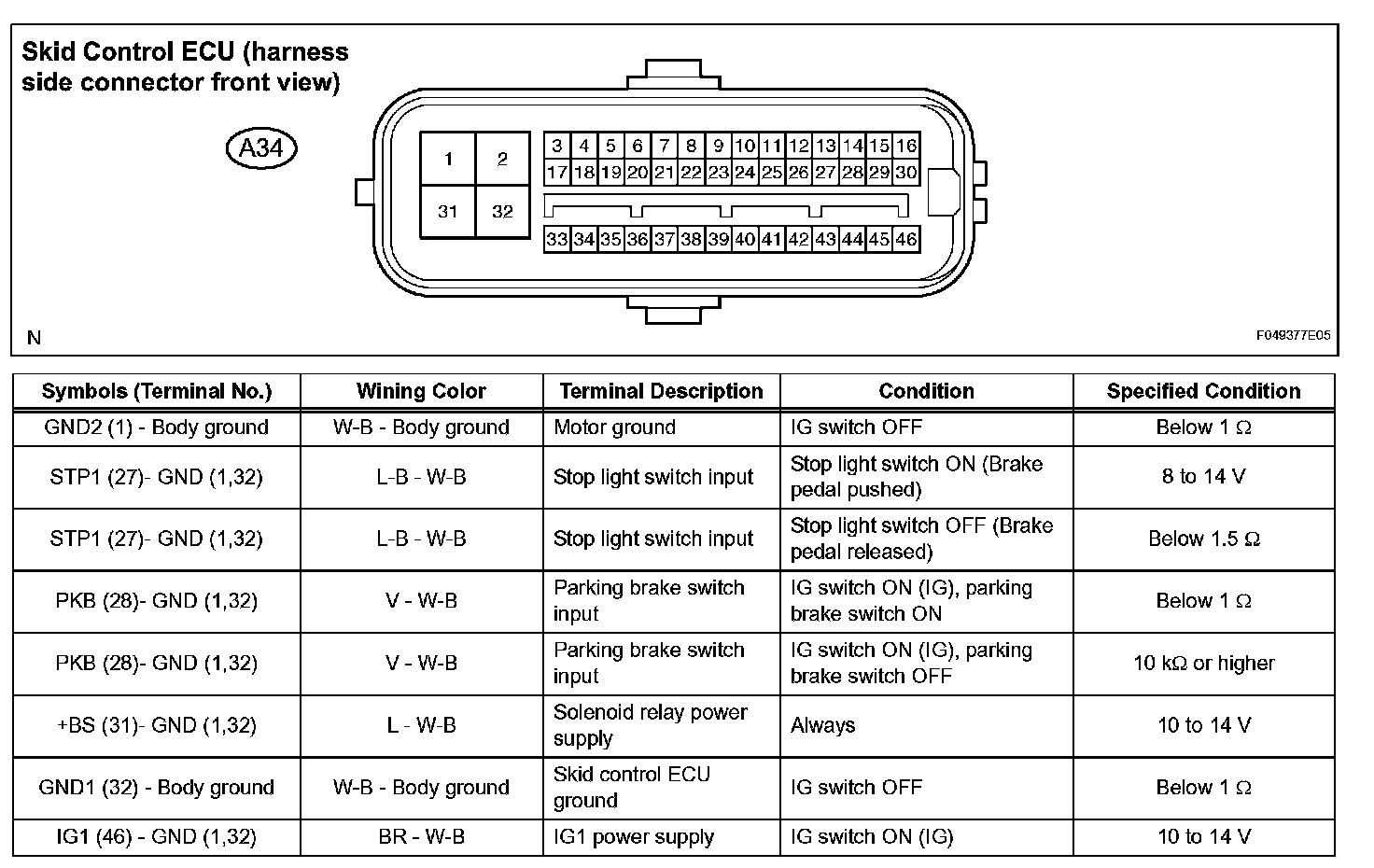

2. Terminal Inspection.
Terminals Of Control Module/Pinouts (Part 2):
a. Disconnect the connector and measure the voltage on the wire harness side.
HINT: Voltage cannot be measured with the connector connected to the skid control ECU as the connector is watertight.
