Initialization

INITIALIZATION

1. HEIGHT CONTROL SENSOR SIGNAL INITIALIZATION

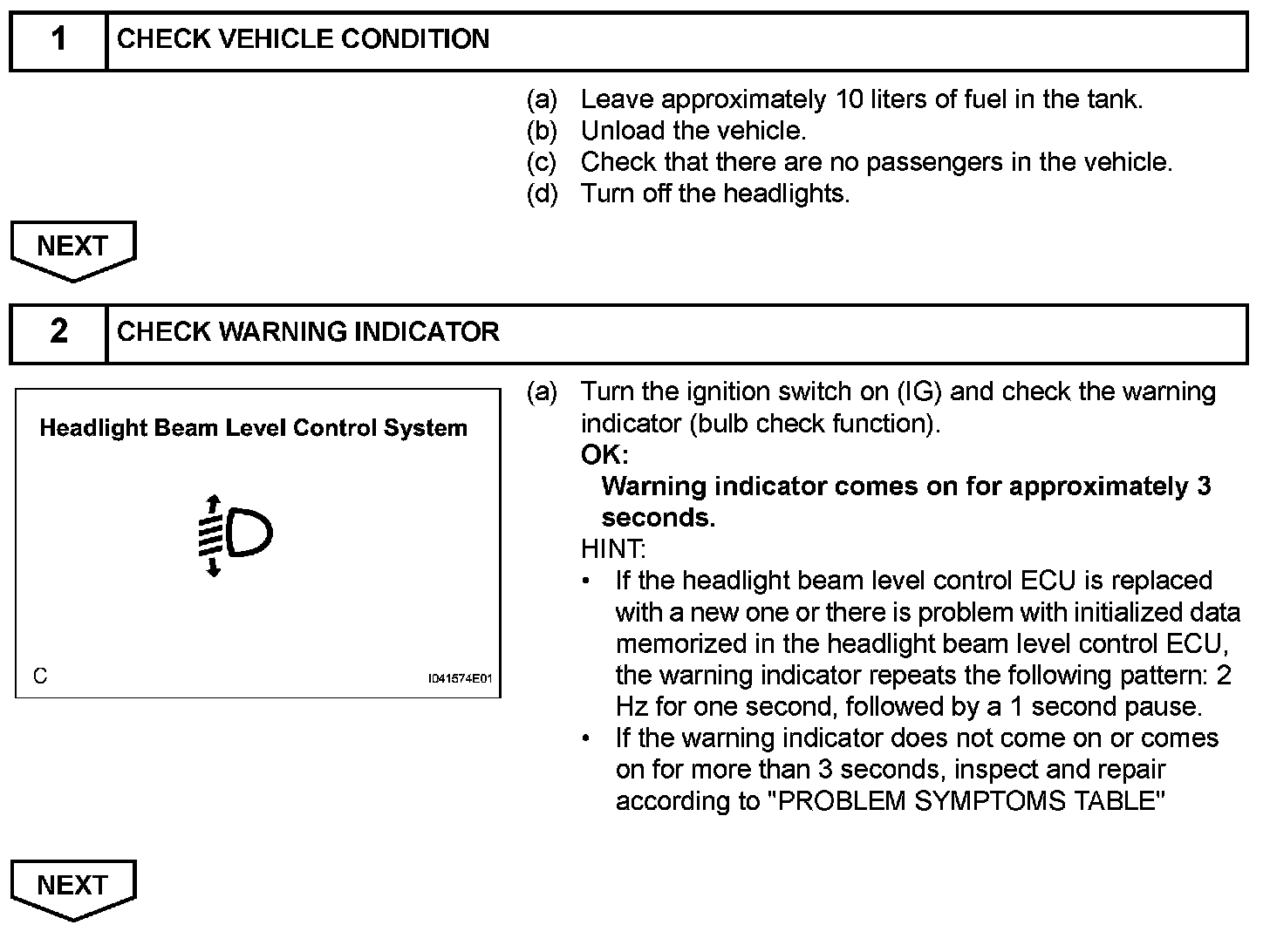

Step 1-2:

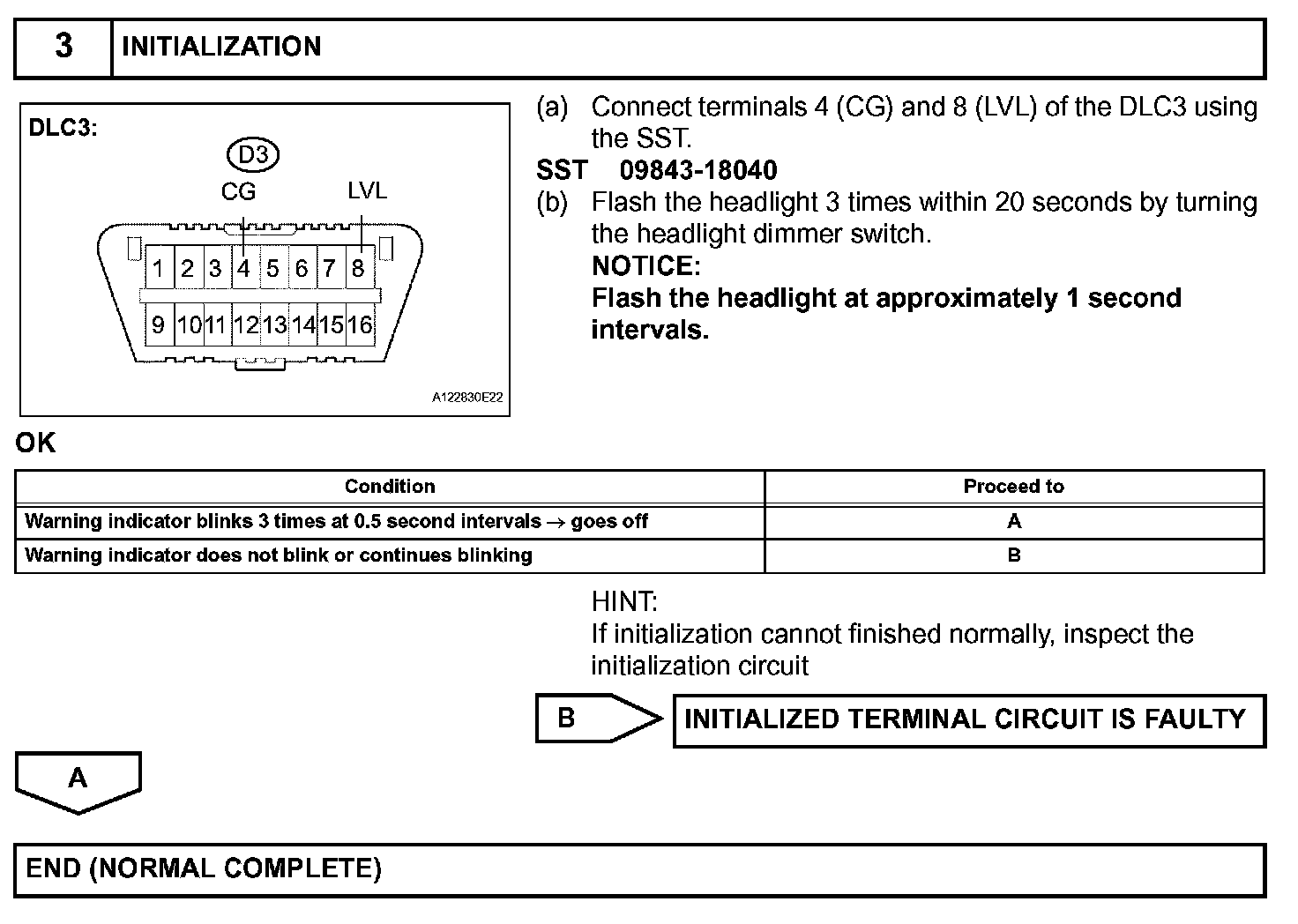

Step 3:

NOTE:
- Initialize the headlight beam level control ECU when vehicle height changes due to replacement of the suspension, headlight beam level control ECU, or removal, installation, or replacement of the height control sensor.
- Adjust the headlight aim after initializing the headlight beam level control ECU.
