ACIS Control Circuit: Wiring Diagram

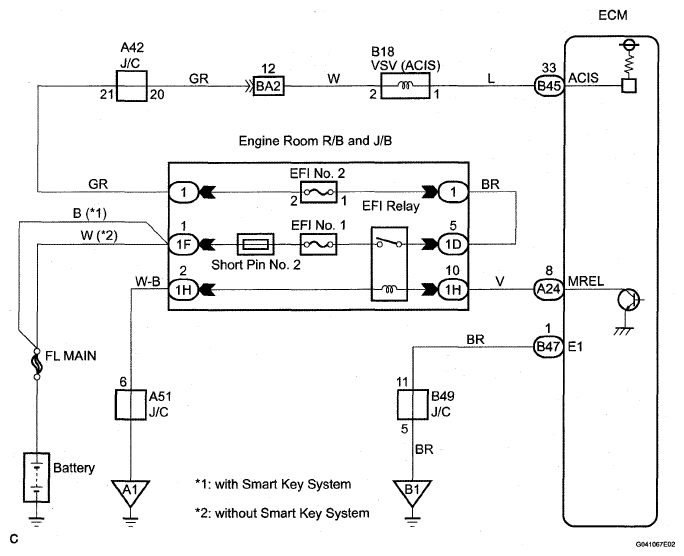

Fig 1: ACIS - Wiring Diagram

G04996522

Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.
