Inspection Procedure

1. Disconnect the radio receiver E12 or E13 connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   GND - Body ground	Always	Below 1 Ω

3. Measure the voltage according to the value(s) in the table below.

   Standard voltage

   TESTER CONNECTION SPECIFIED CONDITION



   Tester connection	Condition	Specified condition
   B - GND	Always	10 to 14 V
   ACC - GND	Ignition switch on (ACC)	10 to 14 V

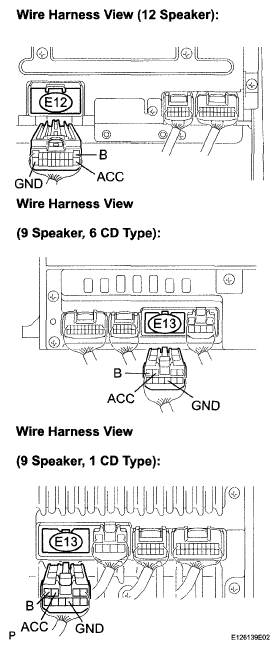

Fig 1: Disconnecting Radio Receiver E12 or E13 Connector

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE
