Combination Switch ECU Power Source Circuit: Description

This circuit provides power to the combination switch.

WIRING DIAGRAM

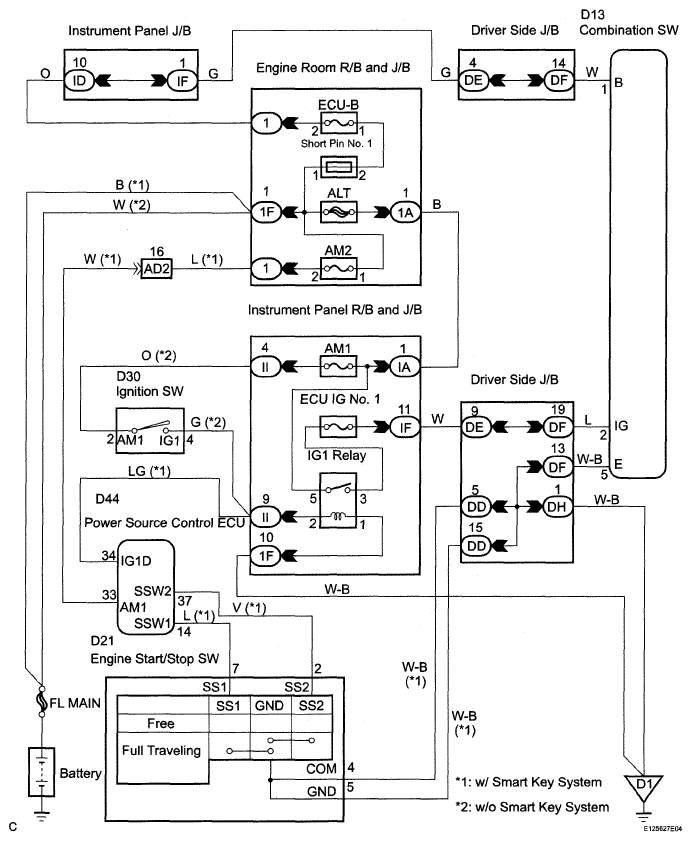

Fig 1: Combination Switch ECU Power Source Circuit Diagram
G05005837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
