Multi Display and Navigation System: Notes

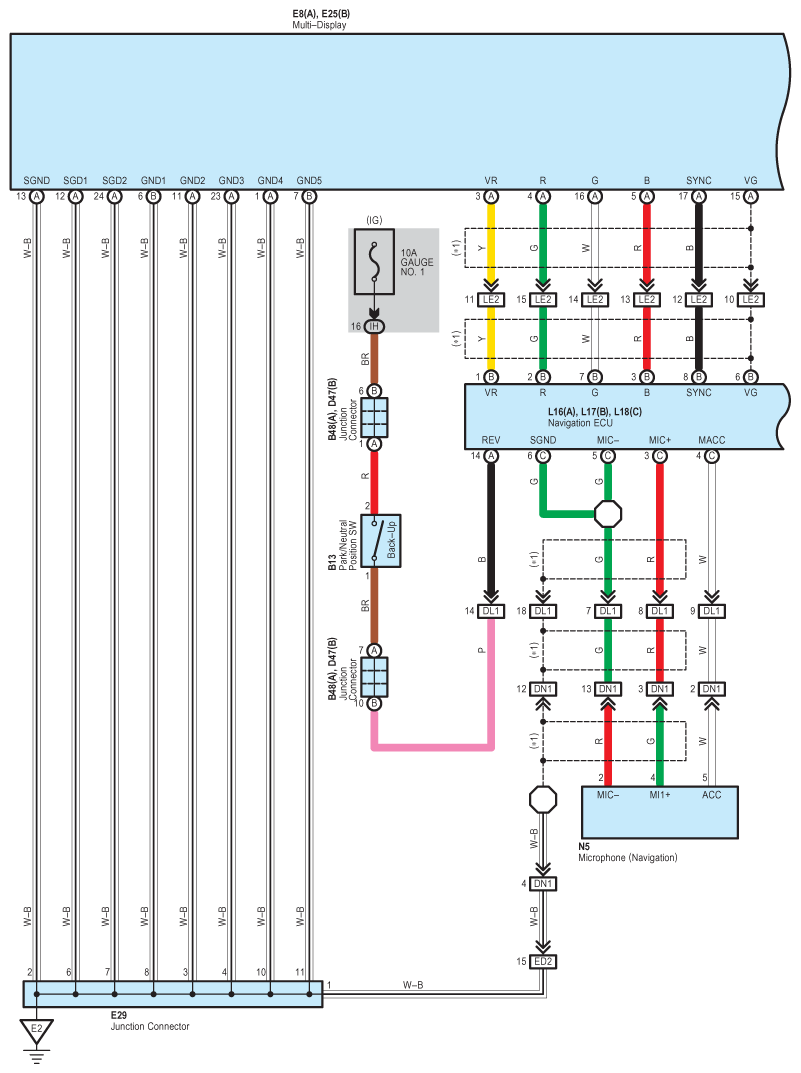

Fig 1: Multi Display And Navigation System Wiring Diagram (1 Of 6)
G08780889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

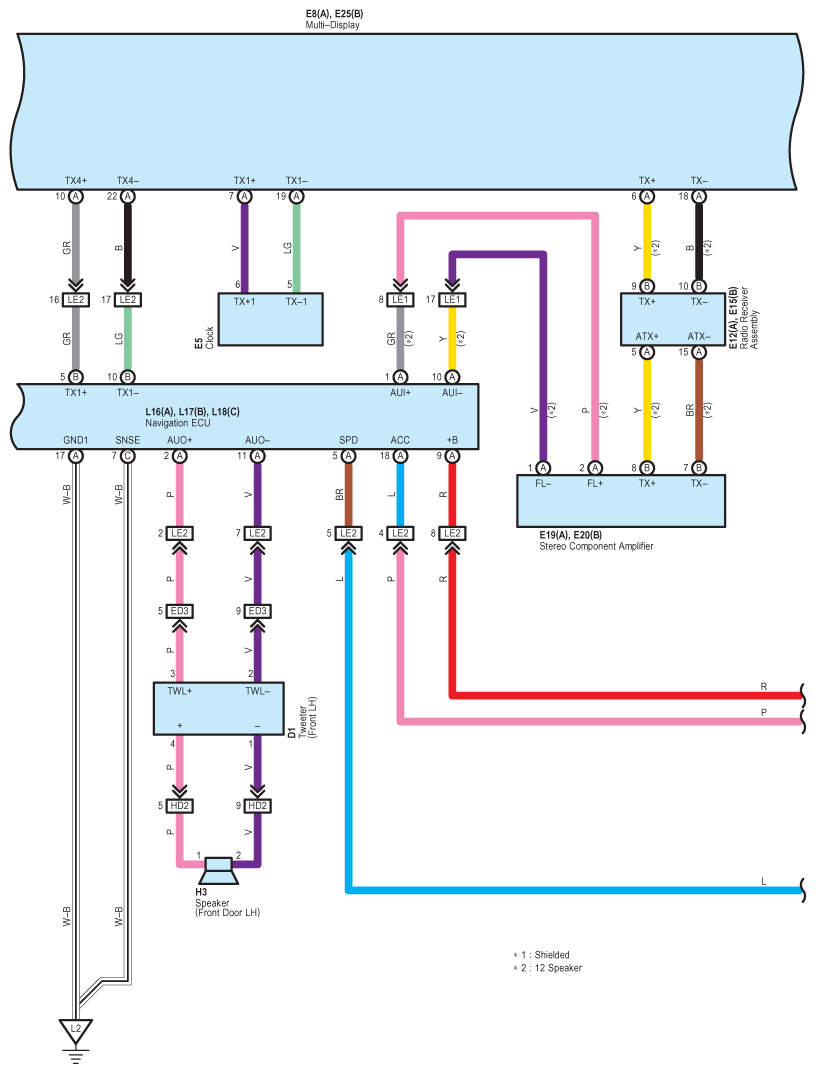

Fig 2: Multi Display And Navigation System Wiring Diagram (2 Of 6)
G08780890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

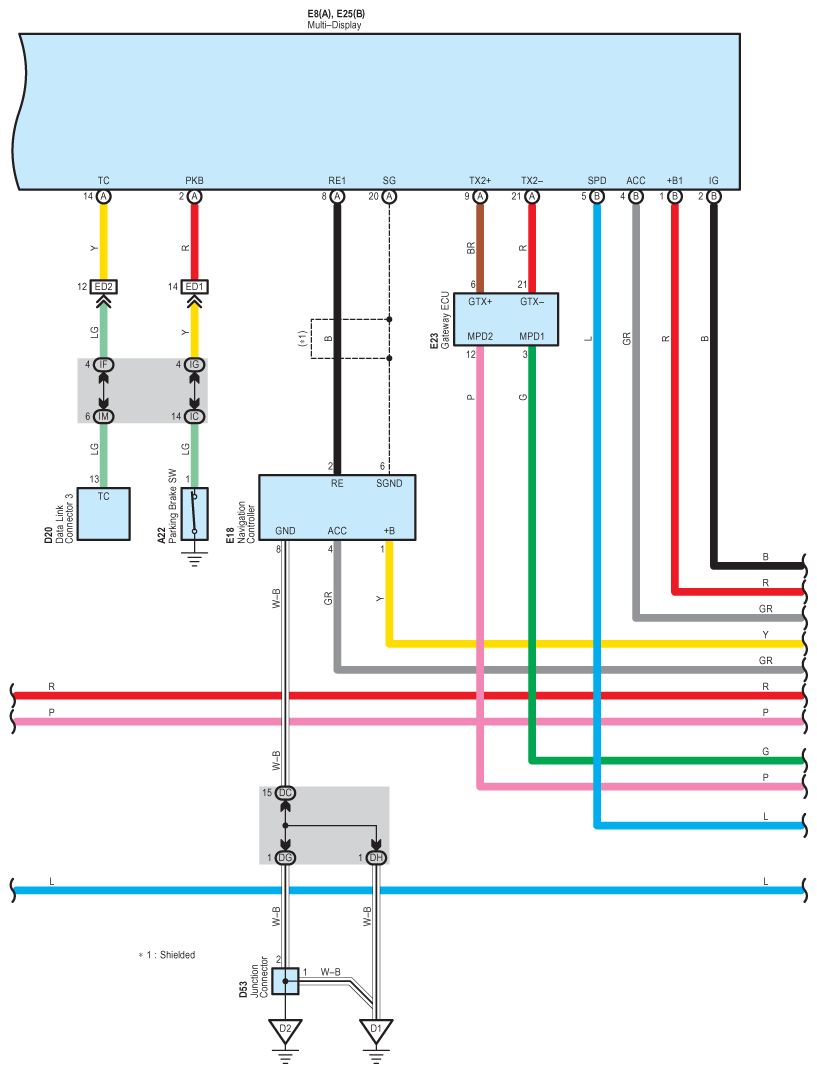

Fig 3: Multi Display And Navigation System Wiring Diagram (3 Of 6)
G08780891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

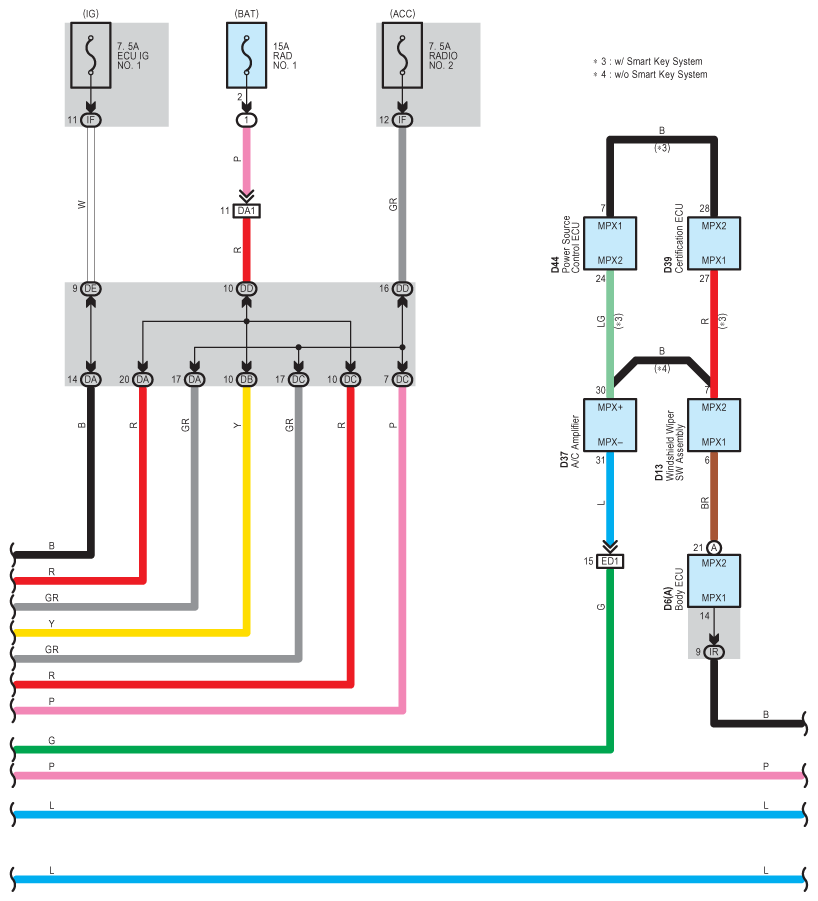

Fig 4: Multi Display And Navigation System Wiring Diagram (4 Of 6)
G08780892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

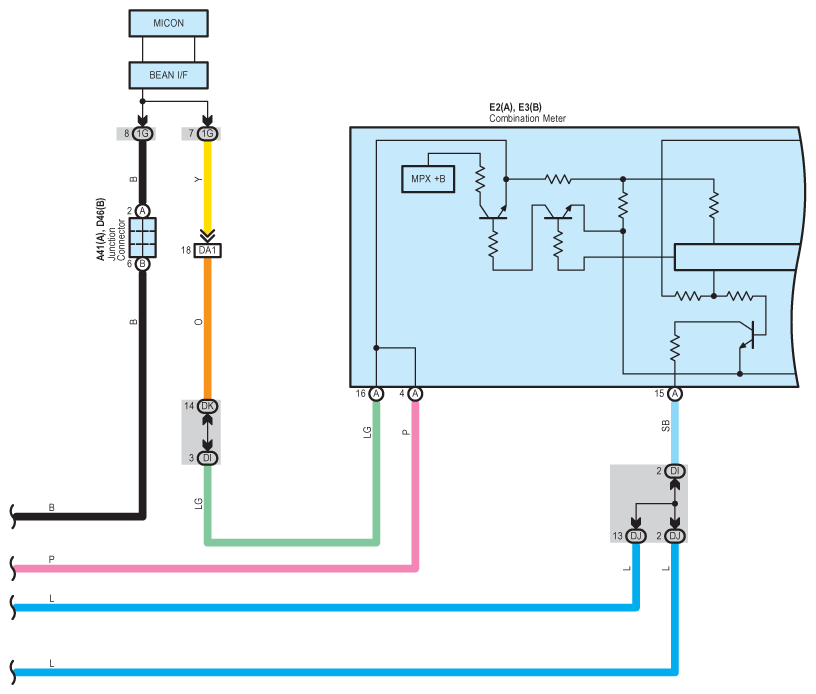

Fig 5: Multi Display And Navigation System Wiring Diagram (5 Of 6)
G08780893Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

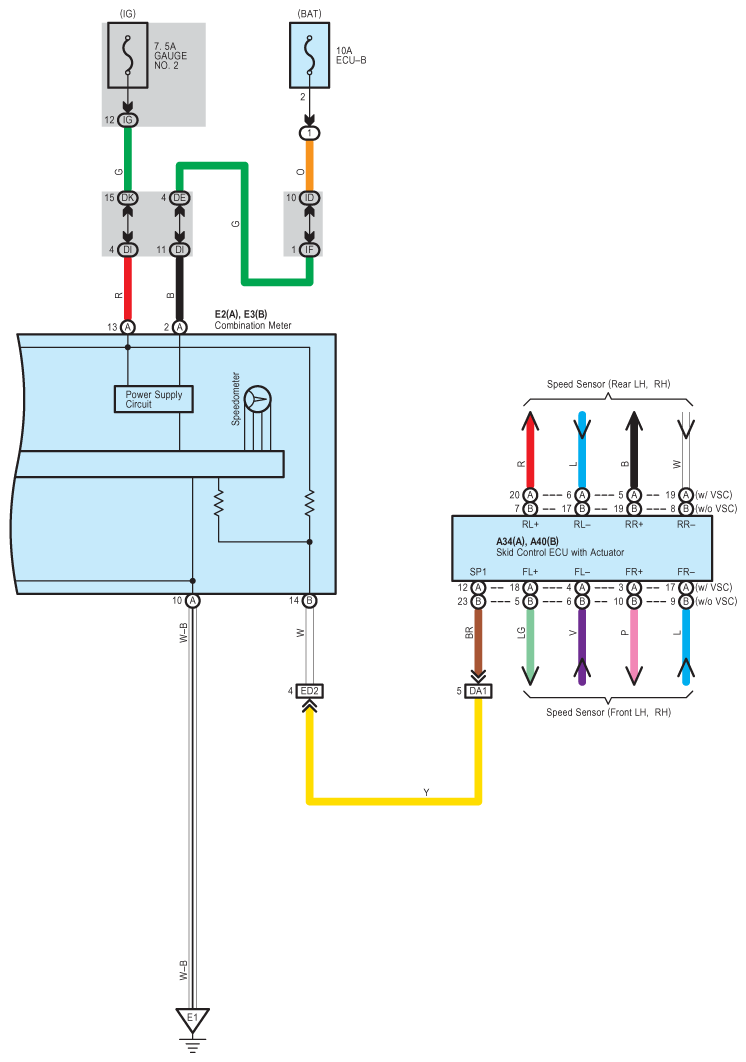

Fig 6: Multi Display And Navigation System Wiring Diagram (6 Of 6)
G08780894Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
