Multi Display without Navigation System: Notes

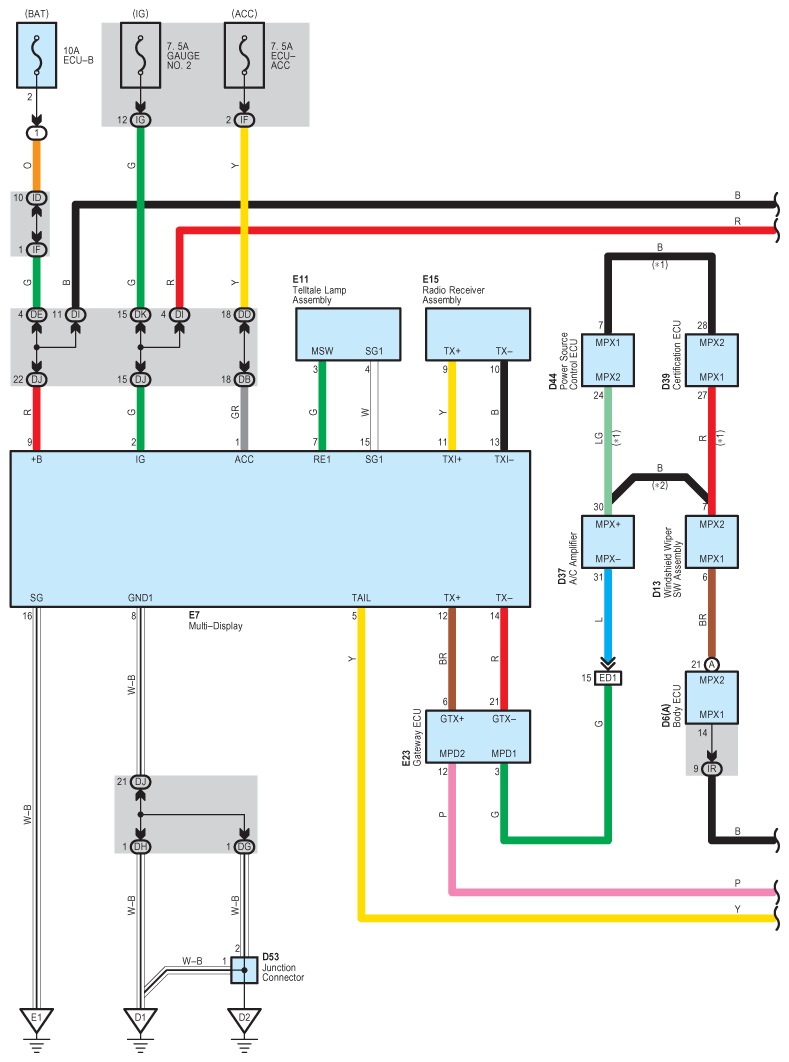

Fig 1: Multi Display System (Without Navigation) Wiring Diagram (1 Of 2)
G08780895Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

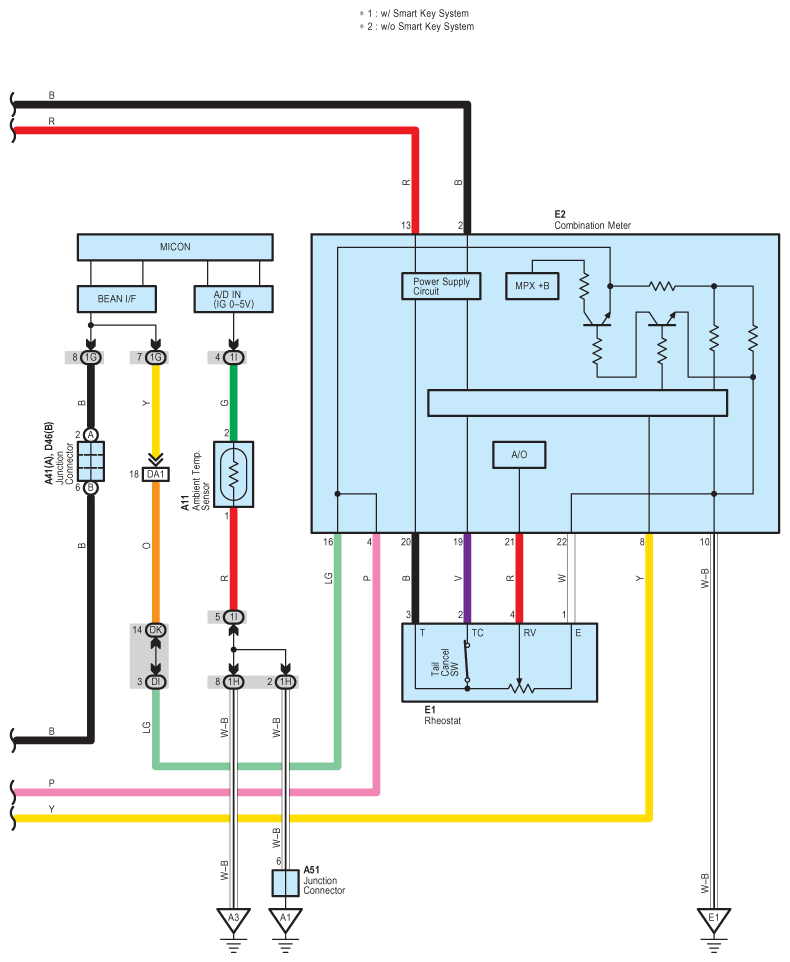

Fig 2: Multi Display System (Without Navigation) Wiring Diagram (2 Of 2)
G08780896Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
