Distance Control ECU Power Source Circuit: Wiring Diagram

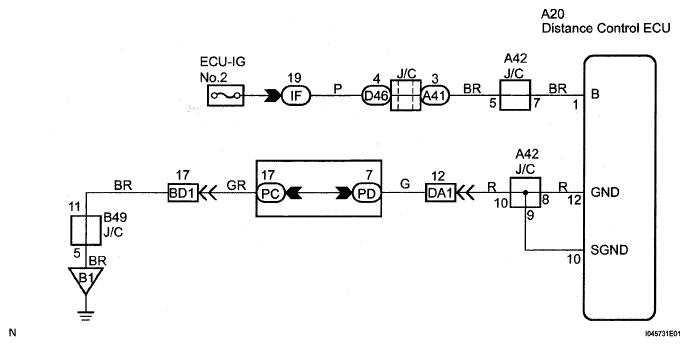

Fig 1: Distance Control ECU - Wiring Diagram
G05005615Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
