Inspection Procedure
NOTE:
The vehicle is equipped with an SRS (Supplemental Restraint System), such as airbags. Before servicing (including removal or installation of parts), be sure to read the precautionary notice for the Supplemental Restraint System (See
AIRBAG SYSTEM
).

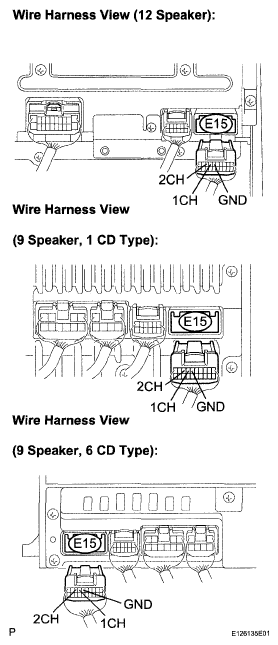

- INSPECT RADIO RECEIVER
- Disconnect the radio receiver E15 connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition 1CH - GND No switch is pushed Approx. 100 kΩ 1CH - GND SEEK+ switch: push Approx. 0 Ω 1CH - GND SEEK- switch: push Approx. 0.3 kΩ 1CH - GND VOL+ switch: push Approx. 1 kΩ 1CH - GND VOL- switch: push Approx. 3.2 kΩ 2CH - GND No switch is pushed Approx. 100 kΩ 2CH - GND MODE switch: push Approx. 0 Ω
NG: Go to step 2 below
OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

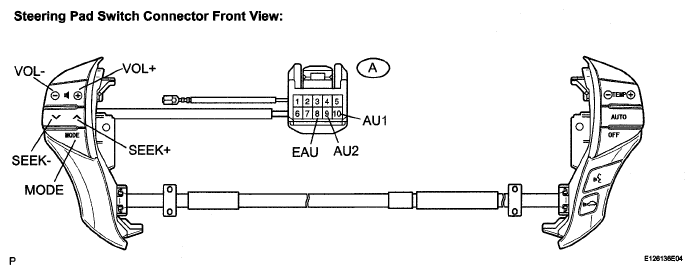

- INSPECT STEERING PAD SWITCH ASSEMBLY
- Disconnect the steering pad switch connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition AU1 - EAU No switch is pushed Approx. 100 kΩ AU1 - EAU SEEK+ switch: push Approx. 0 Ω AU1 - EAU SEEK- switch: push Approx. 0.3 kΩ AU1 - EAU VOL+ switch: push Approx. 1 kΩ AU1 - EAU VOL- switch: push Approx. 3.2 kΩ AU2 - EAU No switch is pushed Approx. 100 kΩ AU2 - EAU MODE switch: push Approx. 0 Ω
NG: REPLACE STEERING PAD SWITCH ASSEMBLY
OK: Go to Next Step
- INSPECT SPIRAL CABLE
- Disconnect the spiral cable connector.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION SPECIFIED CONDITIONTester connection Condition Specified condition EAU - EAU Always Below 1 Ω AU1 - AU1 Always Below 1 Ω AU2 - AU2 Always Below 1 Ω
OK: REPAIR OR REPLACE HARNESS OR CONNECTOR (SPIRAL CABLE - RADIO RECEIVER)
NG: REPLACE SPIRAL CABLE
