Inspection Procedure

Refer to the MULTI-DISPLAY POWER SOURCE CIRCUIT  .

If the power source circuit is operating normally, proceed to the next step.

1. Disconnect the radio receiver connectors.
2. Measure the resistance according to the value(s) in the table below.

   Standard resistance

   RADIO RECEIVER



   Tester Connection	Condition	Specified Condition
   ATX+ (E12-5) - ATX-(E12-15) ((1))	Always	60 to 80 Ω
   TX+ (E15-9) - TX-(E15-10)	Always	60 to 80 Ω
   (1) for 12 Speaker System

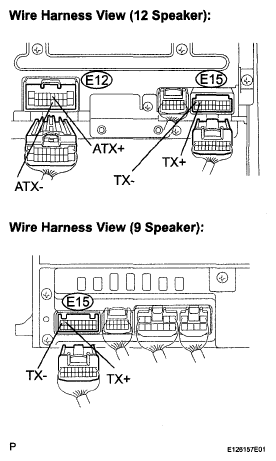

Fig 1: Identifying Radio Receiver E12 And E15 Connectors Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE RADIO RECEIVER

OK: Go to Next Step

1. Enter the diagnostic mode.
2. Press the "LAN Mon" switch to change to "LAN Monitor" mode.
3. Identify the component which has stored this code.

   Component Table:

   COMPONENT CHART



   Display	Component
   AUDIO H/U	Radio receiver
   DSP-AMP	Stereo component amplifier
   G/W	Gateway ECU
   NAVI	Navigation ECU
   CLOCK	Clock assembly

   Fig 2: Identifying LAN Monitor Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   "NAVI" is the component which has stored this code in the example shown in Fig 2.

HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .

1. Referring to Fig 3, check the AVC-LAN circuit between the multi-display and the component which has stored this code.
   1. Disconnect all connectors between the multi-display and the component which has stored this code.
   2. Check for an open or short in the AVC-LAN circuit between the multi-display and the component which has stored this code.

      OK:

      There is no open or short circuit.

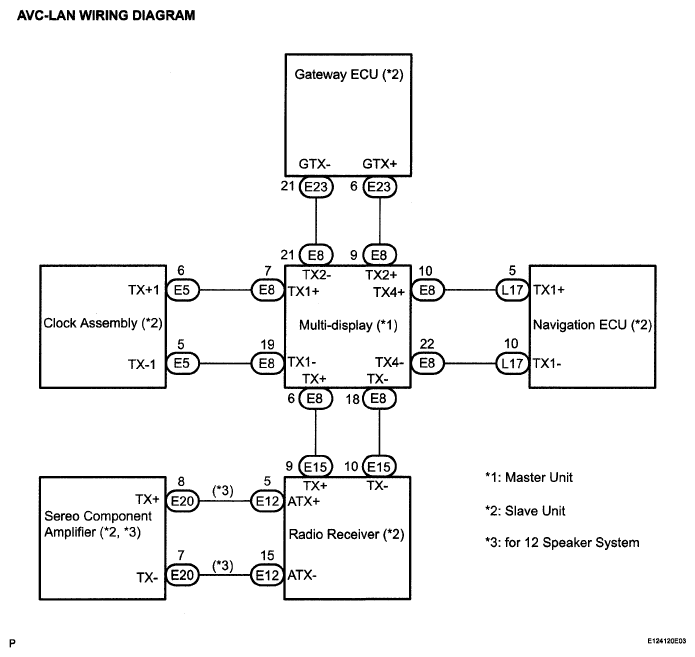

Fig 3: AVC - LAN Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

HINT:

For details of the connectors, refer to "TERMINALS OF ECU " .

1. Referring to Fig 4, check the AVC-LAN circuit between the multi-display and the radio receiver.
   1. Disconnect all connectors between the multi-display and the radio receiver.
   2. Check for an open or short in the AVC-LAN circuit between the multi-display and the radio receiver.

      OK:

      There is no open or short circuit.

Fig 4: AVC-LAN Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Replace the multi-display with a normal one and check if the same problem occurs again.

   OK:

   Same problem does not occur.

NG: REPLACE COMPONENT WHICH HAS STORED THIS CODE

OK: END
