Rear Power Window Switch RH Circuit: Wiring Diagram

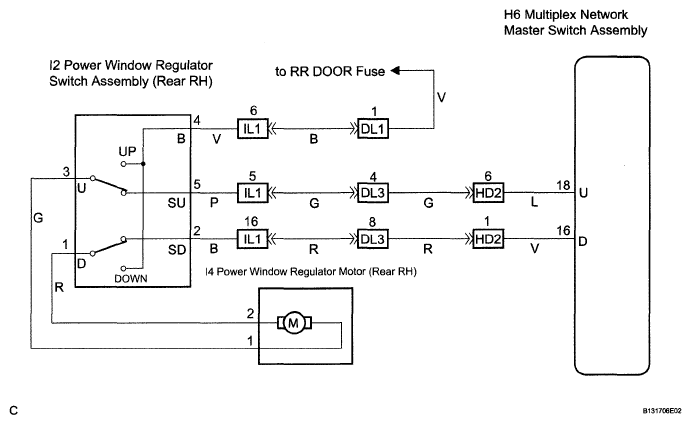

Fig 1: Rear Power Window Switch RH Circuit - Wiring Diagram
G05006560Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
