Inspection Procedure

  1. CHECK OPERATION OF ENGINE CRANKING
    1. When pushing the engine switch to start the engine, check if the starter motor starts.

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN  PROBLEM SYMPTOMS TABLE

    NG: Go to Next Step

  2. CHECK DTC FOR PUSH BUTTON START
    1. Check the DTC for push button start (See DTC CHECK / CLEAR ).
      CODE SPECIFICATION

      A Normal System Code
      B Malfunction Code

    B: REPLACE PUSH BUTTON START SYSTEM

    A: Go to Next Step

  3. READ VALUE OF INTELLIGENT TESTER (STA SIGNAL)
    1. Connect the intelligent tester to the DLC3.
    2. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG. Read the values.

      Standard

      STARTER SIGANAL VALUES

      STARTER SIG Ignition Switch Position
      OFF ON
      ON START

    OK:  Go to step  6

    NG: Go to Next Step

  4. INSPECT ECM (STAR AND STSW VOLTAGE)
    1. Measure the voltage between the terminals of the ECM connectors, while cranking the engine.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connection Specified Condition
      STAR (B46-8) - E1 (B47-1) 9 to 14 V
      STSW (B47-12) - E1 (B47-1) 9 to 14 V

      Result

      RESULT CHART

      Terminal STAR Terminal STSW Proceed to
      9 to 14 V 9 to 14 V A
      0 V 9 to 14 V B
      0 V 0 V C
    Fig 1: Identifying ECM Connector Terminals
    G04996515Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    B: REPLACE ECM

    C:  Go to step  10

    A: Go to Next Step

  5. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY
    1. Inspect the Park/Neutral Position (PNP) switch.
      1. Disconnect the PNP switch connector.
      2. Measure the resistance when the transmission gear selector lever is moved to each position.

        Standard resistance

        TESTER CONNECTION SPECIFIED CONDITION

        Gear Selector Lever Positions Tester Connections Specified Conditions
        P 2 - 6, 4 - 5 Below 1 Ω
        R 1 - 2 Below 1 Ω
        N 2 - 9, 4 - 5 Below 1 Ω
        D 2 - 7 Below 1 Ω
        2 2 - 3 Below 1 Ω
        L 2 - 8 Below 1 Ω
      3. Reconnect the PNP switch connector.
    Fig 2: Identifying PNP Switch Connector Terminals
    G04996516Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE PARK/NEUTRAL POSITION SWITCH ASSEMBLY

    OK: CHECK AND REPLACE HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ECM)

  6. INSPECT STARTER RELAY
    1. Remove the ST relay and ST CUT relay from the engine room R/B and J/B.
    2. Measure the ST relay resistance.

      Standard

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connections Specified Conditions
      3 - 5 10 kΩ or higher
      3 - 5 Below 1 Ω (When battery voltage apply to terminals 1 and 2)
    3. Reinstall the ST relay and ST CUT relay.
    Fig 3: Identifying Starter Relay Connector Terminals
    G04942983Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE STARTER RELAY

    OK: Go to Next Step

  7. CHECK HARNESS AND CONNECTOR (PARK/NEUTRAL POSITION SWITCH - ST RELAY)
    1. Check the harness and connector between the park/neutral position switch, ST relay and ST CUT relay.
      1. Disconnect the park/neutral position switch connector.
      2. Remove the ST relay and ST CUT relay from the engine room R/B and J/B.
      3. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connections Specified Conditions
        Park/neutral position switch (B13-5) - Engine room R/B and J/B (ST relay terminal 1) Below 1 Ω
        Park/neutral position switch (B13-4) - Engine room R/B and J/B (ST CUT relay terminal 3) Below 1 Ω

        Standard resistance (Check for short)

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connections Specified Conditions
        Park/neutral position switch (B13-5) or Engine room R/B and J/B (ST relay terminal 1) - Body ground 10 kΩ or higher
        Park/neutral position switch (B13-4) or Engine room R/B and J/B (ST CUT relay terminal 3) - Body ground 10 kΩ or higher
      4. Reconnect the park/neutral position switch connector.
    2. Check the harness and connector between the ST relay, ST CUT relay and body ground.
      1. Measure the resistance according to the value(s) in the table below.

        Standard resistance (Check for open)

        TESTER CONNECTION SPECIFIED CONDITION

        Tester Connections Specified Conditions
        Engine room R/B and J/B (ST relay terminal 2) - Body ground Below 1 Ω
        Engine room R/B and J/B (ST CUT relay terminal 2) - Body ground Below 1 Ω
      2. Reinstall the ST relay and ST CUT relay.

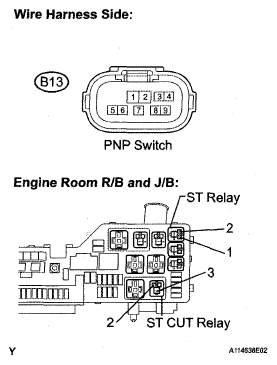

    Fig 4: Identifying ST Relay And ST Cut Relay Location
    G04996518Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  8. INSPECT ENGINE ROOM RELAY BLOCK (ST RELAY VOLTAGE)
    1. Remove the ST relay from the engine room R/B and J/B.
    2. Measure the voltage between the terminal of the engine room R/B and J/B and body ground.

      Standard voltage

      TESTER CONNECTION SPECIFIED CONDITION

      Tester Connections Specified Conditions
      Engine room R/B and J/B (ST relay terminal 5) - Body ground 9 to 14 V
      1. Reinstall the ST relay.
    Fig 5: Identifying ST Relay Location
    G04996519Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: CHECK AND REPLACE HARNESS AND CONNECTOR (ST RELAY - BATTERY)

    OK: Go to Next Step

  9. INSPECT STARTER ASSEMBLY
    1. Inspect the starter assembly (See INSPECTION ).

    NG: REPAIR OR REPLACE STARTER ASSEMBLY

    OK: CHECK AND REPLACE HARNESS AND CONNECTOR (ST RELAY - STARTER, STARTER-BATTERY)

  10. CHECK FUSE (ST)
    1. Check for continuity in the ST fuse.

      Standard:

      Continuity

    Fig 6: Identifying ST Fuse And FL Block
    G04996520Courtesy of TOYOTA MOTOR SALES, U.S.A., INC.

    NG: REPLACE FL BLOCK

    OK: Go to Next Step

  11. INSPECT PUSH START SWITCH
    1. Inspect the push start switch (See INSPECTION ).

    NG: REPLACE PUSH START SWITCH

    OK: REPLACE POWER SOURCE CONTROL ECU

scientia non olet · About LEMON Manuals
