DTC B1780: Front Occupant Classification Sensor LH Circuit Malfunction (2006/10-): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

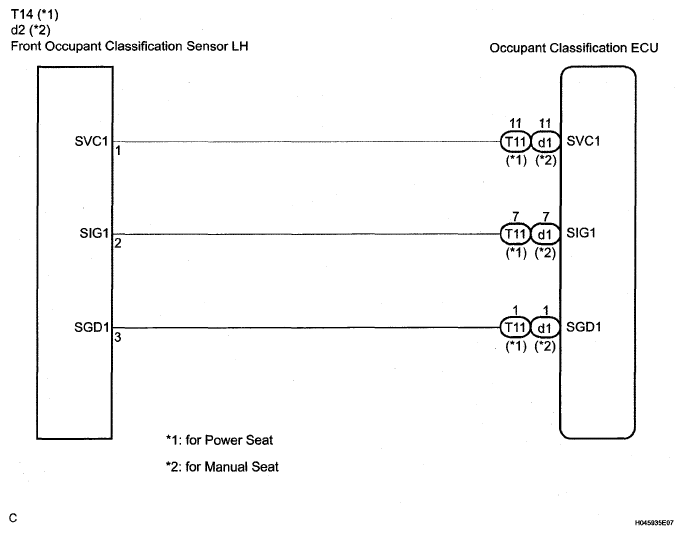

Fig 1: Identifying Front Occupant Classification Sensor LH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
