DTC B1783: Rear Occupant Classification Sensor RH Circuit Malfunction (2006/03-2006/10): Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

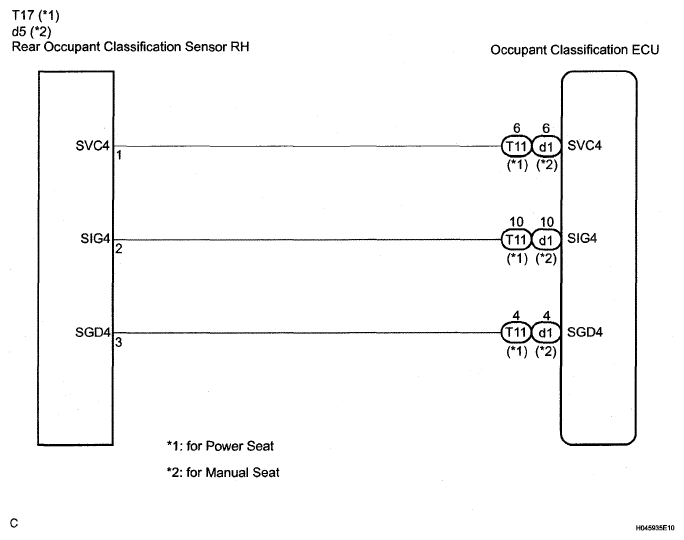

Fig 1: Identifying Rear Occupant Classification Sensor RH Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
