DTC B1794: Open in Occupant Classification ECU Battery Positive Line (2006/10-): Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

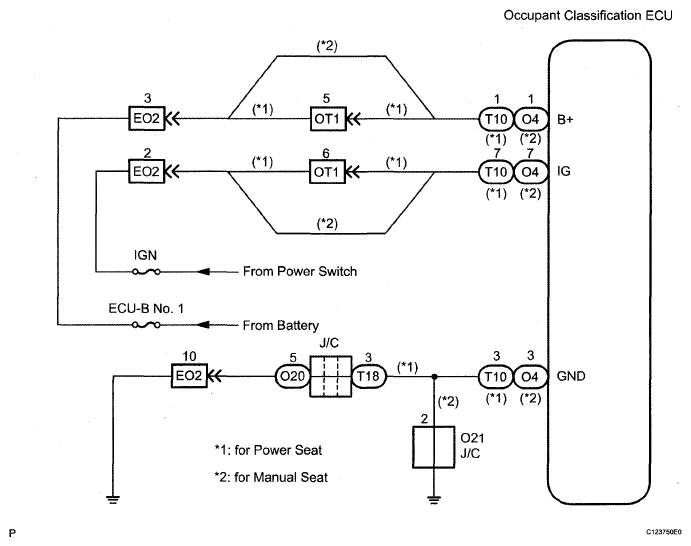

Fig 1: Identifying Occupant Classification ECU Battery Positive Line Wiring Diagram
G05013199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
