Parts Location (2006/10-)

WARNING: This page is about a different variant/trim than selected.

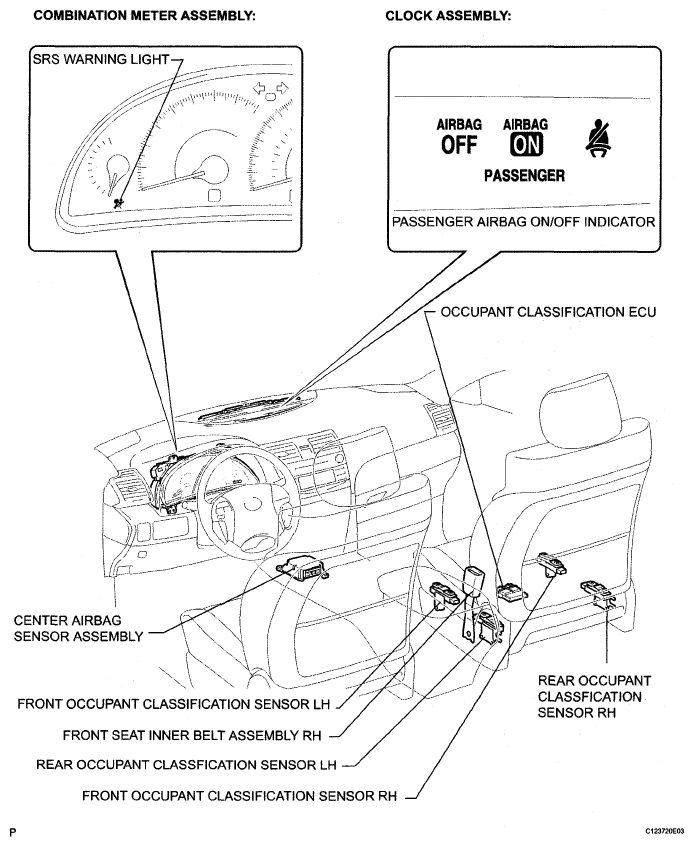

Fig 1: Identifying Occupant Classification System Components (2006/10-)
G05013096Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
