VVT Sensor: Installation

1. Apply a light coat of engine oil to the O-ring on the sensor.
2. Install the sensor with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

3. Connect the sensor connector.

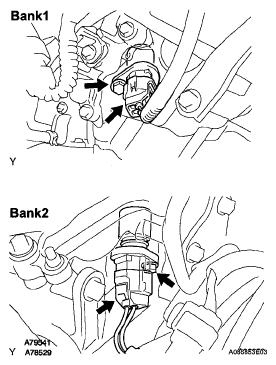

   Fig 1: Locating VVT Sensor (BANK 1 And BANK 2)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

See INSTALLATION
