Cruise Control Switch: Service and Repair

Cruise Control Main Switch:

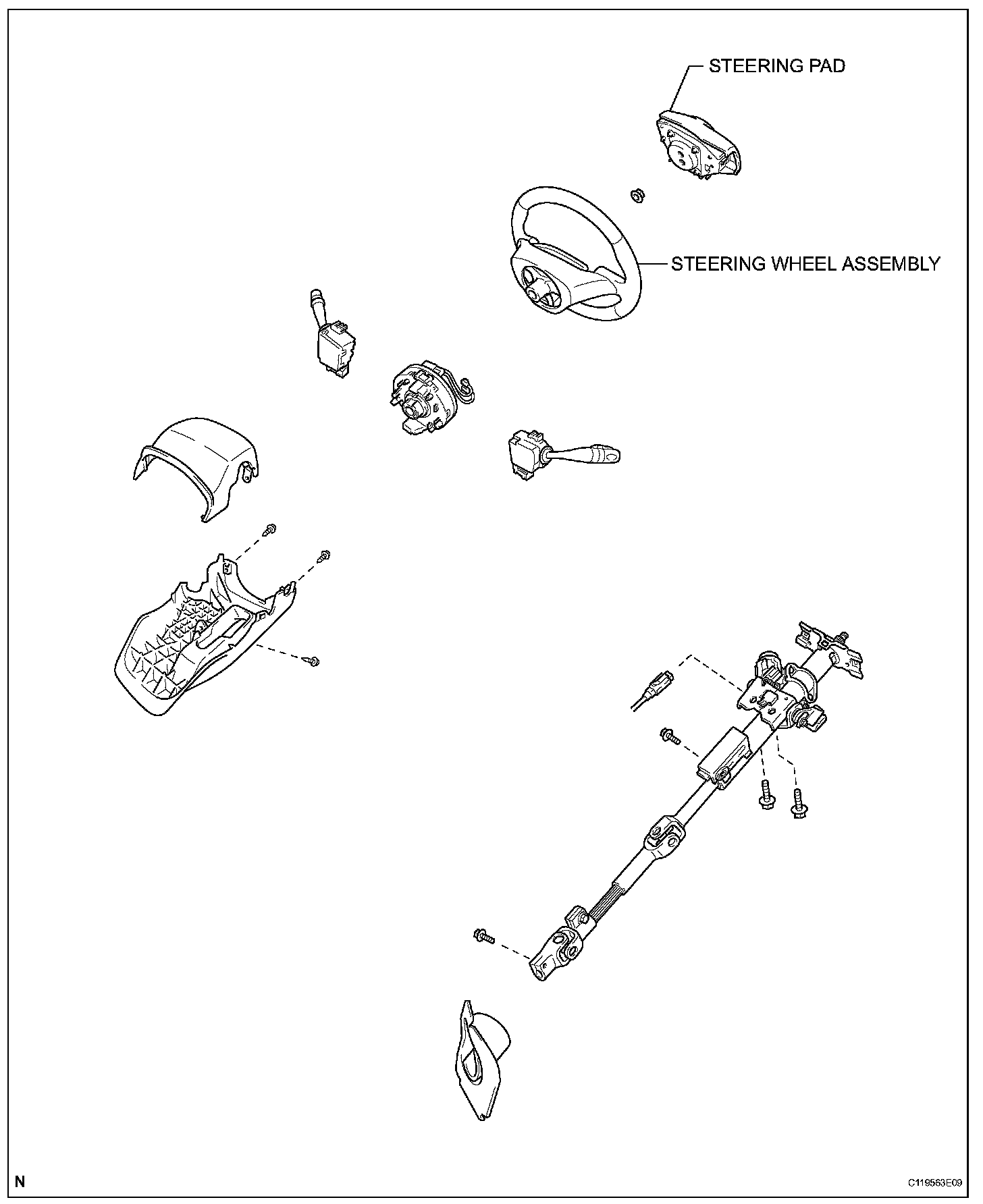

CRUISE CONTROL MAIN SWITCH

REMOVAL

1. DISCONNECT BATTERY NEGATIVE TERMINAL
2. INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
3. REMOVE STEERING PAD
4. REMOVE STEERING WHEEL ASSEMBLY
5. REMOVE CRUISE CONTROL MAIN SWITCH ASSEMBLY




a. Remove the 2 screws and cruise control main switch assembly.

INSTALLATION

1. CENTER SPIRAL CABLE
2. INSTALL STEERING WHEEL ASSEMBLY
3. INSPECT STEERING WHEEL CENTER POINT
4. INSPECT STEERING PAD
5. INSTALL STEERING PAD
6. INSPECT SRS WARNING LIGHT
