Problem Symptoms Table
WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

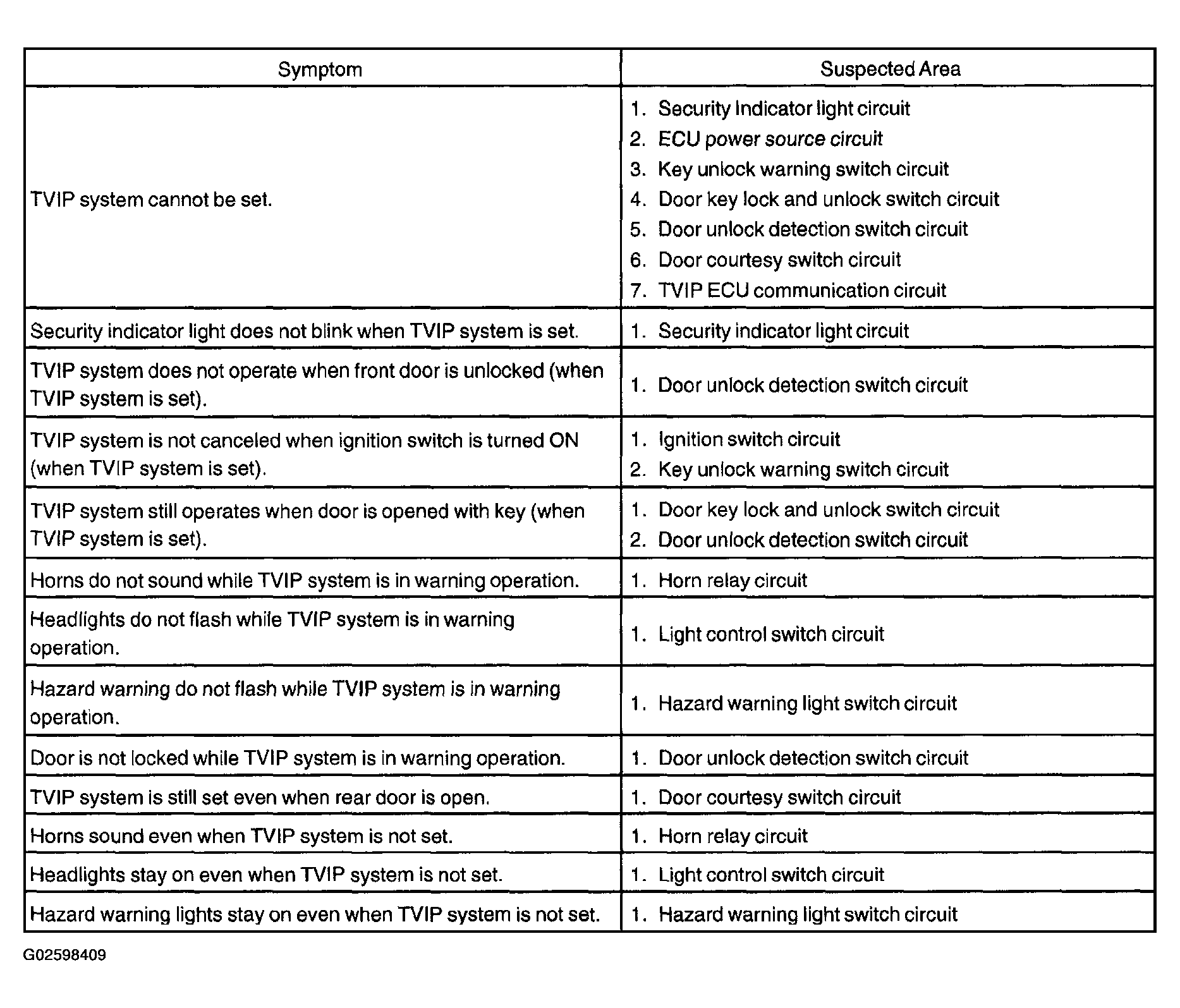

Proceed to the reference page shown in the table below for each malfunction symptom and troubleshoot each circuit.
HINT:
Troubleshooting of the TVIP system is based on the premise that the door lock control system and wireless door lock control system is operating normally. Accordingly, before troubleshooting the TVIP system, first make certain that the door lock control system and wireless door lock control system is operating normally.
