Power Point Socket ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota Corolla and 2005 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE PARKING BRAKE HOLE COVER SUB-ASSY (See REPLACEMENT )
REMOVE SHIFT LEVER KNOB SUB-ASSY (WT TRANSAXLE) (See REPLACEMENT )
REMOVE CONSOLE PANEL UPPER (See REPLACEMENT )
REMOVE CONSOLE BOX CARPET
REMOVE CONSOLE BOX SUB-ASSY REAR (MAT TRANSAXLE) (See REPLACEMENT )
REMOVE CONSOLE BOX SUB-ASSY REAR (A/T TRANSAXLE) (See REPLACEMENT )
REMOVE POWER POINT SOCKET ASSY
1. Turn the socket in the circumference direction as shown the illustration, disengage the claw between the socket and the power outlet socket cover RR, and push out the socket to the room side.

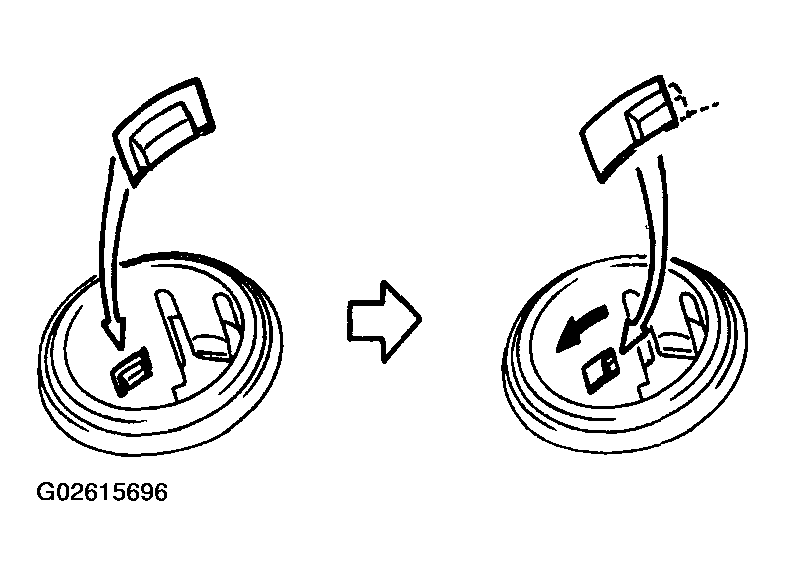

  Fig 1: Removing Power Point Socket ASSY
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Align the socket with the notch on the power outlet socket cover RR, remove the power point socket assy RR to the room side.
INSTALL POWER POINT SOCKET ASSY
1. Align the socket with the notch on the power outlet socket cover RR, push the power point socket assy RR into as hard as possible and install it.
