Steering Angle Sensor Communication Stop Mode: Wiring Diagram

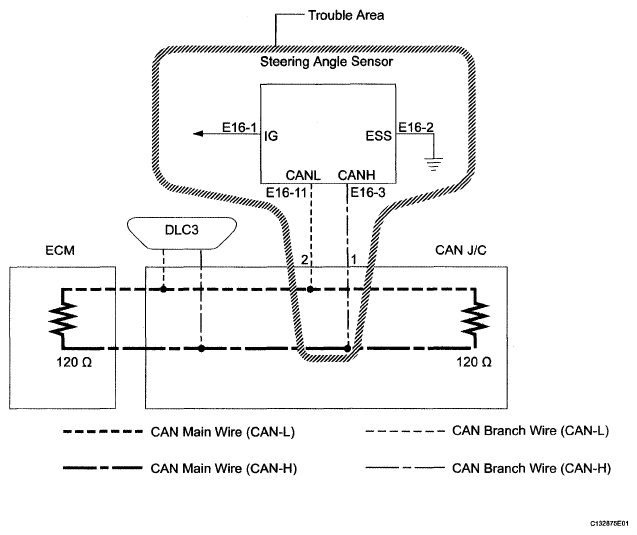

Fig 1: Identifying Steering Angle Sensor Communication Stop Mode Wiring Diagram
G05115255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
