Steering Column Assembly: Components

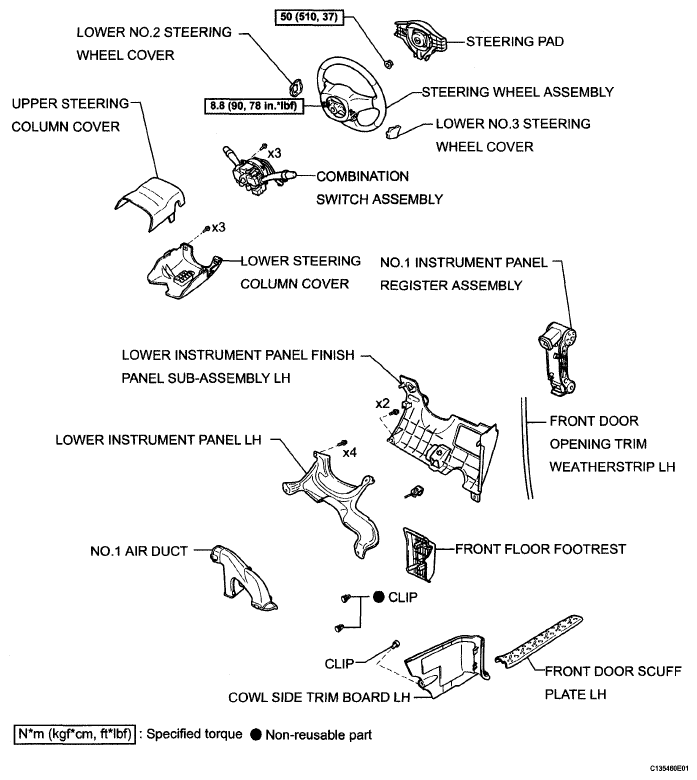

Fig 1: Steering Column Assembly Replacement Components With Torque Specifications (1 Of 3)
G05112562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

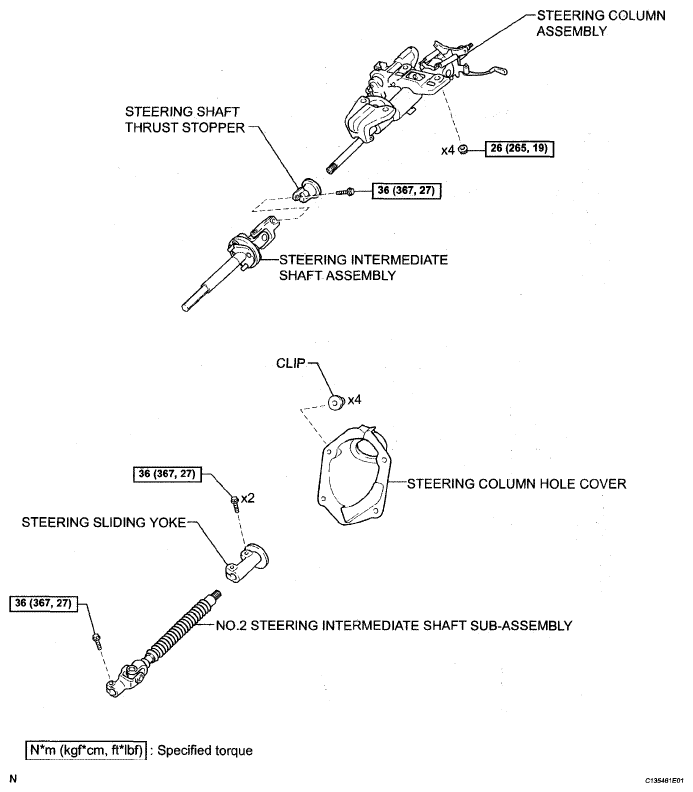

Fig 2: Steering Column Assembly Replacement Components With Torque Specifications (2 Of 3)
G05112563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

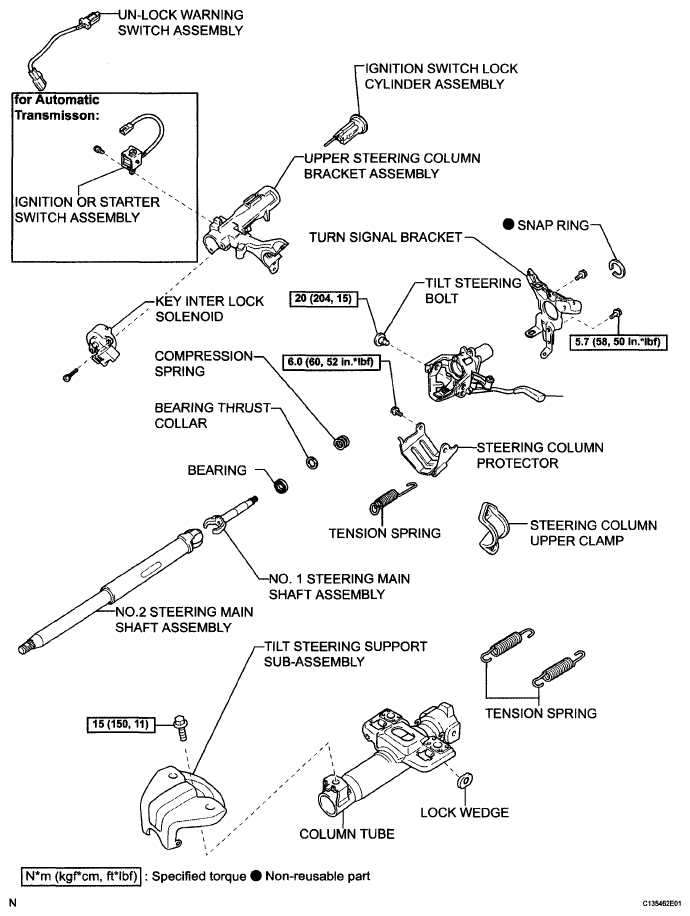

Fig 3: Steering Column Assembly Replacement Components With Torque Specifications (3 Of 3)
G05112564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
